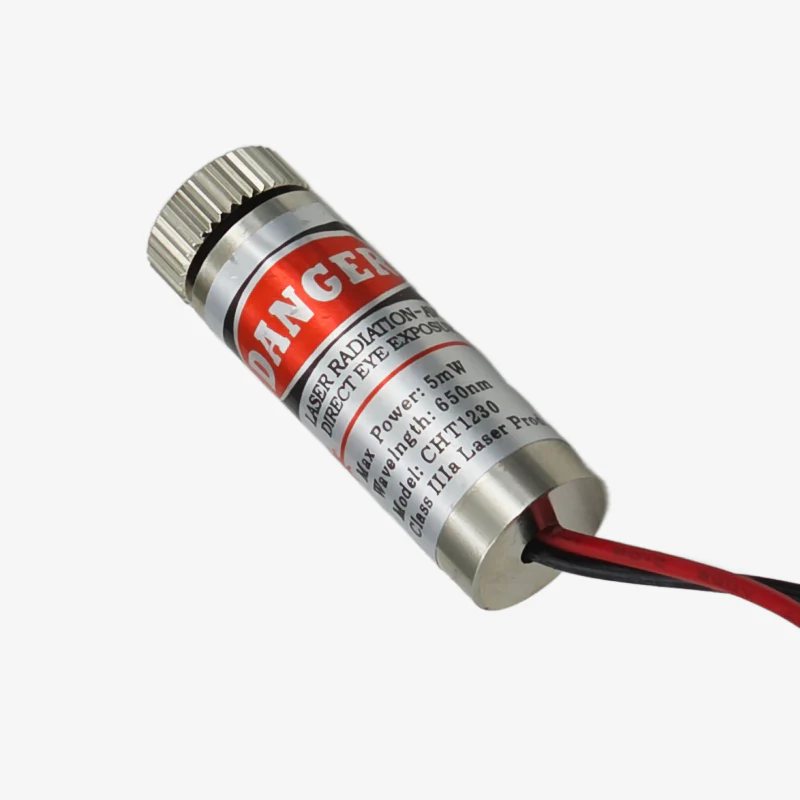

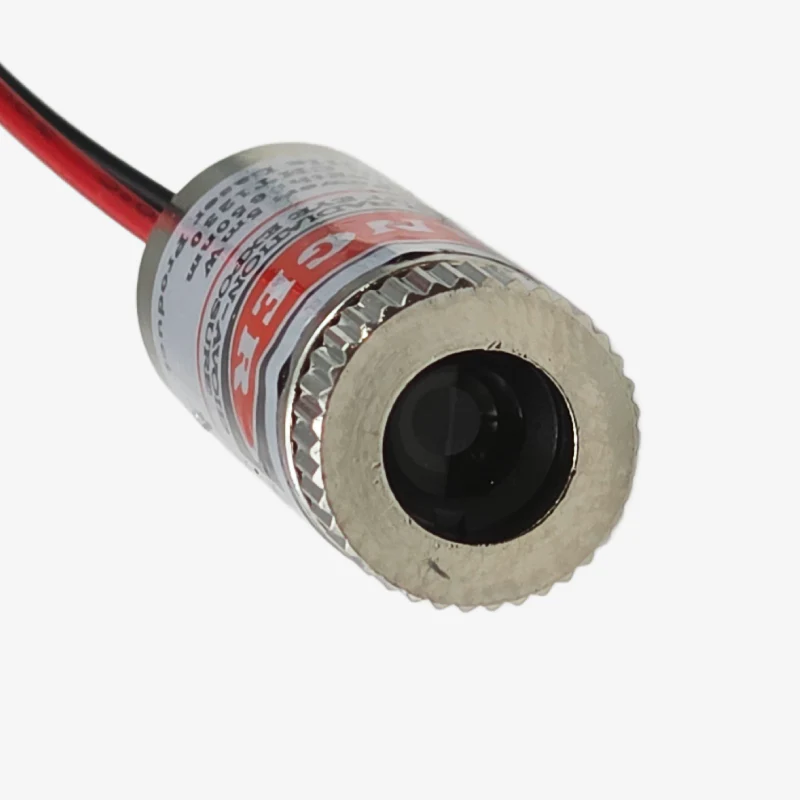

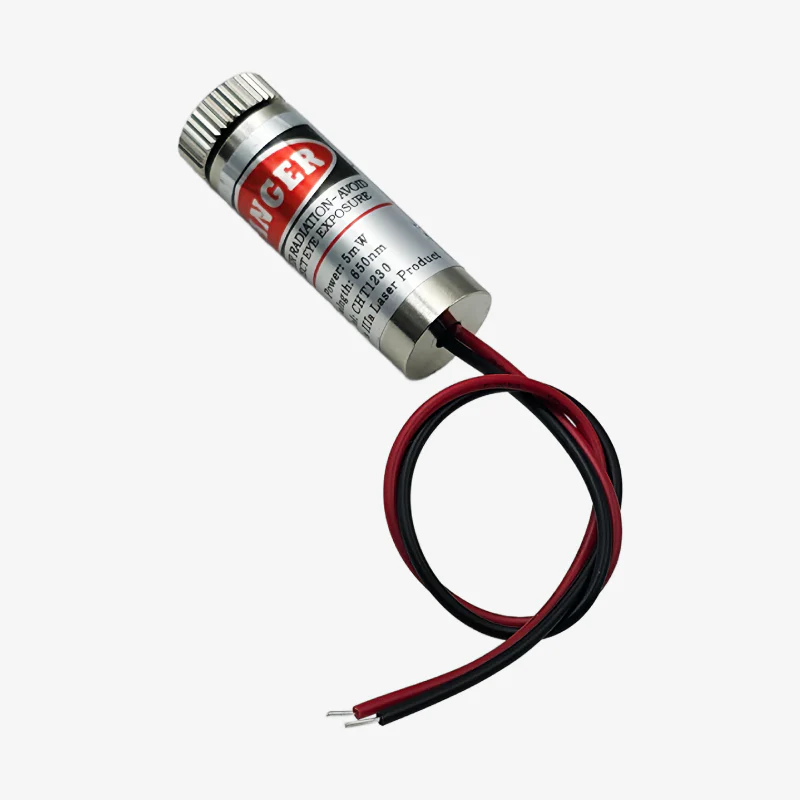

The CHT1230 is a 12mm 5mW red laser module designed for precise alignment, measurement, and industrial positioning applications. It emits a 650nm red laser in a focused point beam, making it ideal for targeting, marking, and optical alignment systems. The module operates on a low voltage range of 3V - 5V DC, ensuring easy integration with Arduino, Raspberry Pi, and other microcontrollers for DIY and industrial projects. The adjustable spot size feature allows fine-tuning of the laser focus for different applications.

Features of CHT1230 12mm 650nm 5mW Red Point Laser Module

1. 5mW red laser with a well-defined point projection.
2. 12mm durable metal housing for stability and easy mounting.
3. Adjustable spot size for precision applications.
4. Operates on 3V - 5V DC, ensuring energy efficiency.
5. Pre-wired leads for quick and hassle-free connections.
6. Ideal for industrial alignment, targeting, and DIY projects.
7. Stable performance with low power consumption.

Specifications of CHT1230 12mm 650nm Red Point Laser Module

• Laser Wavelength: 650nm (Red)
• Output Power: 5mW
• Operating Voltage: 3V - 5V DC
• Operating Current: ≤40mA
• Lens Type: Optical glass lens
• Beam Shape: Point
• Housing Diameter: 12mm
• Adjustable Spot Size: Yes
• Operating Temperature: -10°C to 50°C

Package Includes

1 × CHT1230 12mm 650nm 5mW Point Laser Module with Adjustable Spot Size - Red
