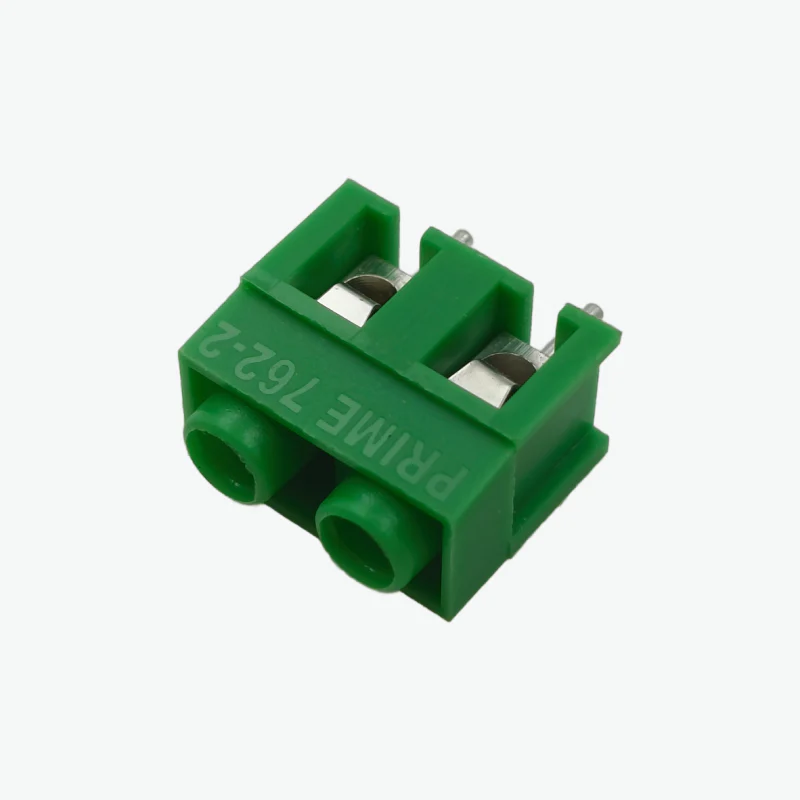

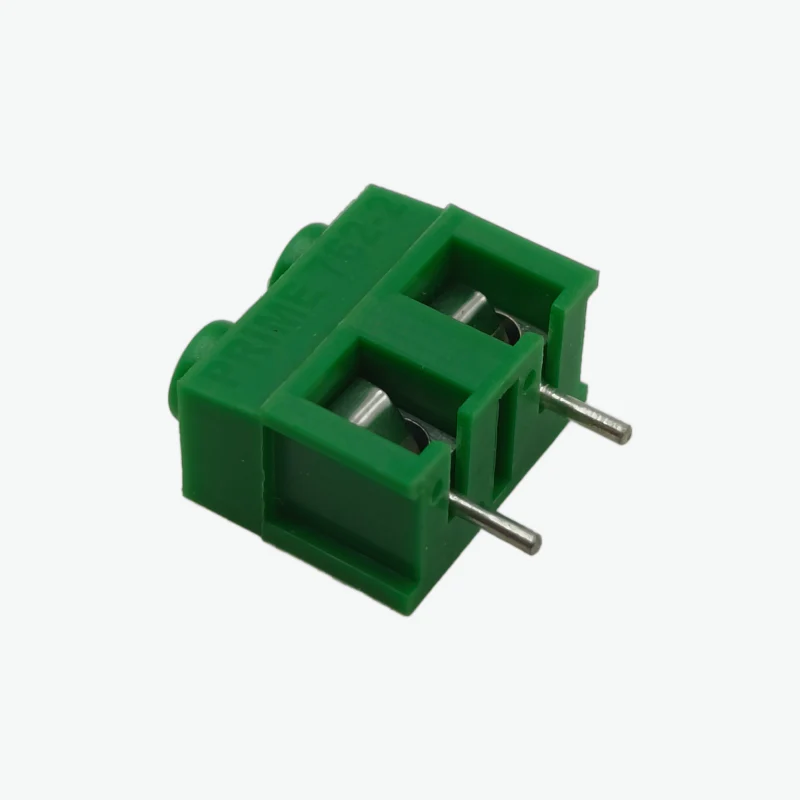

The 2 Pin 7.62mm Pitch PCB Mount Terminal Block Connector is a high-quality screw-type connector designed for secure and stable wire-to-board connections in high-voltage and power electronic applications. With a wider 7.62mm pitch, it provides excellent insulation distance and current-handling capability, making it ideal for high-voltage circuits, power supplies, and industrial control systems. The screw clamp mechanism ensures a tight and reusable wire connection for reliable performance.

Features:

1.  2-pin screw terminal block for safe and strong wire connections
2. 7.62mm pitch for high-voltage and high-current applications
3. Screw-type clamping ensures firm and reusable connections
4. Wide spacing enhances insulation and safety on PCBs
5. Ideal for power modules, industrial control systems, and converters
6. Durable housing suitable for high-power circuits
7. RoHS compliant and flame-retardant construction

Specifications:

• Model: 2 Pin 7.62mm Pitch Terminal Block Connector
• Type: Screw Terminal Block (PCB Mount)
• Number of Pins: 2
• Screw Size: 3mm
• Pitch: 7.62mm
• Rated Voltage: Up to 600V
• Rated Current: Up to 10A
• Wire Size Compatibility: 22–12 AWG (approx.)
• Mounting Type: Through Hole (PCB Mount)
• Body Material: Flame-retardant Plastic
• Operating Temperature Range: -40°C to +105°C

Package Includes:
1 × 2 Pin PCB Mount Terminal Block Connector(Screw Type) - 7.62mm Pitch
