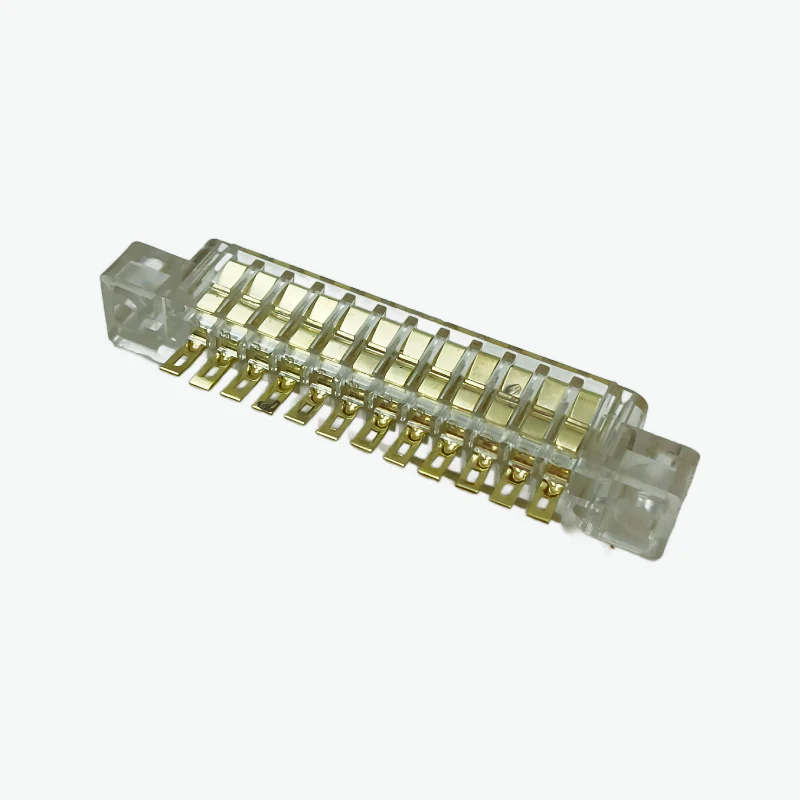

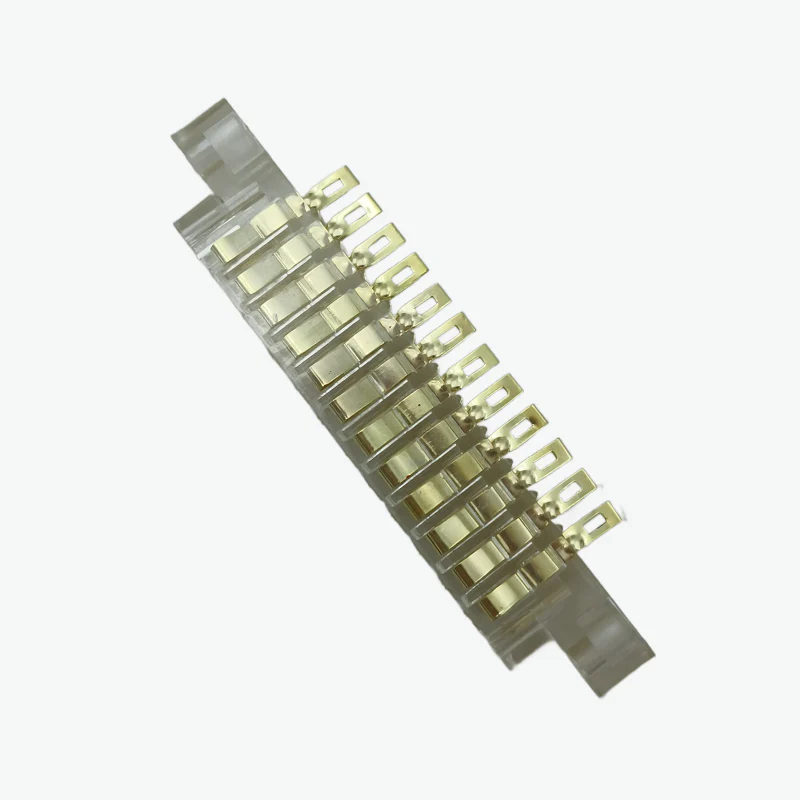

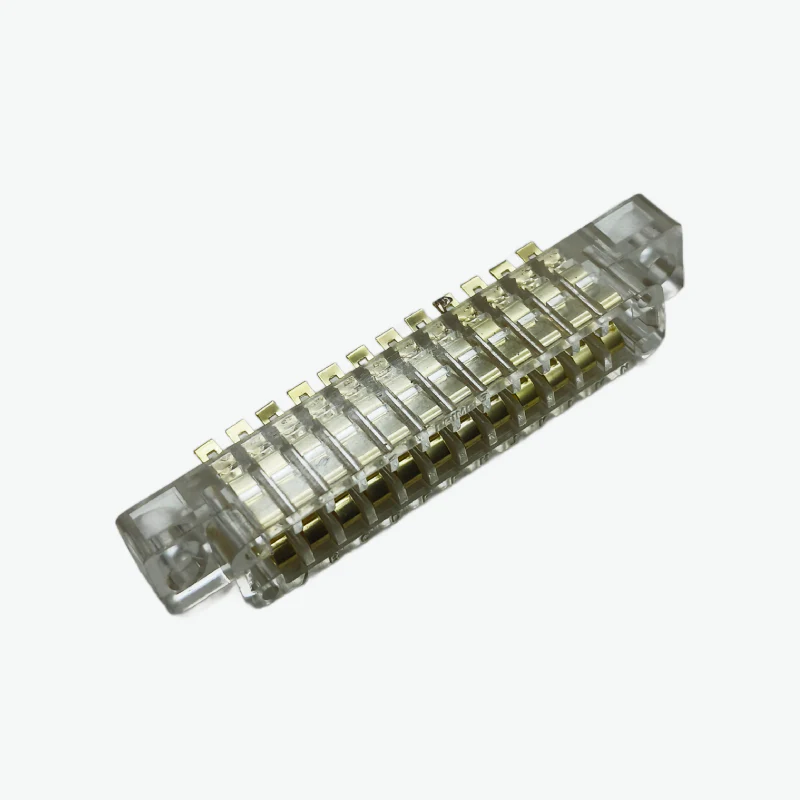

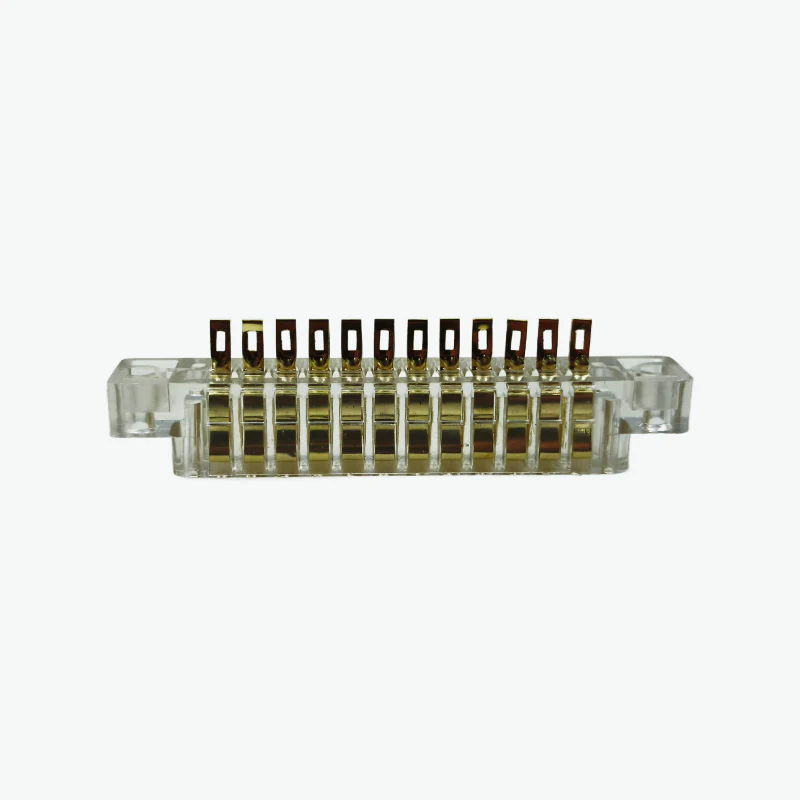

The 12 Contact Card Edge Connector is a reliable and high-quality interface solution designed for secure PCB-to-board connections. Built with durable insulating materials and precision contacts, it provides excellent conductivity and long-term performance for electronic, control, and industrial systems. Its 3.96mm pitch and bellows-type contact structure ensure consistent electrical contact and easy integration into standard PCB layouts.

Features:

1. 12 contacts with bifurcated bellows (BT) design for stable and reliable connection
2. Solder/PMT type terminals for easy and flexible mounting
3. Gold/tin-plated contacts for superior corrosion resistance and conductivity
4. High-durability design rated for up to 500 mating cycles
5. Polycarbonate/PBTP insulation provides excellent mechanical and thermal stability
6. Wide operating temperature range suitable for demanding environments
7. Compliant with RoHS standards and safety certifications

Specifications:

• Model: 12 Contact Card Edge Connector
• Contact Type: Bellows (BT)
• Contact Terminal: Solder / PMT
• Contact Pitch: 3.96mm (0.156 inch)

• Durability: 500 Cycles

• Insulator Material: Polycarbonate / PBTP

• Contact Material: Phosphor Bronze

• Contact Finish: Gold / Tin

• Operating Temperature Range: -40°C to +125°C

• Working Voltage: 300V RMS

• Voltage Proof: 1000V RMS

• Current Rating: 5A

• Contact Resistance: ≤10 mΩ (max)

• Insulation Resistance: ≥1000 MΩ (min)

• Compliance: RoHS Certified

• Approval: E302677

Package Includes:

1 × 12 Contact Card Edge Connector(White) – 3.96mm Pitch
