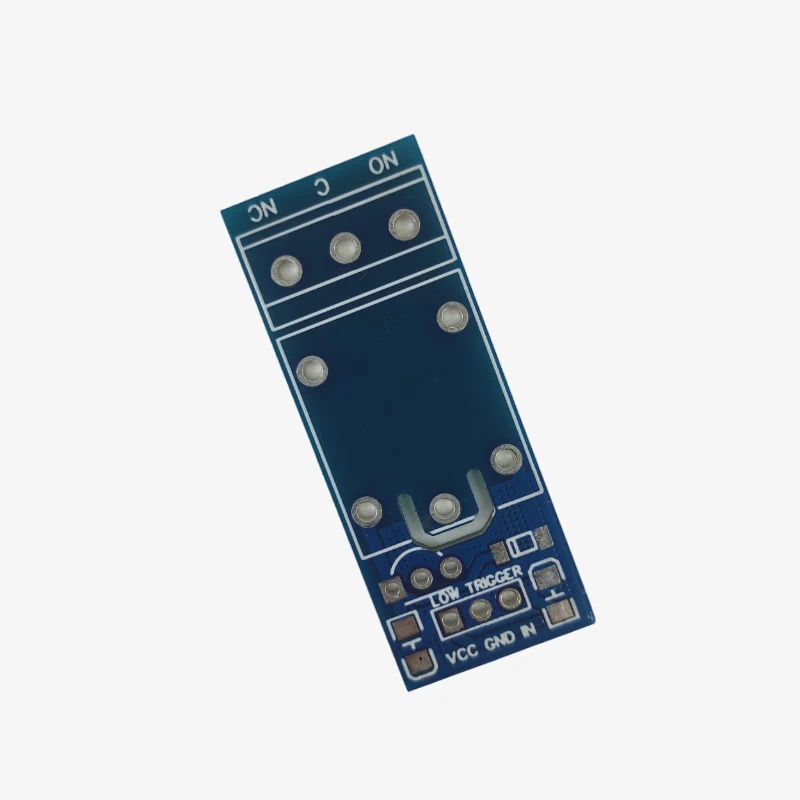

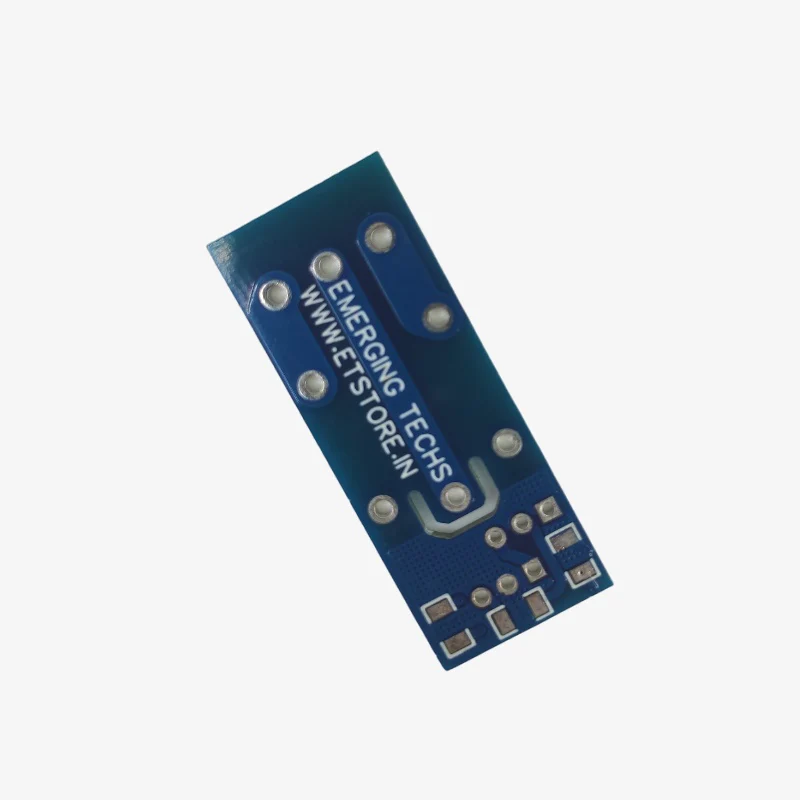

PCB for 1-Channel 5V Low Trigger Relay Module

Product image 1
1 / 2

PCB for 1-Channel 5V Low Trigger Relay Module



Specifications:

  • Input signal type -Active LOW
  • Components are SMD AND Through hole type
  • Use 1K 1206 SMD resistor
  • LED size -1206 SMD
  • Transistor PNP BC557 or BC556 or BC558
  • Terminal block connector -xy126 or zb126 or xy128 or  zb128 with 3pin 5mm pitch
  • Input connector -3 pin header with 2.54 MM pitch
  • Relay- normal sugar cube
  • DIODE – LL4148 SMD



Specifications:

  • Input signal type -Active LOW
  • Components are SMD AND Through hole type
  • Use 1K 1206 SMD resistor
  • LED size -1206 SMD
  • Transistor PNP BC557 or BC556 or BC558
  • Terminal block connector -xy126 or zb126 or xy128 or  zb128 with 3pin 5mm pitch
  • Input connector -3 pin header with 2.54 MM pitch
  • Relay- normal sugar cube
  • DIODE – LL4148 SMD
$0.06

Original: $0.17

-65%
PCB for 1-Channel 5V Low Trigger Relay Module—

$0.17

$0.06

Description



Specifications:

  • Input signal type -Active LOW
  • Components are SMD AND Through hole type
  • Use 1K 1206 SMD resistor
  • LED size -1206 SMD
  • Transistor PNP BC557 or BC556 or BC558
  • Terminal block connector -xy126 or zb126 or xy128 or  zb128 with 3pin 5mm pitch
  • Input connector -3 pin header with 2.54 MM pitch
  • Relay- normal sugar cube
  • DIODE – LL4148 SMD
