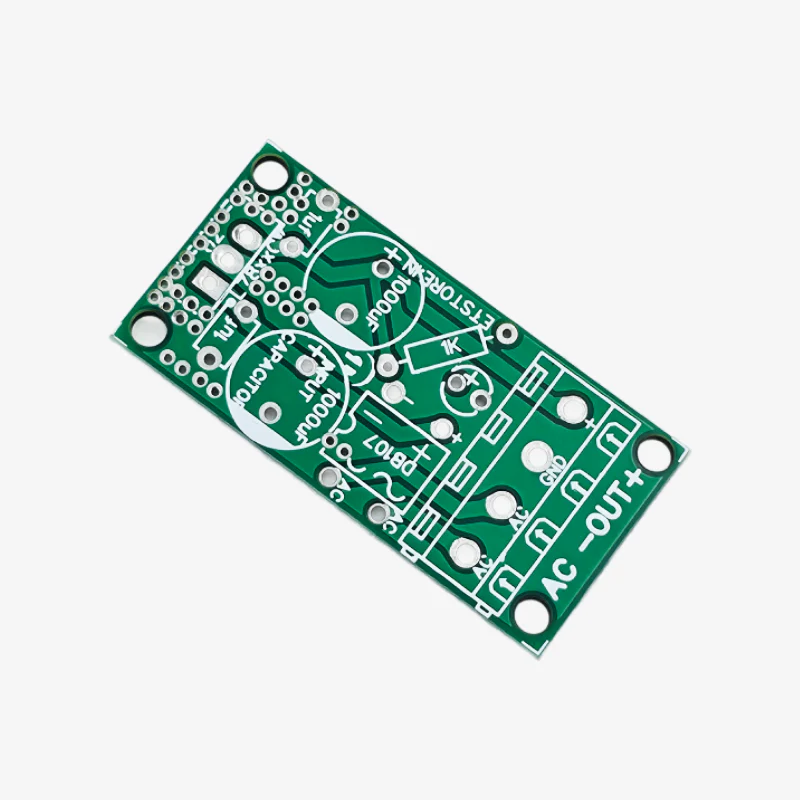

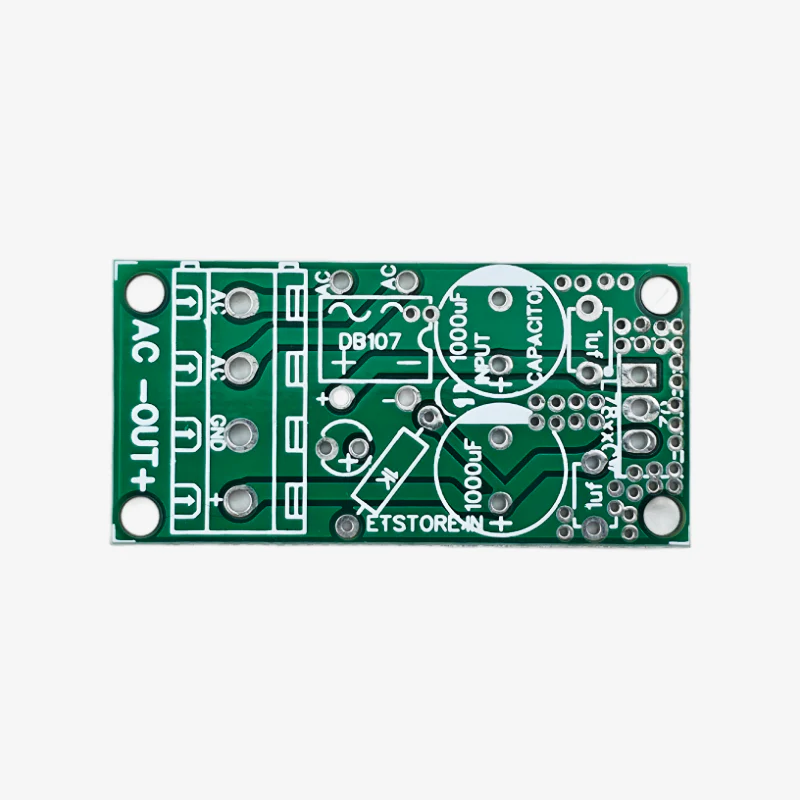

The PCB For DB107 With 78XX Regulator Bridge Rectifier Module is designed as a compact rectification and regulation module using the DB107 bridge and 78XX series regulator. It provides smooth DC output and simplifies power conditioning for embedded and general electronics applications.

Features:

1. Supports DB107 bridge rectifier integration

2. Provides clean routing for 78XX voltage regulators

3. Ensures stable DC power conversion

4. Compact layout suitable for regulated supply modules

Specifications:

• Compatibility: DB107 bridge rectifier

• Input Type: AC input for rectification

• Output Type: Regulated DC (depending on 78XX variant)

• Board Type: Rectifier & Regulator Module

• PCB Material: High-quality FR4

• PCB Thickness: 1.6mm

• Component Type: Through-hole components

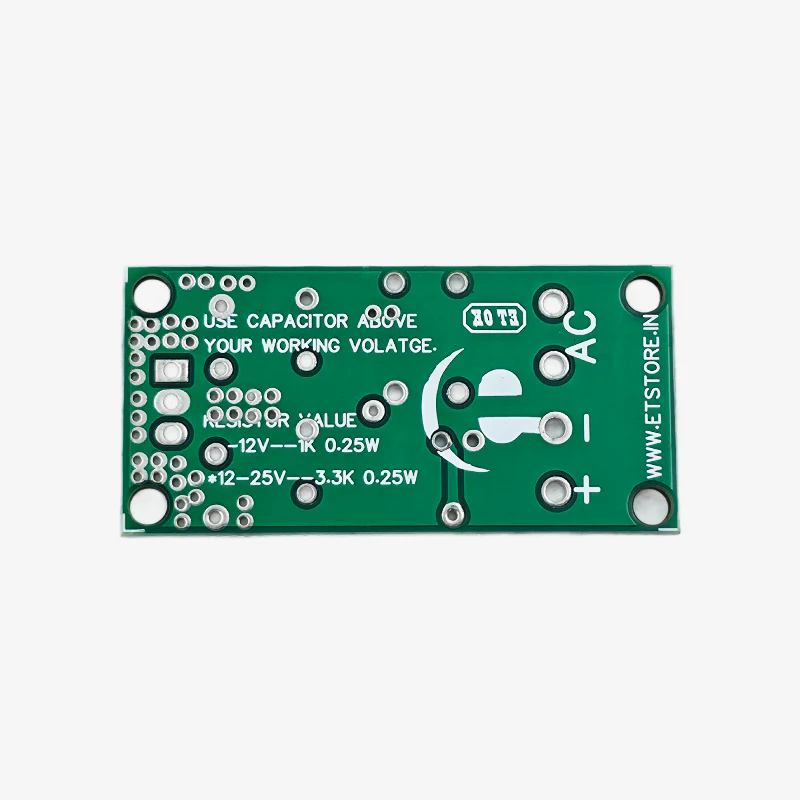

• Resistor Values: 1kΩ (for 12V), 3.3kΩ (for 12–25V)

• Capacitor: Use electrolytic capacitors above your working voltage
• Component: Bare PCB (no components pre-assembled)

Package Includes:

1 × PCB For DB107 With 78XX Regulator Bridge Rectifier Module
