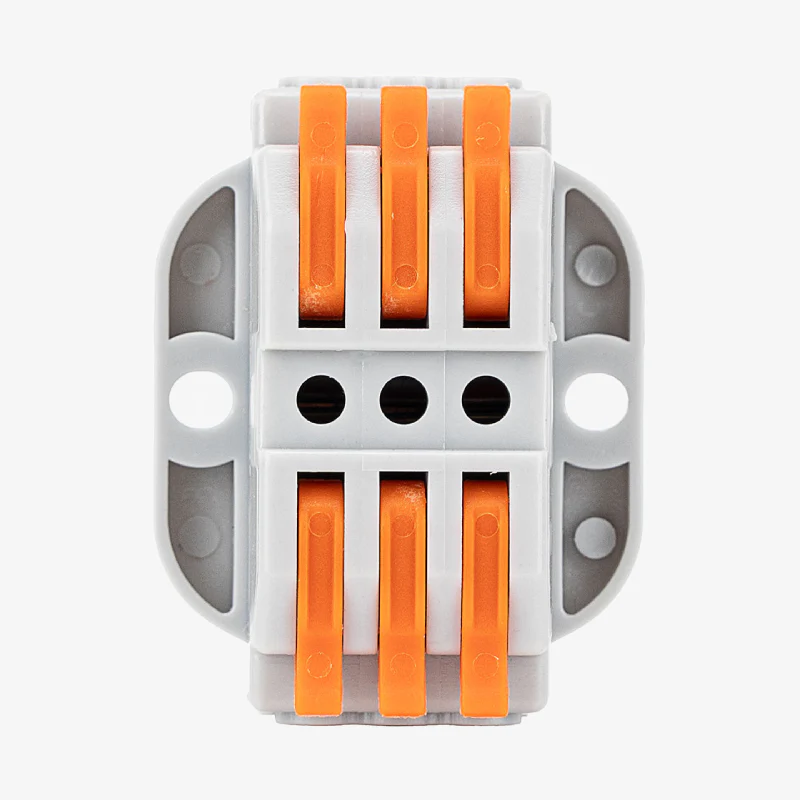

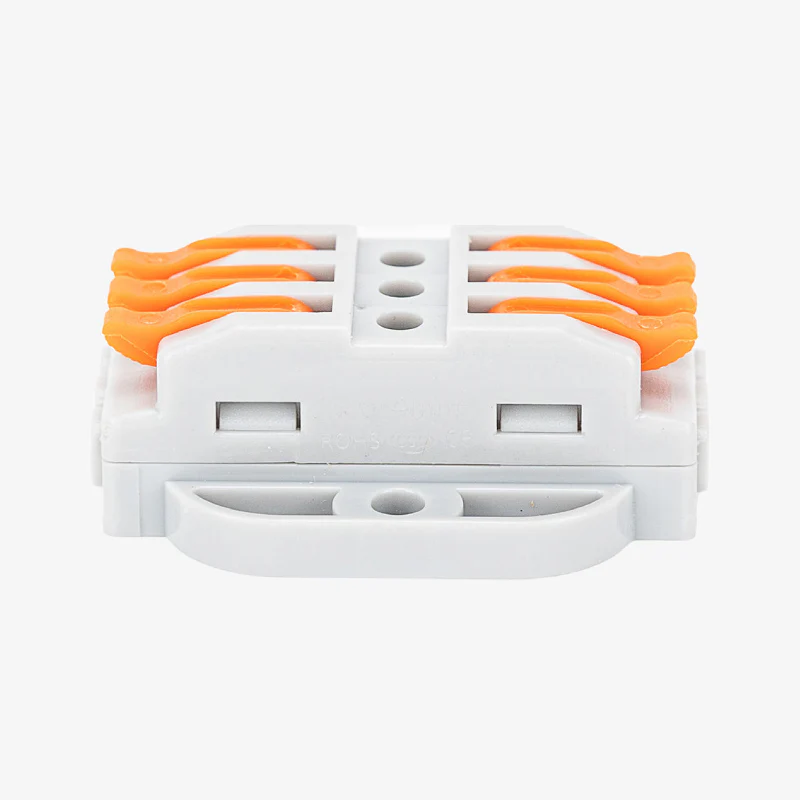

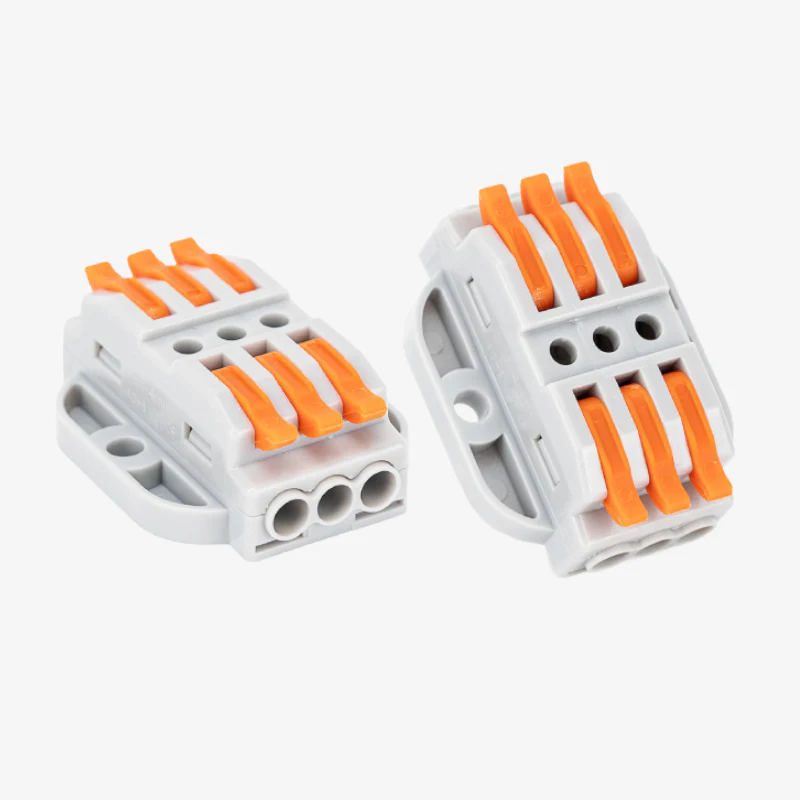

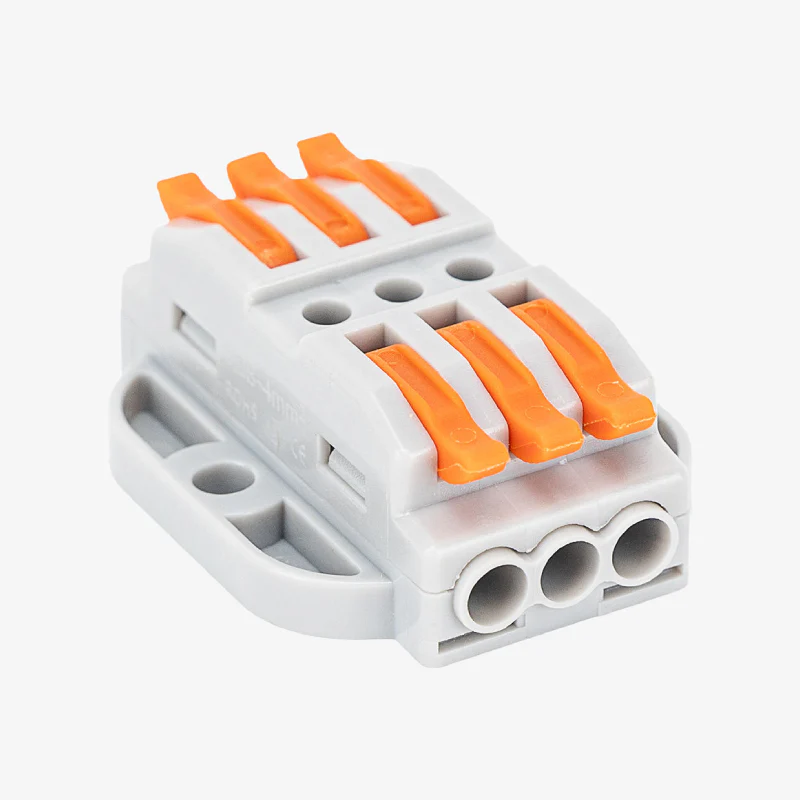

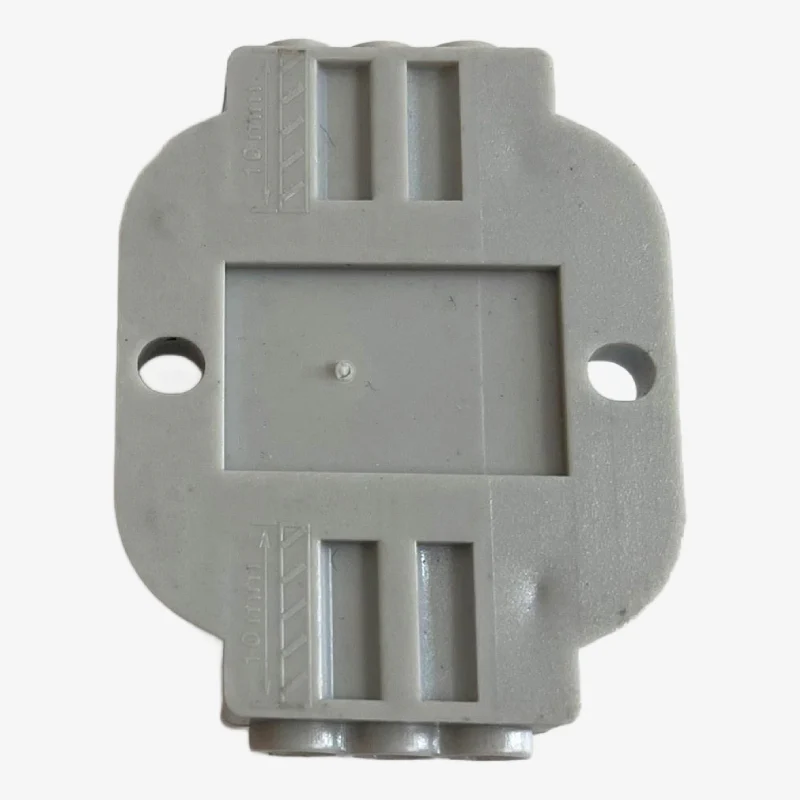

The PCT-223-3 is a 3-pole stationary type quick connection terminal block that enables effortless and secure wire joining. Designed with a spring lock lever mechanism, this terminal provides reliable, reusable connections for a variety of solid and stranded wires. Its stationary body ensures stability during fixed installations, making it ideal for use in electrical panels, lighting systems, and general-purpose wiring.

Features of PCT-223-3 Stationary Type Quick Connection Terminal:

1. Stationary body design for stable and permanent installations
2. Spring-operated lever for tool-free, easy, and quick connections
3. Terminals can be spliced to accommodate extended wiring needs
4. Supports solid and stranded conductors
5. Flame-retardant and heat-resistant housing ensures safety
6. Compatible with wire sizes from 0.08mm² to 2.5mm² (28–14 AWG)
7. Ideal for home wiring, lighting, industrial control systems, and panel boards

Specifications of PCT-223-3:

• Model: PCT-223-3
• Number of Poles: 3
• Wire Size Range: 0.08–2.5mm² (28–14 AWG)
• Rated Voltage: 250V
• Rated Current: 32A
• Housing Material: Flame-retardant PC
• Contact Material: Copper Alloy
• Operating Temperature: -40°C to +85°C

Package Includes:

1 × PCT-223-3 Stationary Type Quick Connection Terminal – 3 Pole Wire Connector Terminal Block with
