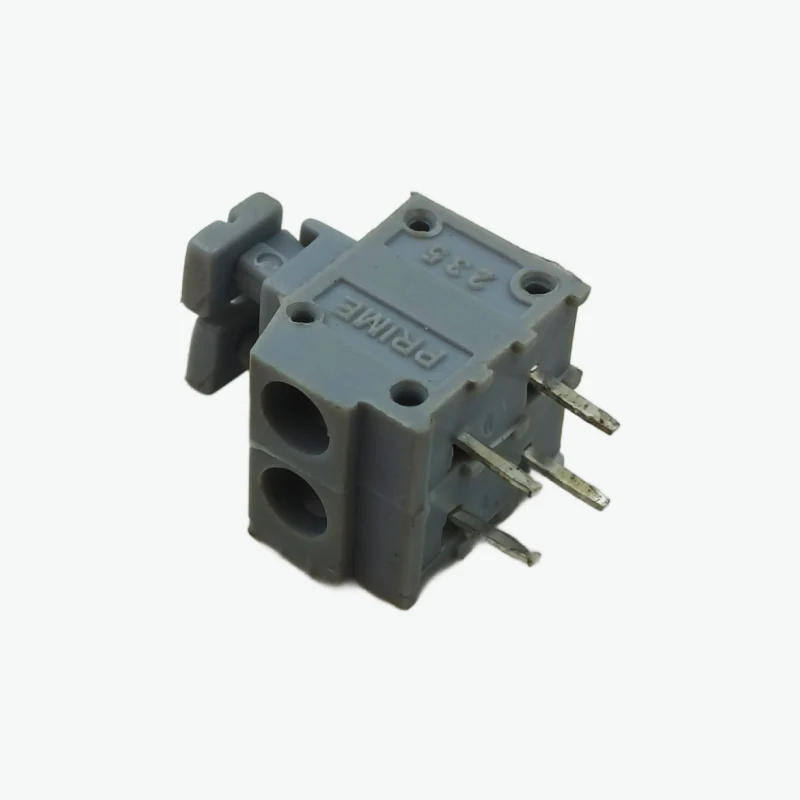

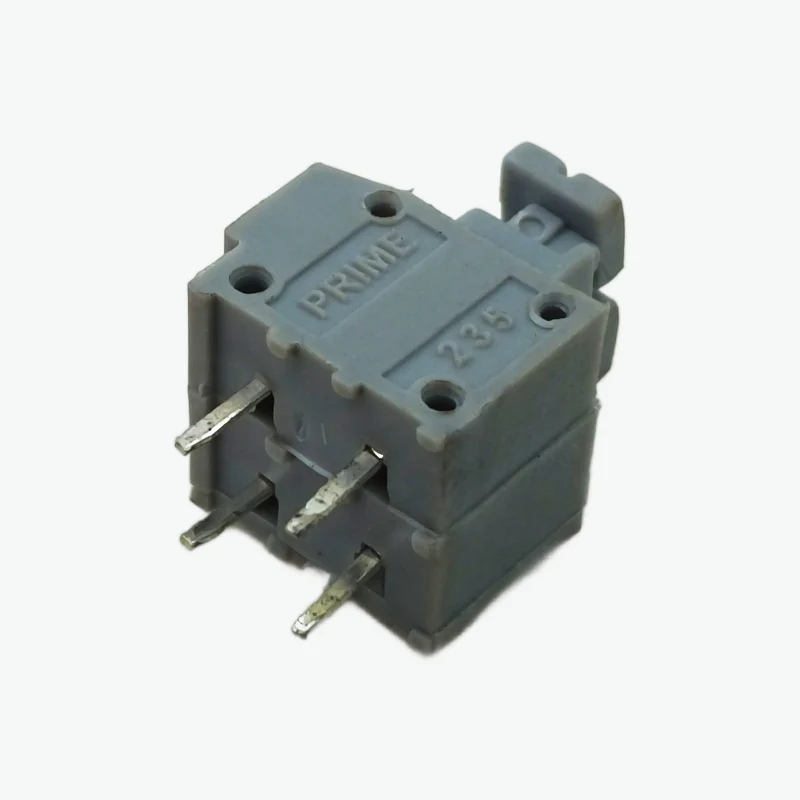

The 2 Terminal Push Type PCB Connector is a compact and efficient solution for secure wire-to-board connections. Featuring push-in terminals, it allows tool-free insertion and removal of solid or stranded wires, providing fast and reliable assembly for electronic devices. Its durable construction ensures long-lasting electrical performance, making it ideal for control boards, automation systems, and other PCB-based applications.

Features:

1. 2-terminal push type PCB connector for quick and secure wire connections
2. Tool-free push-in termination for solid or stranded conductors
3. Easy wire removal for maintenance via integrated release mechanism
4. Compact and low-profile design suitable for space-constrained PCB layouts
5. Reliable electrical contact with minimal resistance
6. Durable thermoplastic housing ensures mechanical strength and insulation
7. Ideal for industrial electronics, automation modules, and PCB assemblies

Specifications:

• Type: Push Type PCB Connector
• Number of Terminals: 2
• No. of Pins: 4
• Mounting Type: PCB / Through Hole
• Rated Voltage: 250V AC
• Rated Current: 10A
• Wire Size Compatibility: 0.5-1.5mm2
• Insulator Material: Flame-retardant Thermoplastic
• Contact Material: Copper Alloy / Phosphor Bronze
• Contact Finish: Tin / Nickel Plating
• Operating Temperature Range: -40°C to +105°C
• Applications: PCB control boards, industrial automation, electronic modules

Package Includes:

1 × 2 Terminal Push Type PCB Connector
