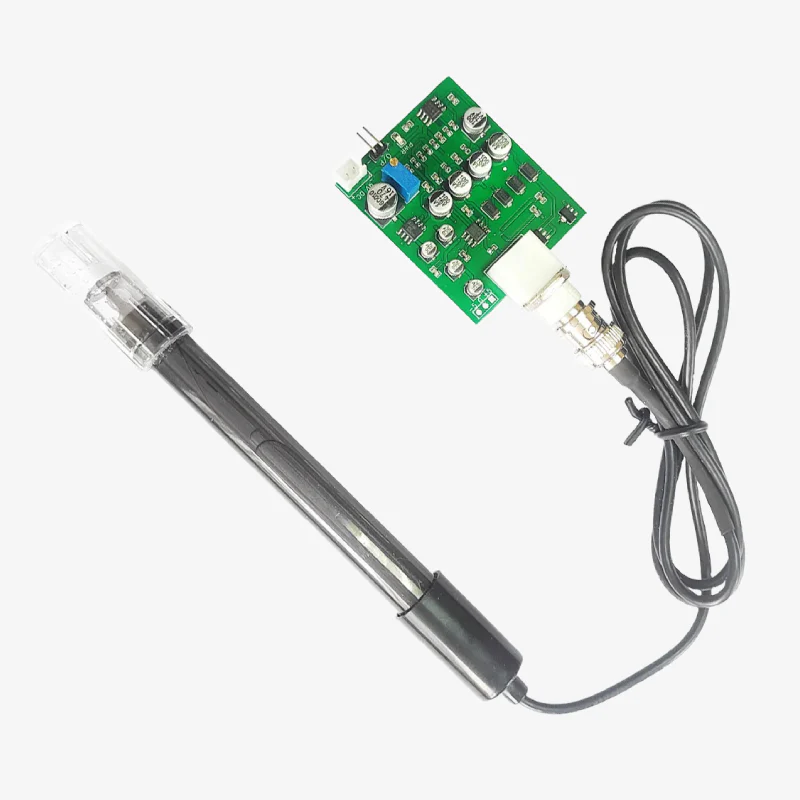

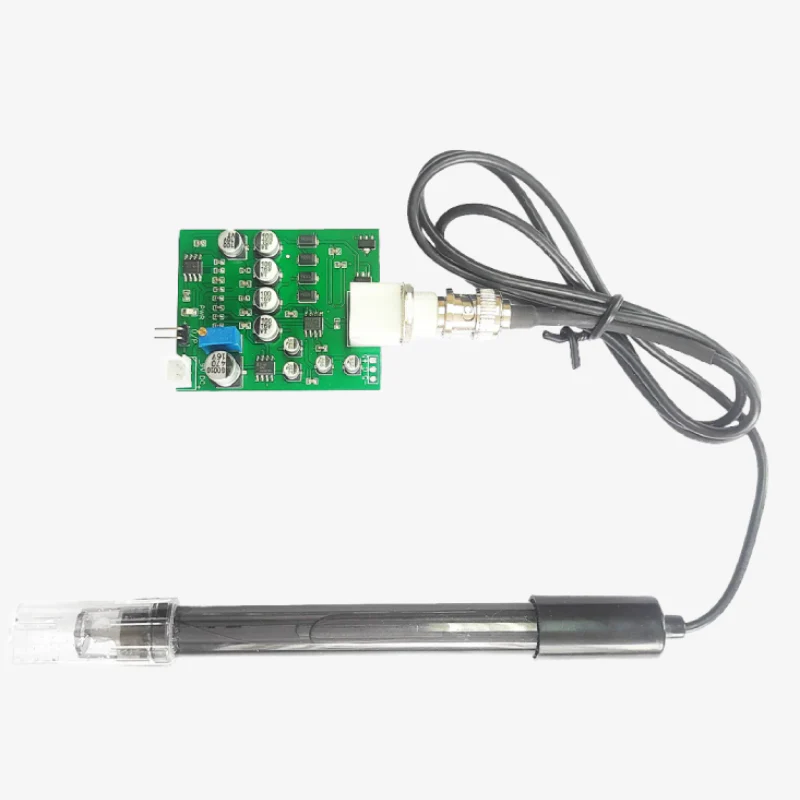

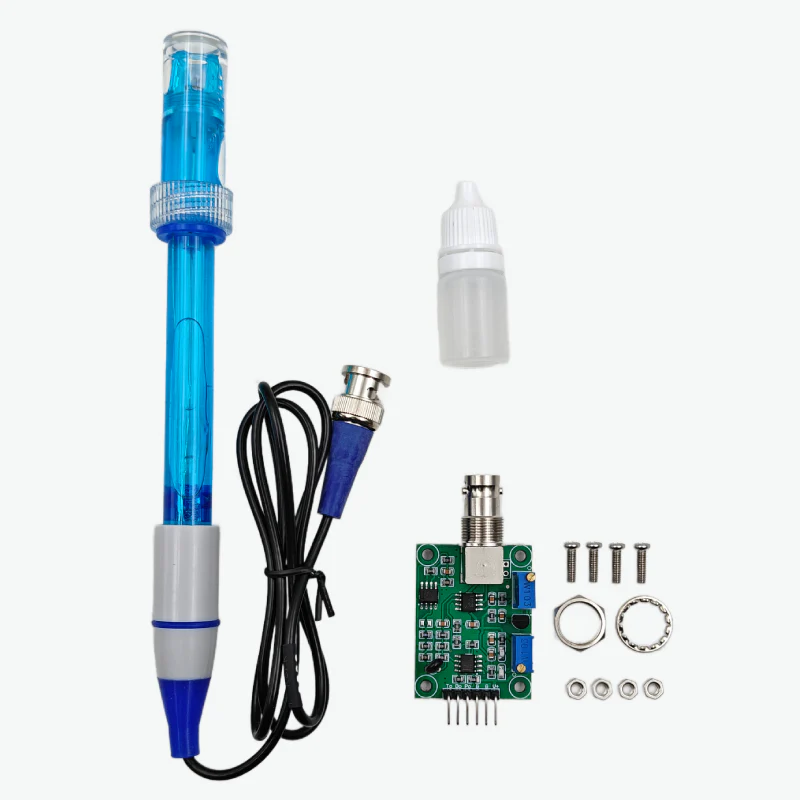

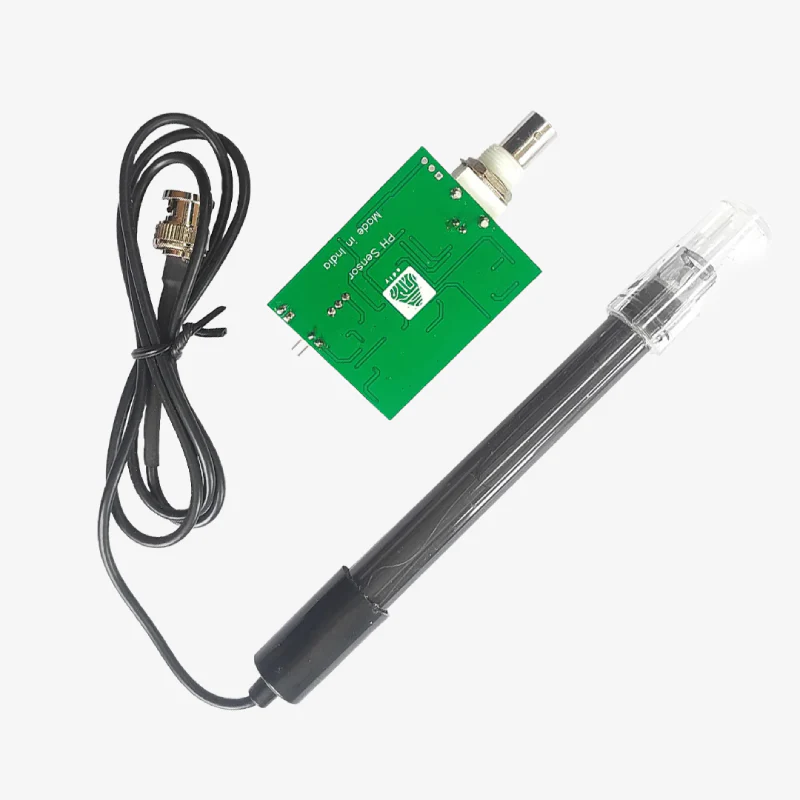

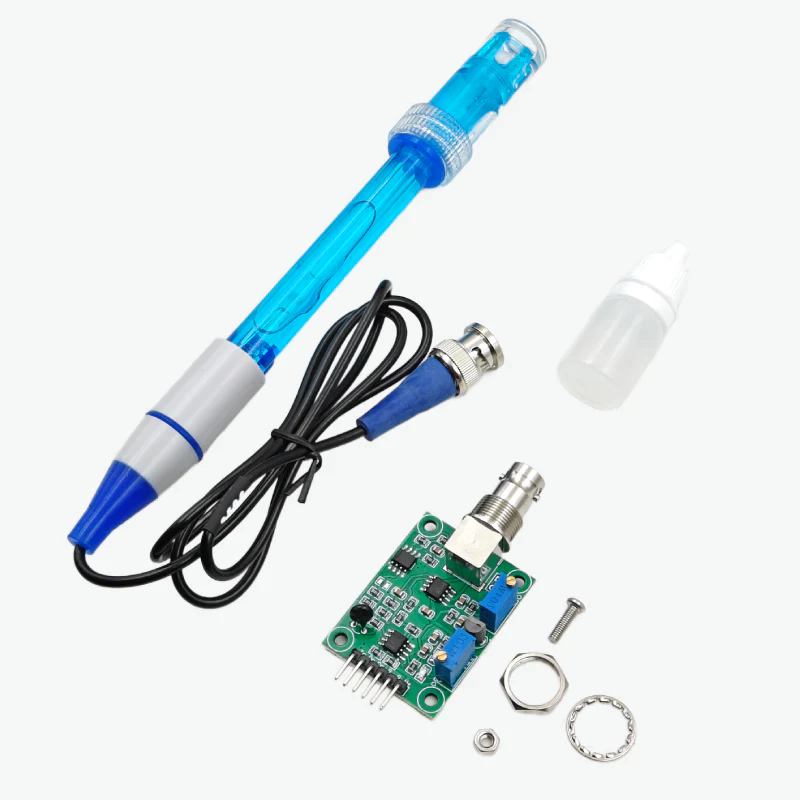

PH Sensor Module with PH Probe - Water Quality Monitoring Sensor
The PH Sensor Module with PH Probe is a reliable and easy-to-use solution for measuring the acidity or alkalinity of liquids. The kit includes a high-sensitivity pH probe and a signal conditioning module that outputs analog signals, making it suitable for DIY projects, aquariums, hydroponics, laboratory use, and industrial applications.
Features:
- Measures pH levels accurately in the range of 0 to 14.
- Comes with a high-quality pH glass electrode probe.
- Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
- Analog signal output for easy interfacing.
- Onboard potentiometer for calibration and fine-tuning.
Specifications:
- Sensor Type: PH Electrode + Signal Conditioning Module
- Measurement Range: 0 – 14 pH
- Accuracy: ±0.1 pH (after calibration)
- Output Signal: Analog (0 – 5V)
- Operating Voltage: 3.3V – 5V
- Calibration: Adjustable via onboard potentiometer
- Cable Length (Probe): 45cm
- Weight: 35g
Package Includes:
1 × PH Sensor Module
1 × PH Probe with Cable
The PH Sensor Module with PH Probe is a reliable and easy-to-use solution for measuring the acidity or alkalinity of liquids. The kit includes a high-sensitivity pH probe and a signal conditioning module that outputs analog signals, making it suitable for DIY projects, aquariums, hydroponics, laboratory use, and industrial applications.
Features:
- Measures pH levels accurately in the range of 0 to 14.
- Comes with a high-quality pH glass electrode probe.
- Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
- Analog signal output for easy interfacing.
- Onboard potentiometer for calibration and fine-tuning.
Specifications:
- Sensor Type: PH Electrode + Signal Conditioning Module
- Measurement Range: 0 – 14 pH
- Accuracy: ±0.1 pH (after calibration)
- Output Signal: Analog (0 – 5V)
- Operating Voltage: 3.3V – 5V
- Calibration: Adjustable via onboard potentiometer
- Cable Length (Probe): 45cm
- Weight: 35g
Package Includes:
1 × PH Sensor Module
1 × PH Probe with Cable
Original: $14.03
-65%$14.03
$4.91Description
The PH Sensor Module with PH Probe is a reliable and easy-to-use solution for measuring the acidity or alkalinity of liquids. The kit includes a high-sensitivity pH probe and a signal conditioning module that outputs analog signals, making it suitable for DIY projects, aquariums, hydroponics, laboratory use, and industrial applications.
Features:
- Measures pH levels accurately in the range of 0 to 14.
- Comes with a high-quality pH glass electrode probe.
- Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
- Analog signal output for easy interfacing.
- Onboard potentiometer for calibration and fine-tuning.
Specifications:
- Sensor Type: PH Electrode + Signal Conditioning Module
- Measurement Range: 0 – 14 pH
- Accuracy: ±0.1 pH (after calibration)
- Output Signal: Analog (0 – 5V)
- Operating Voltage: 3.3V – 5V
- Calibration: Adjustable via onboard potentiometer
- Cable Length (Probe): 45cm
- Weight: 35g
Package Includes:
1 × PH Sensor Module
1 × PH Probe with Cable
