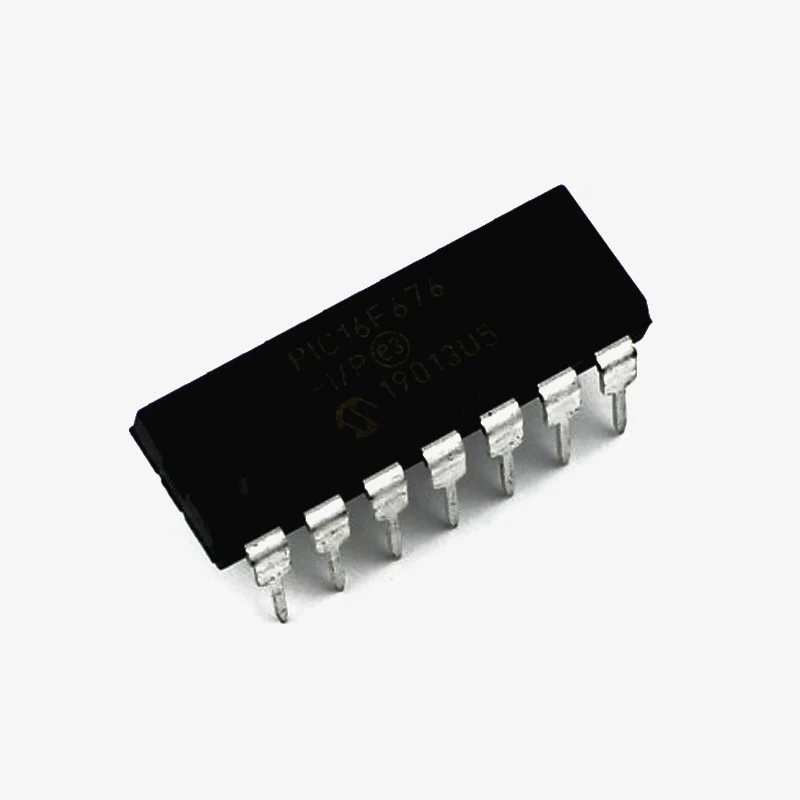

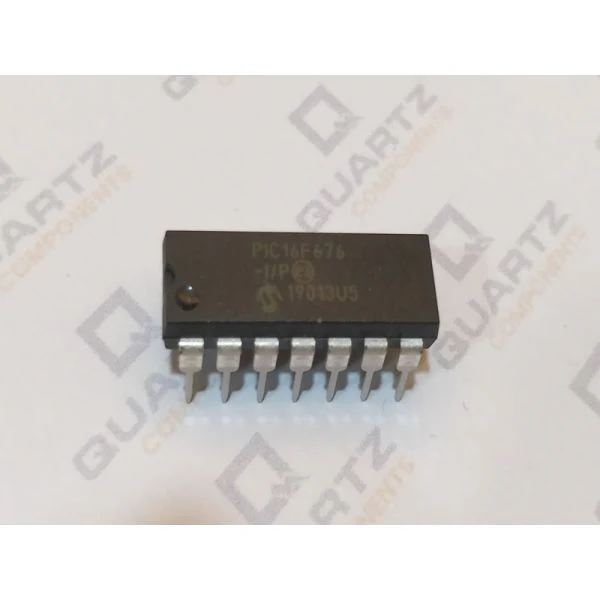

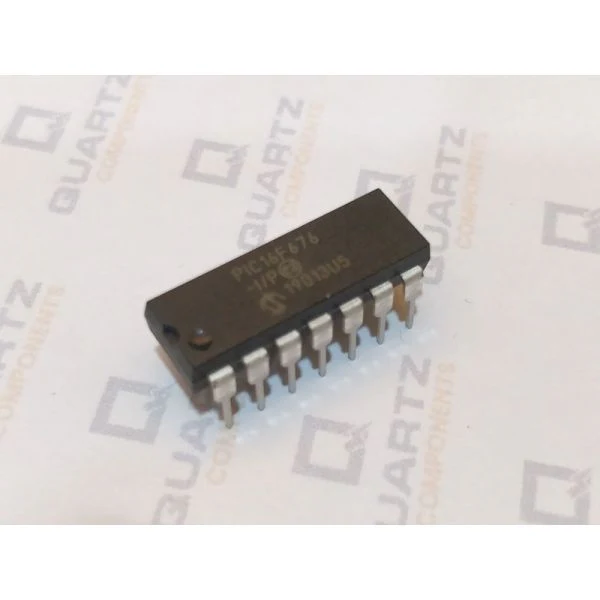

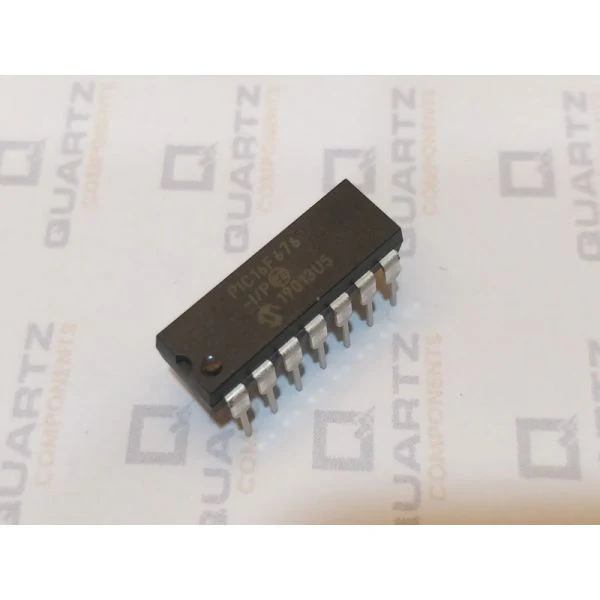

PIC16F676 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into a 14-pin package and features 8 channels for the 10-bit Analog-to-Digital (A/D) converter, 1 comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

It has 128 bytes of EEPROM and 64 Bytes of SRAM. For debugging and Programming, it has an ICD2 interface with optional header adapter. The Pull-up state of the pins can be programmed to decrease additional resistor counts in applications.



PIC16F676 pinout:



PIC16F676 Specifications

Specification:

1. 128 bytes of EEPROM Data Memory
2. Programmable pull-up resistors
3. Individually selectable analog channels
4. ICD2 programming support or debugging support with optional header adapter
5. 8 oscillator selections including precision 4 MHz RC oscillator with programmable calibration and Power-on Reset
6. Program Memory Type: Flash
7. Program Memory (KB): 1.75
8. CPU Speed (MIPS): 5
9. RAM Bytes:64
10. Data EEPROM (bytes): 128
11. Digital Communication Peripherals:1-UART,
12. Timers:1 x 8-bit, 1 x 16-bit
13. ADC:8 ch, 10-bit
14. Comparators:1
15. Temperature Range (C): -40 to 125
16. Operating Voltage Range (V): 2 to 5.5
17. Pin Count: 14
18. Cap Touch Channels: 8

PIC16F676 Applications:

• Analog to Digital conversion
• Data processing
• Small control projects
• Logic devices
• Small Industrial applications



PIC16F676 Dimension and footprint:

Package Contains

1x PIC16F676 Microcontroller
