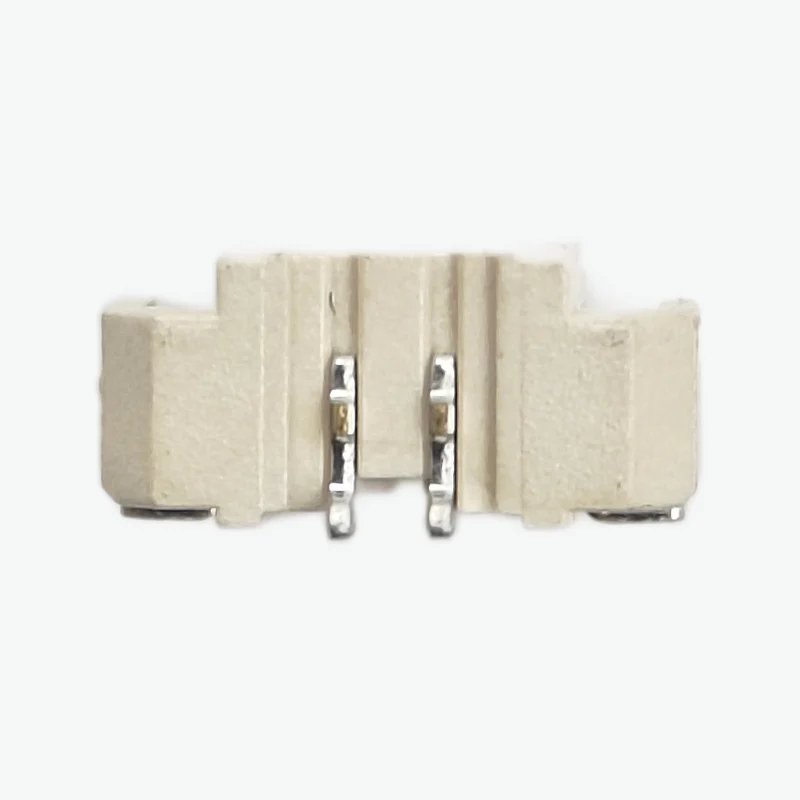

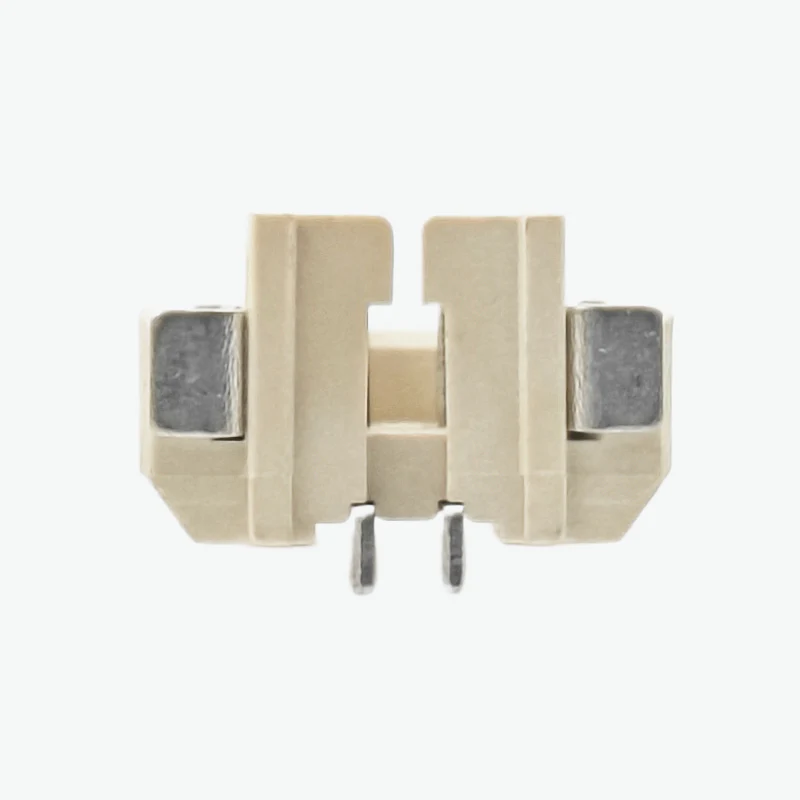

PicoBlade Type 2-Pin 1.25mm Pitch Wire-to-Board Horizontal Connector
This 2-pin 1.25mm pitch wire-to-board header features a compact horizontal design, perfect for space-constrained electronic applications. The PicoBlade-style connector is widely used in consumer electronics, wearable devices, drones, and battery connections where reliable signal or power transmission is needed within a small footprint.
The horizontal PCB mount design ensures a secure and low-profile connection, making it ideal for dense PCB layouts.
Features:
- Pitch Spacing: 1.25mm
- No. of Pins: 2
- Mount Type: Right Angle (Horizontal)
- Rated Voltage: 50V
- Rated Current: 1A
- Operating Temperature: -25°C to +85°C
- Material: Nylon Housing with Phosphor Bronze/Tin-Plated Contacts
- Low-profile, compact size for tight spaces
- Secure locking mechanism for stable connections
- Compatible with PicoBlade-type female connectors
Package Includes:
1 x PicoBlade Type 2-Pin 1.25mm Pitch Wire-to-Board Horizontal Connector
