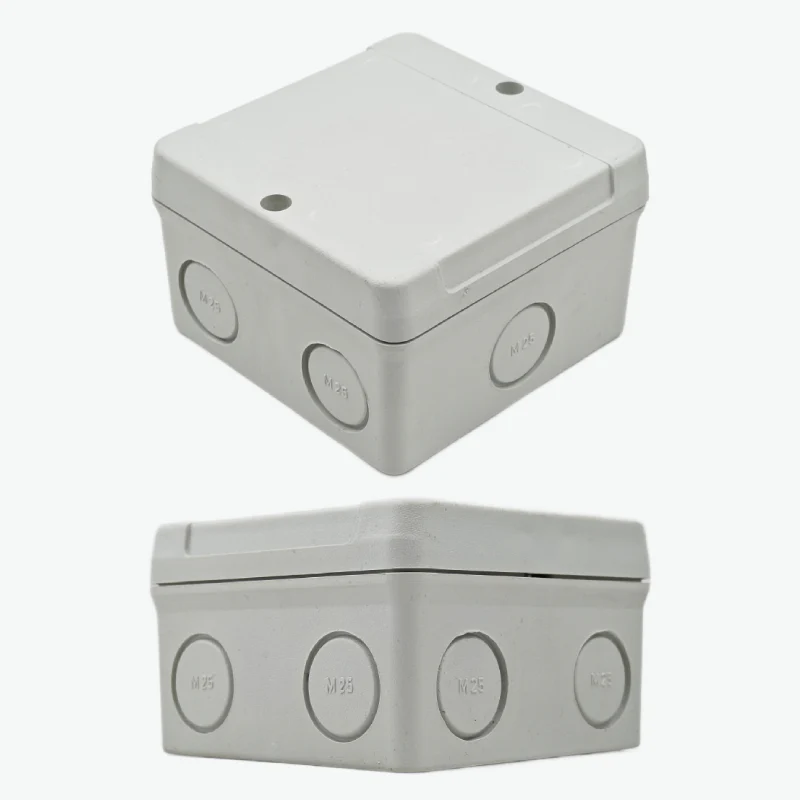

The IP65 Waterproof Enclosure 90x90x60 mm is a high-quality ABS housing designed for industrial and outdoor electronic projects. With its 90×90×60 mm size, it is suitable for large PCBs and circuit boards. The rugged construction, silicone gasket and IP-65 certification ensure complete protection against dust, moisture and harsh environments. The enclosure includes a transparent lid for easy viewing of indicators and debugging, with an option for an opaque cream lid. It comes with internal bosses for mounting PCBs and brass inserts for long-lasting lid fastening.

Features:

• Suitable for industrial and outdoor environments

• Complete protection from dust, oil and non-corrosive materials

• Water protection from nozzle spray in any direction

• Better protection than IP30, IP34, IP42, IP54 and IP55 enclosures

• Transparent lid for indicator visibility and debugging

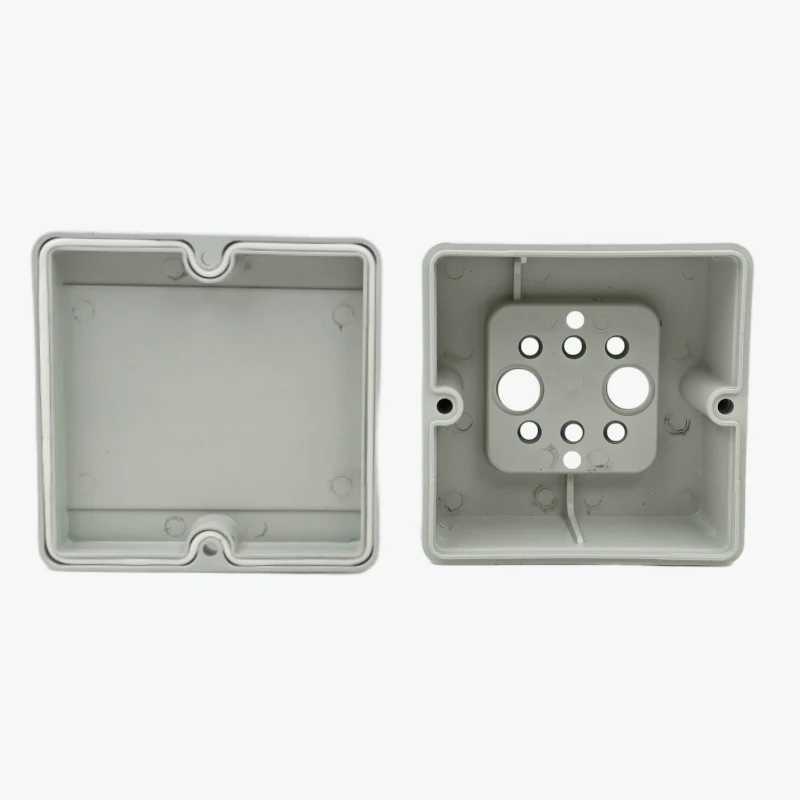

• Internal standoffs for PCB mounting

• Compatible with cable glands for IP65 cable entry

Specifications:

• Outer Dimensions: 90×90×60 mm (L×B×H)

• Inner Dimensions: Reduce 2–3 mm from outer size to get inner usable size

• Colour: White or Ivory

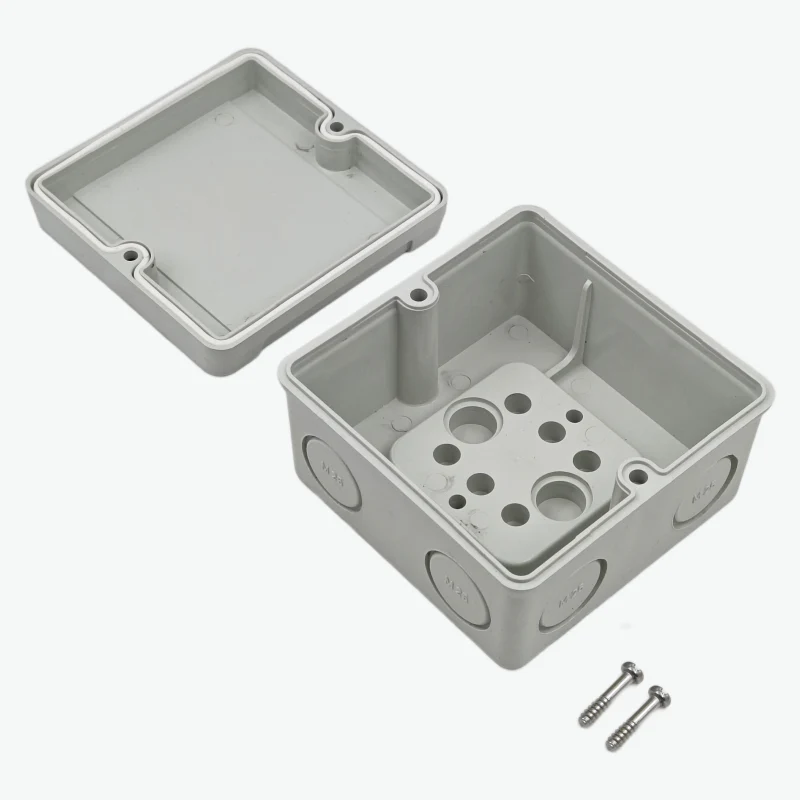

• Construction: Bottom box and lid secured with 4 screws

• Gasket: One-piece high-quality silicone gasket pre-installed

• Material: Industrial-grade ABS

Applications:

• Electronics product housings

• Electrical product housings

• LED driver housings

• General purpose housings

• Electronic choke housings

• Waterproof housings (IP-65)

• AC/DC adapter housings

• Power supply housings

• LED light housings

Package Includes:

1 ×IP65 Waterproof Plastic Enclosure 90x90x60 mm for Adapters, Led Drivers & General Purpose Housing
