PMBT3904 40 V, 200 mA (SMD SOT-23 Package) NPN switching transistor - Pack Of 5 Pieces

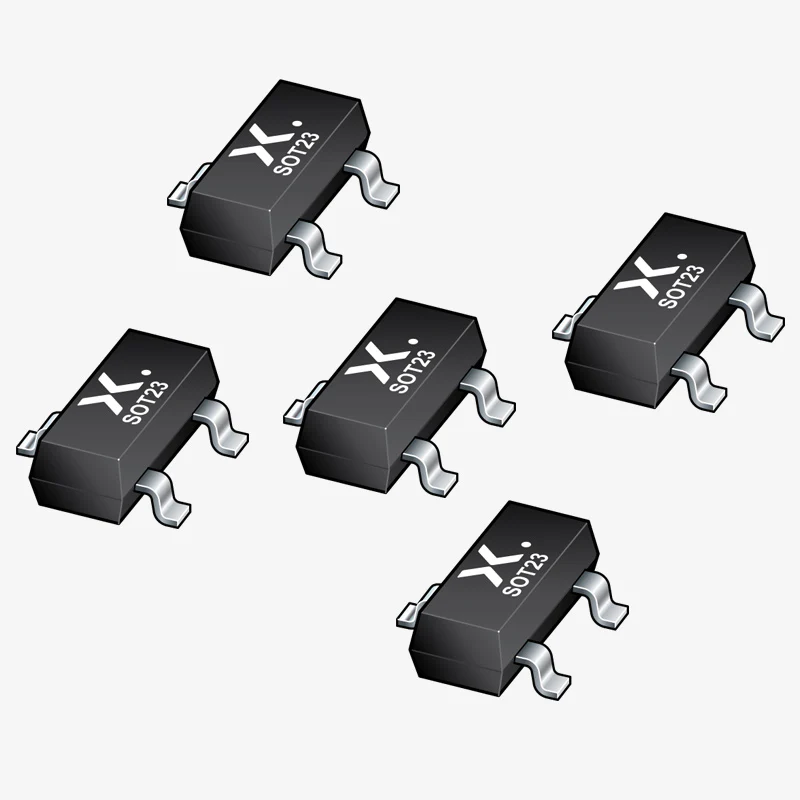

NPN switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
PNP complement: PMBT3906
Features and benefits :
- Collector current capability IC = 200 mA
- Collector-emitter voltage VCEO = 40 V
Applications :
- General switching and amplification
Specifications :
| Type number | Package version | Size (mm) | Polarity | Ptot (mW) | VCEO [max] (V) | IC [max] (mA) | hFE [min] | hFE [max] | fT [min] (MHz) | Automotive qualified |
|---|---|---|---|---|---|---|---|---|---|---|
| PMBT3904 | SOT23 | 2.9 x 1.3 x 1 | NPN | 250 | 40 | 200 | 60 | 300 | 300 | N |
Datasheet :
PMBT3904 40 V, 200 mA (SMD SOT-23 Package) Datasheet
Package Includes :
1 x 5 Piece of PMBT3904 (SMD SOT-23 Package) NPN switching transistor
NPN switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
PNP complement: PMBT3906
Features and benefits :
- Collector current capability IC = 200 mA
- Collector-emitter voltage VCEO = 40 V
Applications :
- General switching and amplification
Specifications :
| Type number | Package version | Size (mm) | Polarity | Ptot (mW) | VCEO [max] (V) | IC [max] (mA) | hFE [min] | hFE [max] | fT [min] (MHz) | Automotive qualified |
|---|---|---|---|---|---|---|---|---|---|---|
| PMBT3904 | SOT23 | 2.9 x 1.3 x 1 | NPN | 250 | 40 | 200 | 60 | 300 | 300 | N |
Datasheet :
PMBT3904 40 V, 200 mA (SMD SOT-23 Package) Datasheet
Package Includes :
1 x 5 Piece of PMBT3904 (SMD SOT-23 Package) NPN switching transistor
