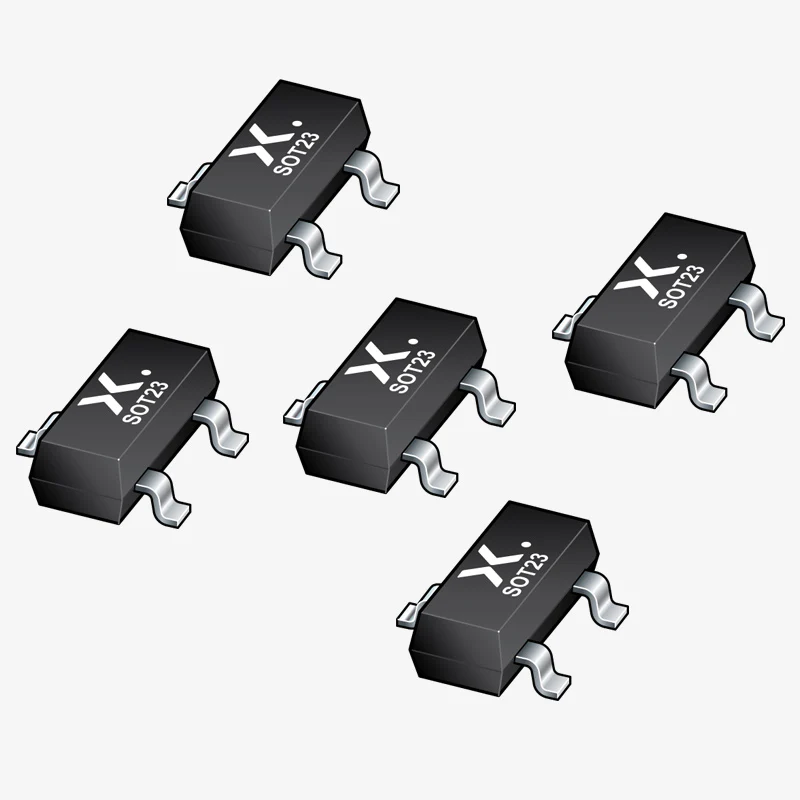

PNP high-voltage transistor in a SOT23 plastic package. NPN complement: PMBT5550.

Features :

• Low current (max. 300 mA)
• High voltage (max. 150 V).

Applications :

• Switching and amplification in high voltage applications such as telephony.

Specifications :

Package/Case:	SOT-23-3
Transistor Polarity:	PNP
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	150 V
Collector- Base Voltage VCBO:	160 V
Emitter- Base Voltage VEBO:	5 V
Maximum DC Collector Current:	300 mA
Pd - Power Dissipation:	250 mW
Gain Bandwidth Product fT:	300 MHz
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 150 C

Datasheet :

PMBT5401 (SMD SOT-23 Package) PNP high-voltage transistor Datasheet

Package Includes :

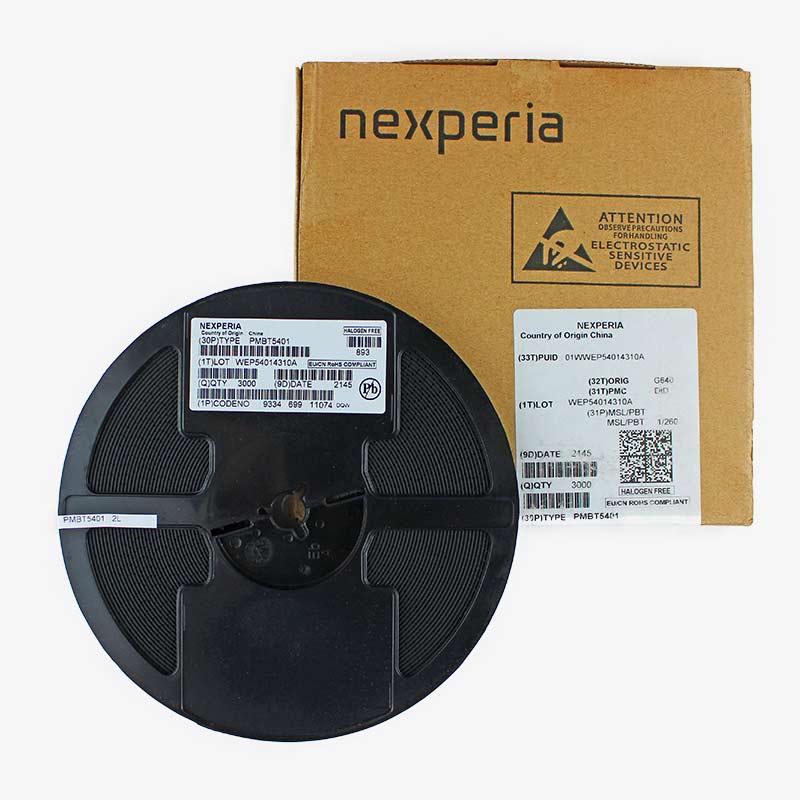

1 x 5 Piece of PMBT5401 (SMD SOT-23 Package) PNP high-voltage transistor
