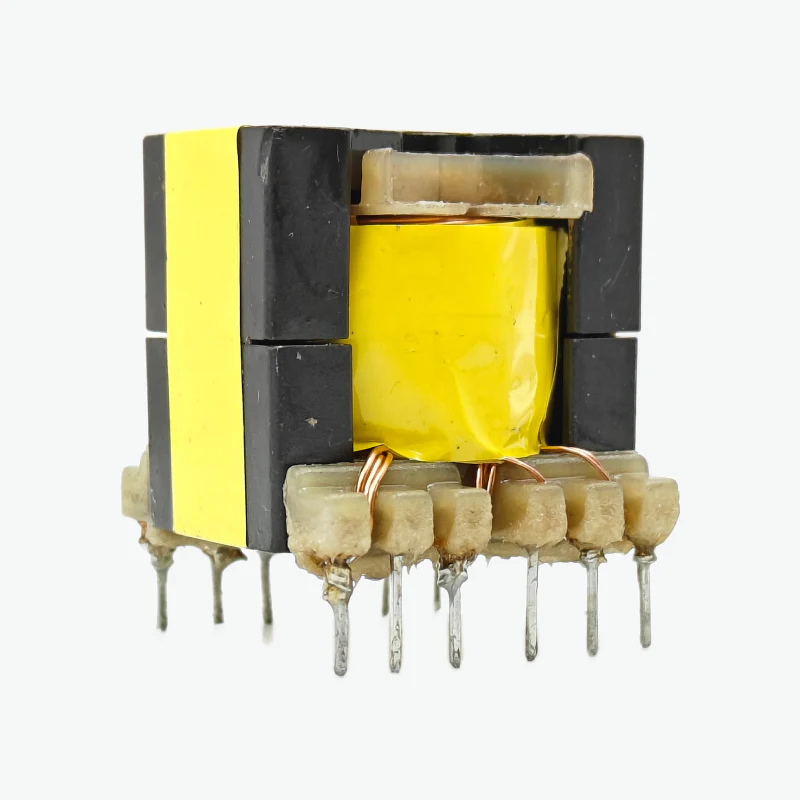

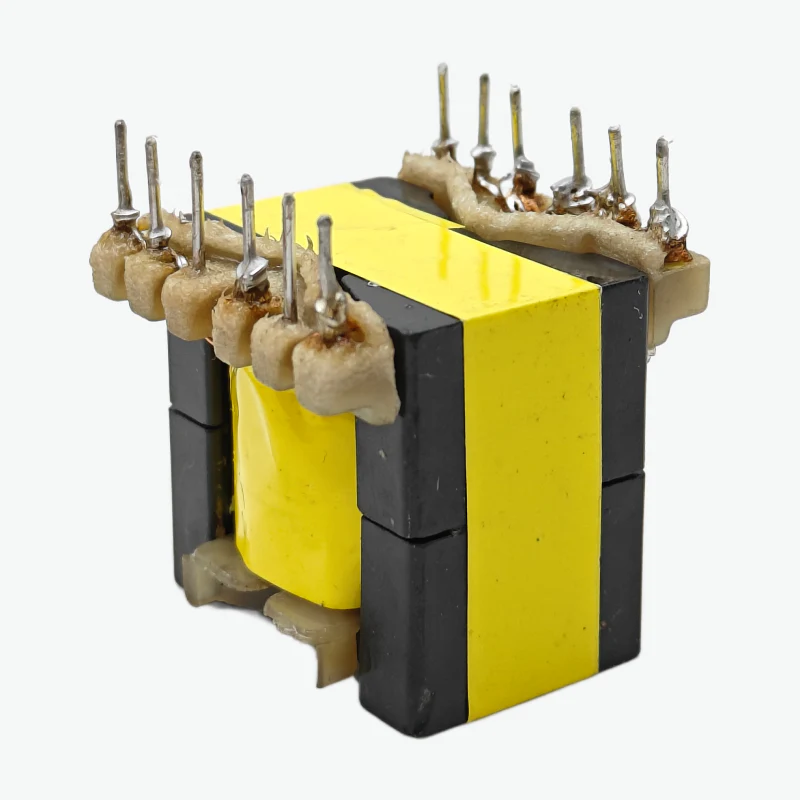

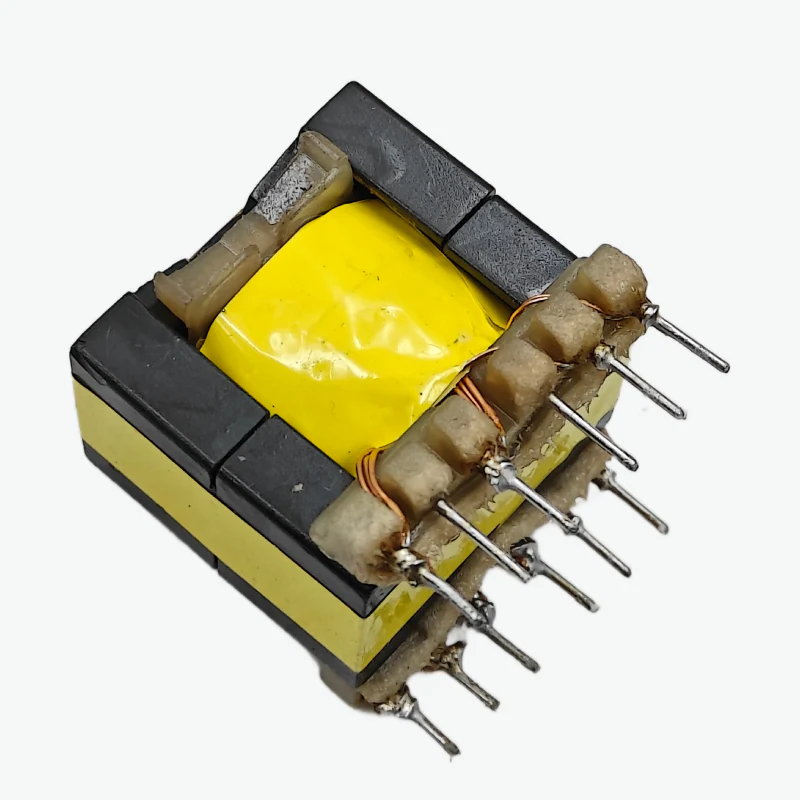

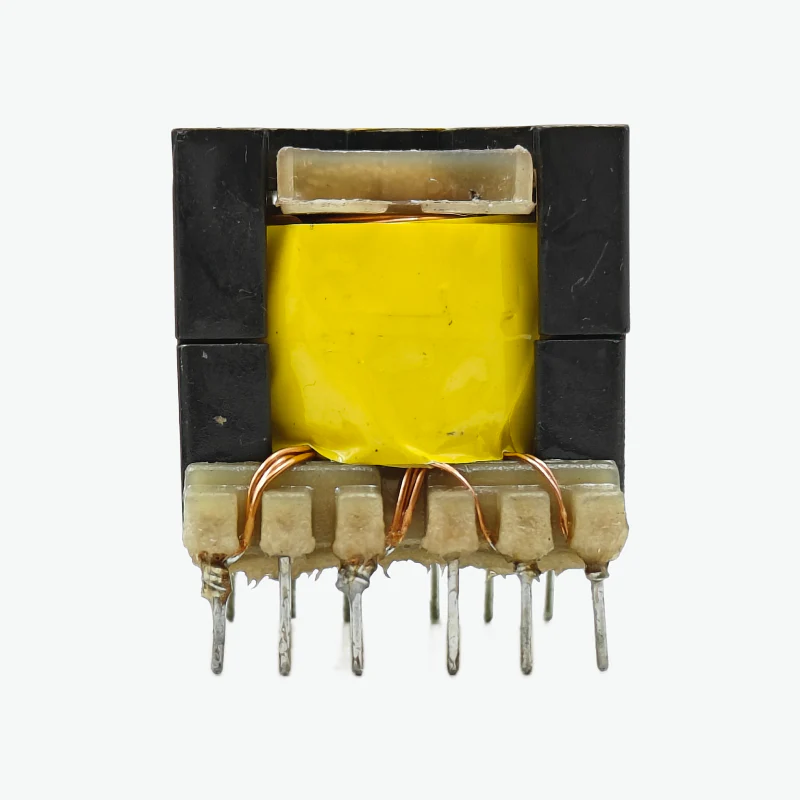

PQ3230 150W High-Frequency SMPS Transformer – 12.6V Output (OB2269CP IC Compatible) is a high-efficiency ferrite core transformer designed for switch mode power supply applications, featuring a MnZn ferrite PQ3230 core, 150W power rating, optimized primary and secondary windings for 12.6V output, and compatibility with OB2269CP-based SMPS designs, making it suitable for high-frequency power conversion in industrial and consumer electronics.

Features:

1. 150W high-frequency SMPS transformer
2. Designed for 12.6V output applications
3. MnZn ferrite core for efficient magnetic performance
4. Optimized multi-strand copper windings
5. Compatible with OB2269CP IC based designs
6. Wide operating frequency range
7. Through-hole mounting with 8-pin configuration

Specifications:

• Product Type: SMPS Transformer
• Model: PQ3230
• Core Material: MnZn Ferrite
• Phase: Single
• Power Rating: 150 W
• Maximum Secondary Current: 10 A
• Primary Inductance: 420 mH
• Primary Turns: 38 Turns (3 × 0.5 mm wire)
• Primary Bias Turns: 8 Turns (2 × 0.3 mm wire)
• Secondary Turns: 5 Turns (10 × 0.5 mm wire)
• Secondary Bias Turns: 8 Turns (2 × 0.3 mm wire)
• Working Frequency: 20 kHz to 500 kHz
• Winding Material: Copper
• Number of Pins: 8
• Mounting Type: Through Hole
• Dimensions: 35 × 32 × 31 mm
• Operating Temperature: -15°C to +105°C
• Applications: SMPS power supplies, industrial power converters, battery chargers, inverter circuits, high-frequency power systems

Package Includes:

1 × PQ3230 150W High-Frequency SMPS Transformer - 12.6V Output (OB2269CP IC Compatible)
