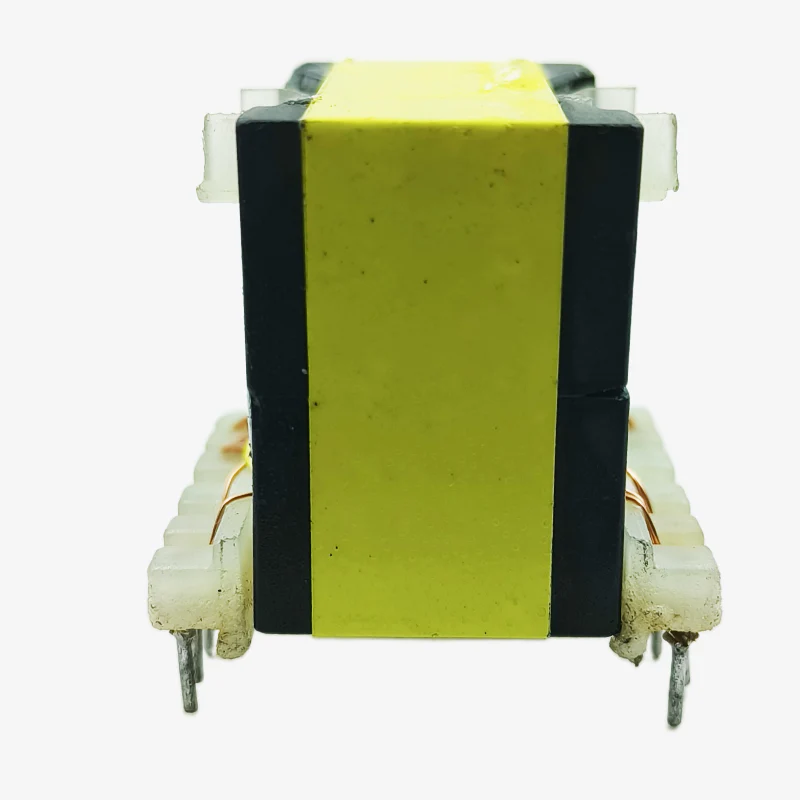

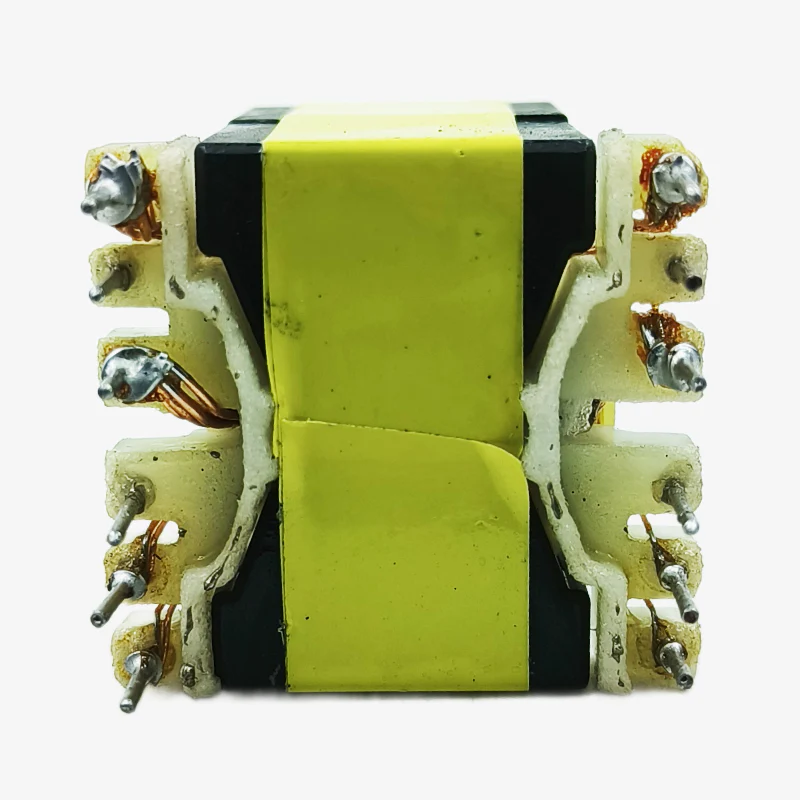

The PQ3230 150W High-Frequency SMPS Transformer is a robust and efficient power transformer designed for switch-mode power supply applications requiring a 42V high-voltage output. Built on a PQ3230 MnZn ferrite core, this transformer is optimized for high-frequency operation and is fully compatible with OB2269CP controller IC–based SMPS designs. With a power handling capacity of up to 150 watts and two auxiliary / bias windings, this transformer is well suited for LED power supplies, audio amplifiers, industrial SMPS units, chargers, and other high-voltage DC applications. High-grade copper windings ensure low losses, stable performance, and dependable operation over a wide temperature and frequency range.

Features:

1. High-frequency SMPS transformer rated up to 150W
2. Designed for 42V output with optimized current handling
3. Compatible with OB2269CP PWM controller IC
4. PQ3230 MnZn ferrite core for high efficiency and low core loss
5. Includes primary, secondary, and two auxiliary / bias windings
6. Wide operating frequency range for flexible SMPS designs
7. High-grade copper windings for improved thermal and electrical performance
8. 8-pin through-hole mounting for strong mechanical stability
9. Suitable for LED drivers, audio amplifiers, power adapters, and industrial SMPS applications

Specifications:

• Transformer Type: High-Frequency SMPS Transformer
• Model Number: PQ3230
• Core Material: MnZn (Manganese-Zinc) Ferrite
• Phase: Single Phase
• Power Rating: Up to 150W
• Output Voltage: 42V (DC after rectification)
• Maximum Secondary Current: Up to 4A
• Primary Winding: ~400mH, (18 + 18) Turns, 6 × 0.3mm Copper Wire
• Primary Bias Winding: 5 Turns, 1 × 0.3mm Copper Wire
• Secondary Winding: 12 Turns, 4 × 0.5mm Copper Wire
• Secondary Bias Winding: 5 Turns, 2 × 0.3mm Copper Wire
• Working Frequency: 20kHz – 500kHz
• Winding Material: High-Grade Copper
• Number of Pins: 8
• Mounting Style: Through-Hole
• Operating Temperature: –15°C to +105°C
• Dimensions (L × B × H): 35mm × 32mm × 31mm
• Weight: 78.5g

Package Includes:

1 × PQ3230 150W High-Frequency SMPS Transformer - 42V Output (OB2269CP Compatible)
