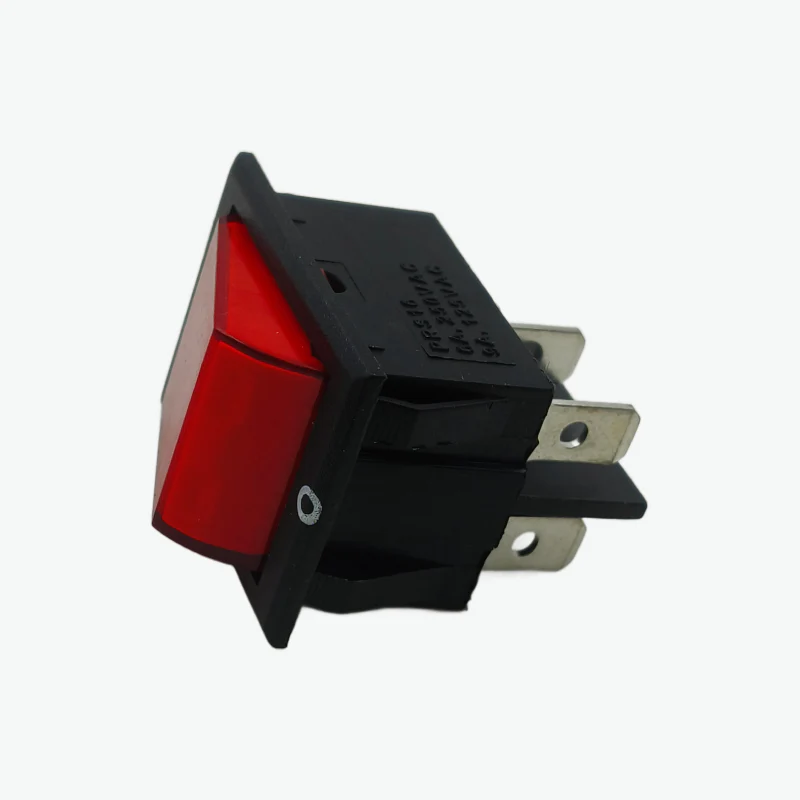

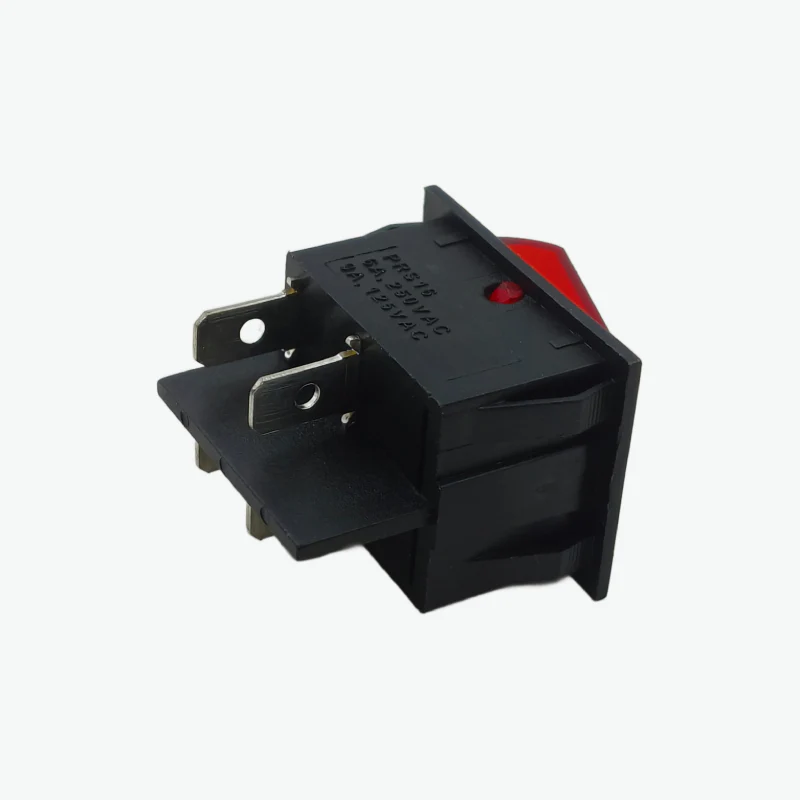

The Miniature DPST Rocker Switch – 6A 250V AC, 4-Pin (Illuminated Option) is a versatile switch designed for high-current AC applications in industrial and electronic equipment. Its double-pole single-throw (DPST) design allows it to control two separate circuits simultaneously. The switch features four pins for secure wiring and can include optional illumination or indicator functionality. Push-on and solder terminals make installation quick and reliable, while its compact rocker design is suitable for panel mounting.

Features:

1. Rated up to 6A at 250V AC for high-current applications
2. Double-pole single-throw (DPST) operation for controlling two circuits simultaneously
3.  4-pin configuration for secure and versatile wiring
4. Compact miniature rocker design suitable for panel mounting

5. Push-on and solder terminals for easy installation

6. Durable construction for long-term reliability


Specifications:

• Model: Miniature DPST Rocker Switch – 4-Pin (Illuminated Option)
• Type: DPST Rocker Switch
• Number of Pins: 4
• Rated Voltage: 250V AC
• Rated Current: 6A

• Switch Operation: ON/OFF (DPST)

• Illumination: Illuminated & Indicators

• Panel Cut-Out: 22mm × 30mm

• Bezel Size: 25mm × 33mm

• Terminals: Push-On and Solder

• Body Material: Plastic and Metal

• Operating Temperature Range: -20°C to +70°C

Package Includes:

1 × 4 Pin DPST Rocker Switch - 6A 250V AC (Illuminated Option)
