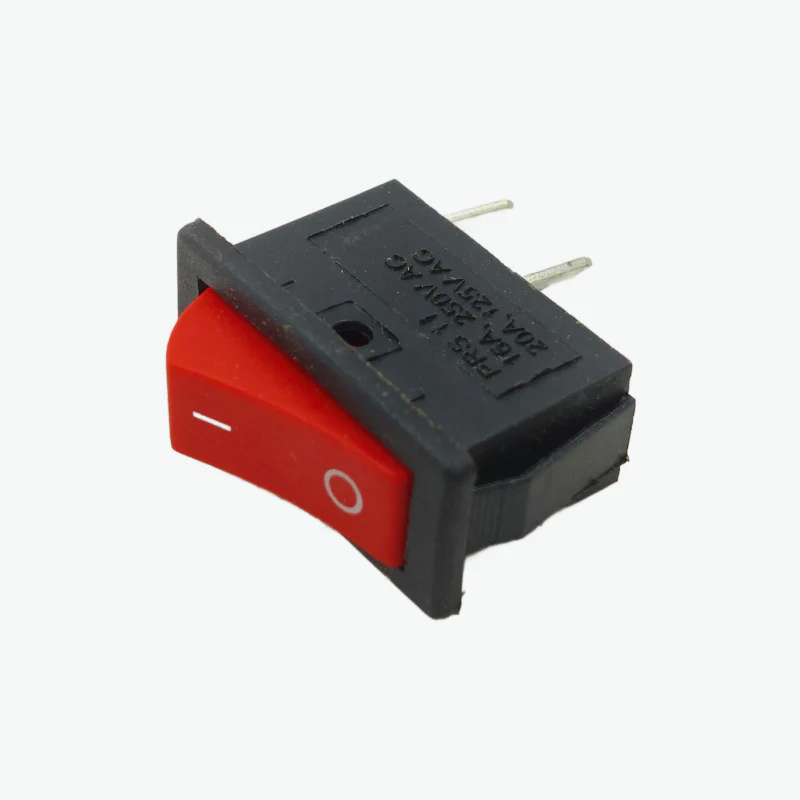

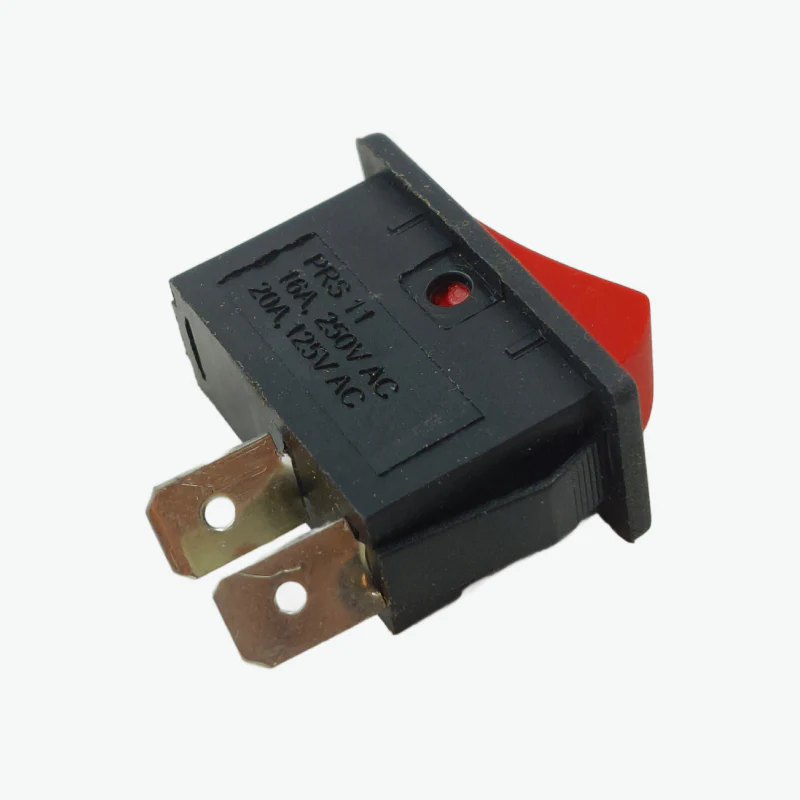

The 2-Pin SPST ON-OFF Rocker Switch is a durable and reliable switch designed for high-current AC applications. It features a compact rocker design with single-pole functionality, providing simple ON/OFF control. Non-illuminated and easy to install, this switch is ideal for power equipment, appliances, and industrial control panels. It offers both push-on and solder terminals for versatile connectivity.

Features:

1. Rated up to 16A at 250V AC for high-current applications
2. Single-pole switch with choice of ON/OFF functions
3. Non-illuminated for simple, robust operation
4. Rocker design suitable for panel mounting
5. Push-on and solder terminals for flexible installation
6. Durable construction for long-term reliability


Specifications:

• Model: 2-Pin SPST ON-OFF Rocker Switch
• Type: SPST ON-OFF Rocker Switch
• Number of Pins: 2
• Rated Voltage: 250V AC
• Rated Current: 16A
• Panel Cut-Out: 11.5mm × 28.2mm
• Bezel Size: 14mm × 30.4mm
• Terminals: Push-On and Solder
• Body Material: Plastic and Metal
• Operating Temperature Range: -20°C to +70°C

Package Includes:

1 × 2-Pin SPST ON-OFF Rocker Switch – 16A 250V
