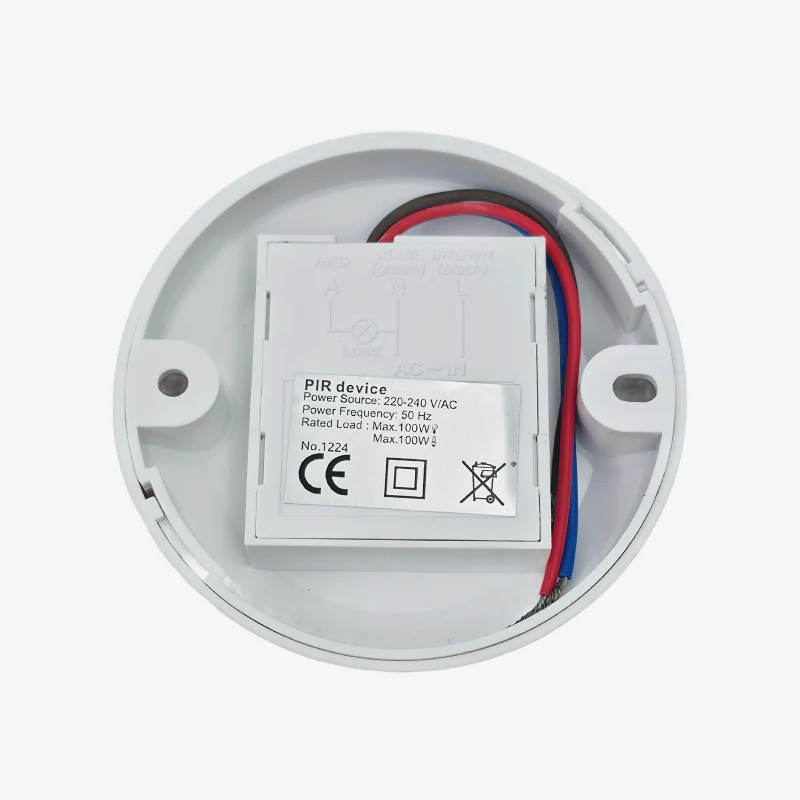

The Human Infrared Ceiling Mount PIR Motion Sensor Module provides automatic motion-activated switching for lights and small appliances. Its infrared sensing detects human movement across a full 360° area with consistent accuracy. Adjustable delay and lux controls let you set exactly when the sensor should activate, keeping everyday use simple and efficient.

Features:

1. Good sensitivity infrared detector with SMT IC.

2. Automatically identifies day and night based on ambient light.

3. Triggers load instantly when human motion is detected.

4. Easy installation, wide usage and supports power indication and detection indication.

Specifications:

• Power Sourcing: 220V~240V AC

• Power Frequency: 50 Hz

• Ambient Light: <10~1000 LUX Adjustable

• Time Delay: Min 10sec±3 sec / Max 7 min±2min

• Rated Load: 100W Incandescent Lamp / 100W Energy-saving Lamp

• Detection Range: 360°

• Working Temperature: -20°C~+40°C

• Working Humidity: <93% RH

• Installing Height: 2.2~4 m

• Detection Motion Speed: 0.6~1.5 m/s

• Detection Distance: Max 6m (<24°C)

Package Includes:

1 × Human Infrared Ceiling Mount PIR Motion Sensor Module 220 - 240V AC 100W
