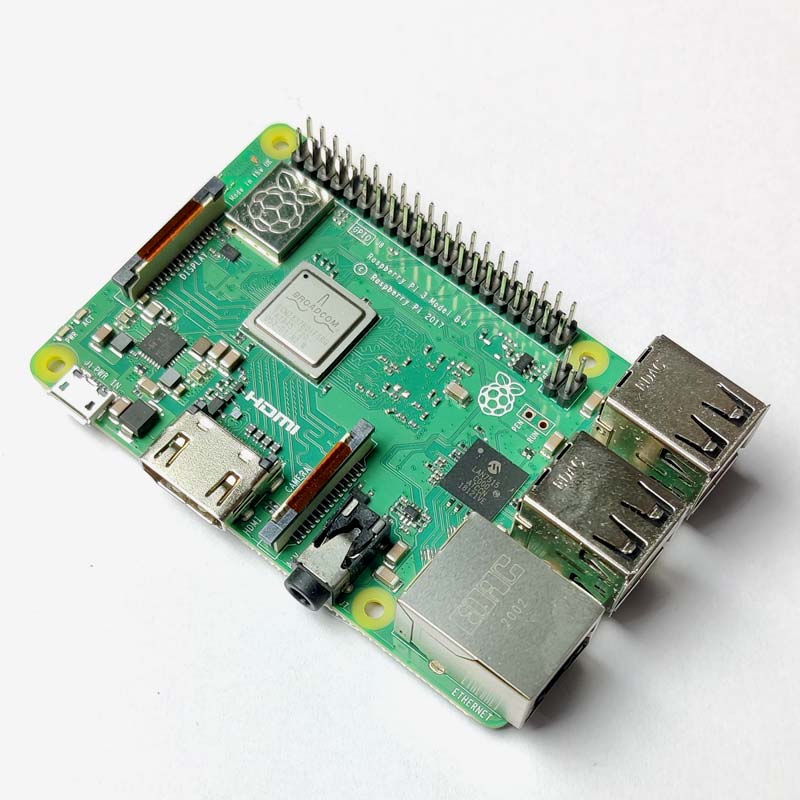

Raspberry Pi 3 model B+ is the latest version in the Raspberry Pi 3 family. It is a low-cost miniature computer that allows people to learn computing and programming languages through fun and practical projects.

Product Description of Raspberry Pi 3 Model B+

It comes equipped with a 64-bit quad processor that operates at 1.4 GHz. This model has forty GPIO pins, four USB 2.0 ports, it supports Bluetooth Low Energy, Wireless LAN, and Ethernet for connectivity. Pi can be used in a number of ways including, a web server, a game server, a desktop computer, a robot controller and the list goes and on.



Specifications of the Raspberry Pi 3 Model B+

• Processer : Broadcom BCM2837B0, Cortex – A53 64 bit SoC @1.4 GHz
• Memory: 1 GB LPDDR2 SDRAM
• Supports Advanced Video Coding /H.264/MPEG-4
• Supports Graphics Programming with OpenGL ES1.1, 2.0 graphics
• Supports Micro SD card
• Has an extended 40-pin GPIO header
• Uses 4x USB 2.0 ports, Gigabit Ethernet, 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE for connectivity
• Has a full size HDMI, MIPI DSI display card port, MIPI CSI Camera port for video and sound
• Has a 4 pole stereo output and composite video port
• Operating temperature: 0 to 50 degree C
• Input Power : 5V/2.5A DC via micro USB connector ; 5V via GPIO header ; PoE



Additional Resources

• Raspberry Pi 3 Model B+ product brief
• Beginner Raspberry Pi projects

Package Includes

1 x Raspberry Pi 3 Model B+
