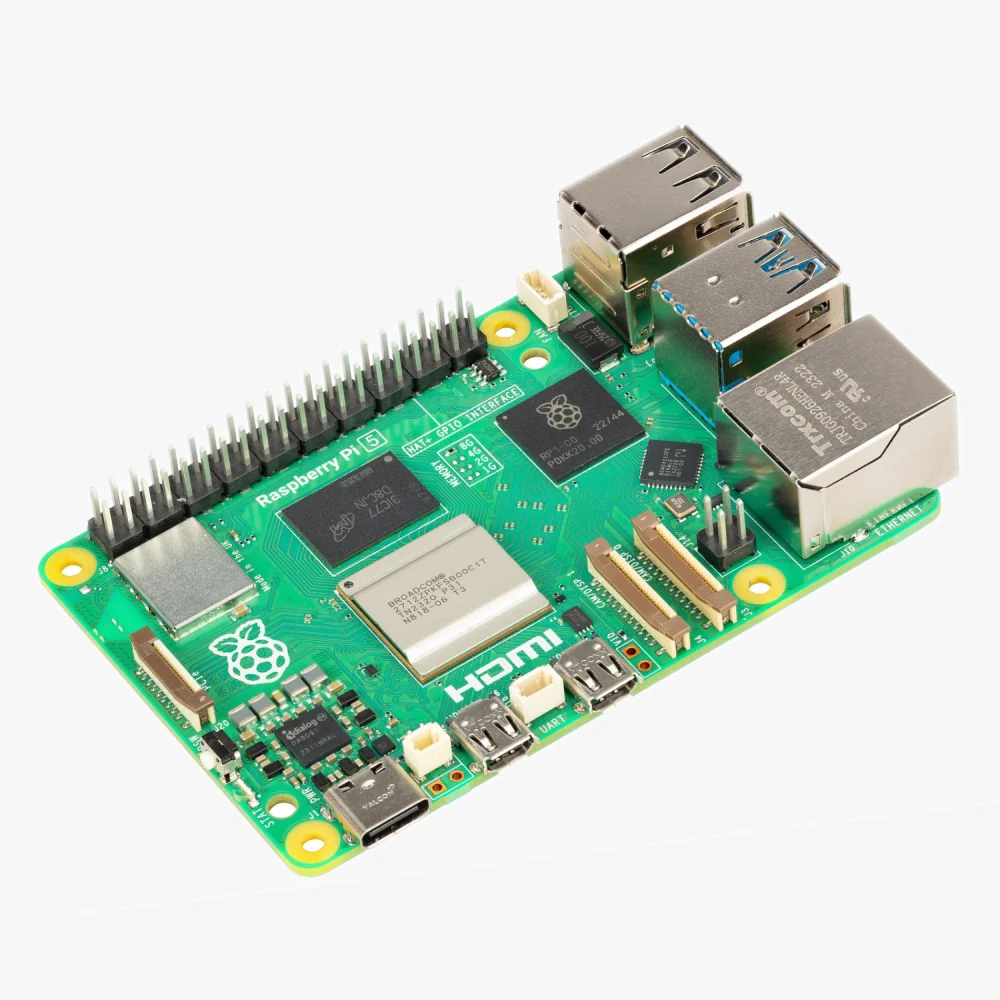

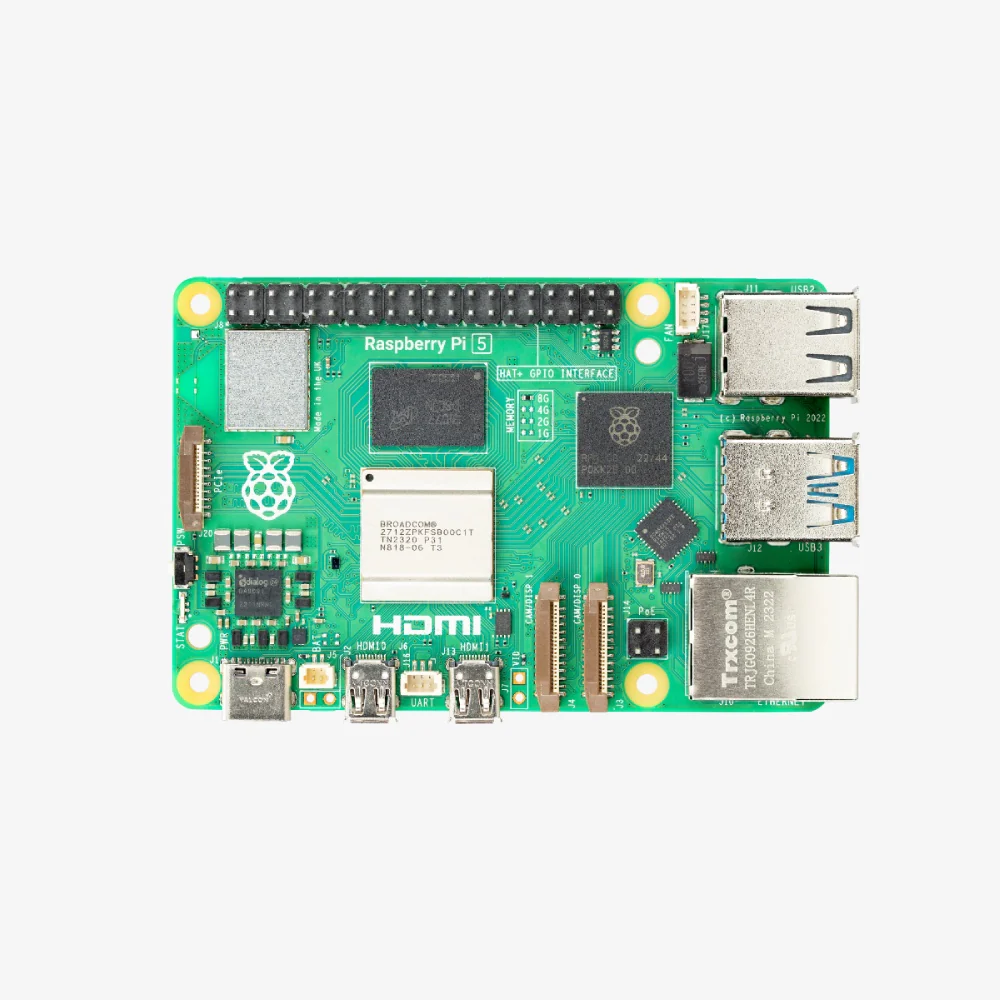

Raspberry Pi 5 Model B features a powerful 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, delivering a remarkable 2–3× increase in CPU performance compared to the Raspberry Pi 4.

This model also boasts an enhanced graphics experience with its 800MHz VideoCore VII GPU, supports dual 4Kp60 display output via HDMI, and incorporates a newly designed Raspberry Pi Image Signal Processor for advanced camera capabilities. These upgrades ensure a smooth desktop experience and open new possibilities for industrial applications.

Features:

• Processor: 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU with 512KB L2 cache and a 2MB shared L3 cache
• Graphics: VideoCore VII GPU
• Memory: 2GB LPDDR4X-4267 SDRAM
• Connectivity:
  • 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi
  • Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• Storage: Micro SD card slot supporting high-speed SDR104 mode
• USB Ports:
  • 2 x USB 3.0 ports (5Gbps)
  • 2 x USB 2.0 ports
• Networking: Gigabit Ethernet with PoE+ support (requires PoE+ HAT)
• Expansion:
  • 2 x 4-lane MIPI camera/display transceivers
  • PCIe 2.0 x1 interface for fast peripherals
• Power: 5V/5A DC power with Power Delivery (PD) support
• GPIO: Raspberry Pi standard 40-pin header
• Additional Features:
  • Real-Time Clock (RTC) with external battery
  • On-board power button

Package Includes:

1 x Raspberry Pi 5 Model B - 2 GB RAM
