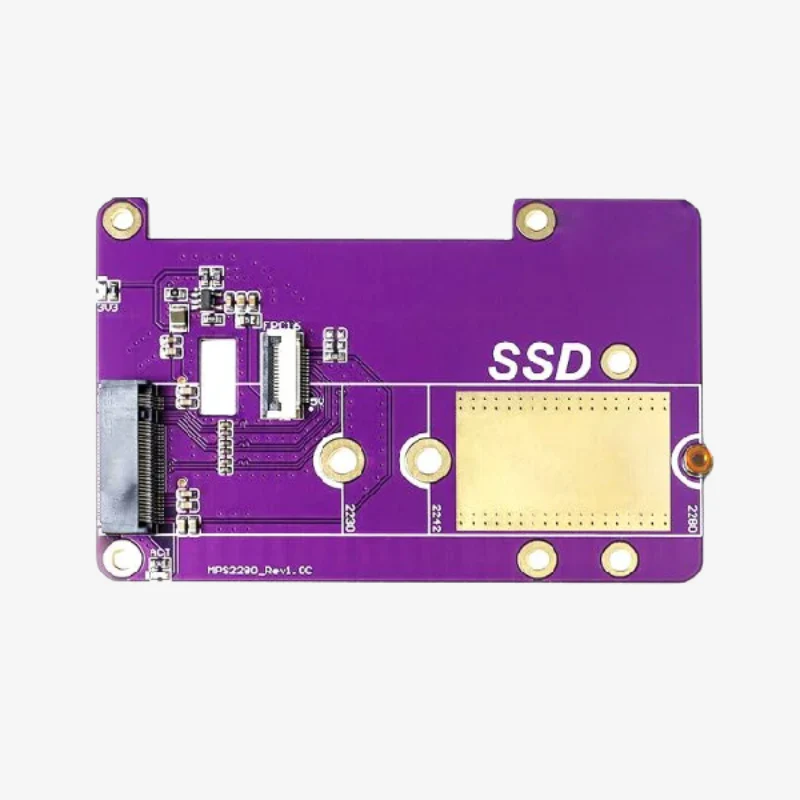

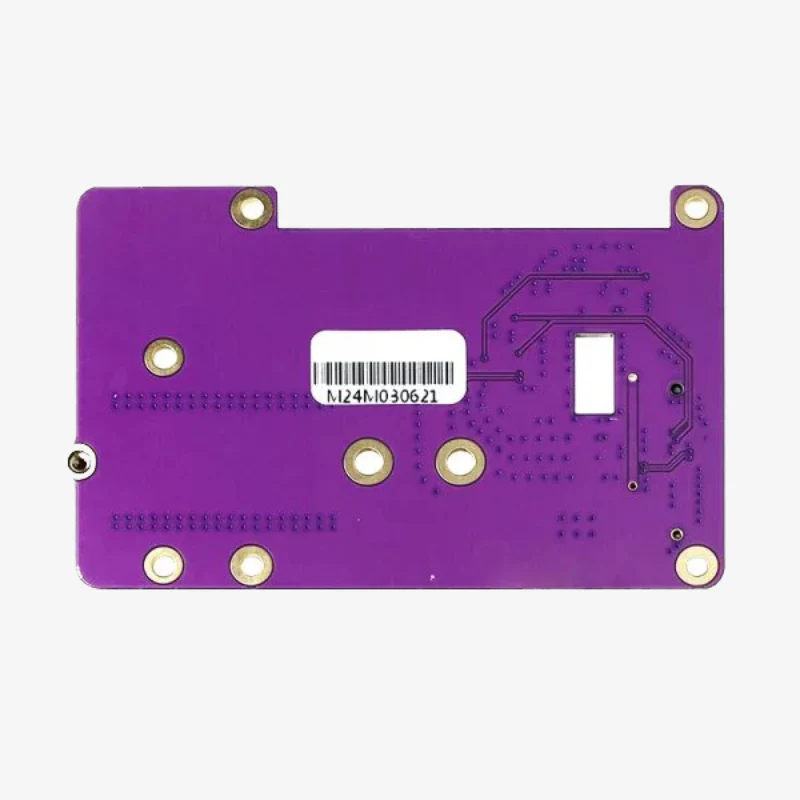

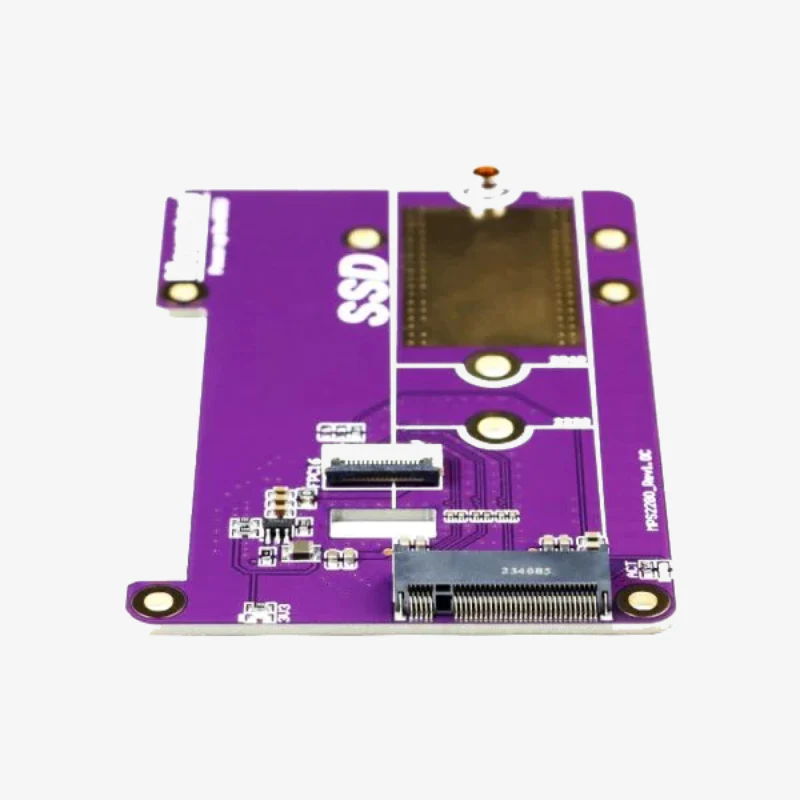

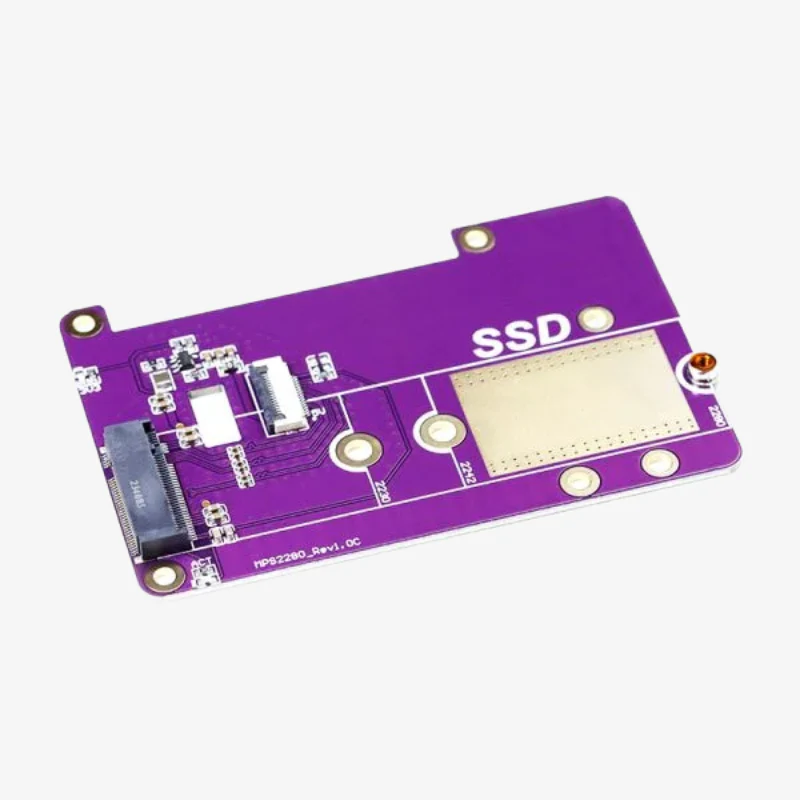

Elecrow Raspberry Pi 5 PCIe to M.2 NVMe SSD Expansion Board is a high-performance storage expansion board designed for the Raspberry Pi 5. Featuring PCIe and M.2 M-key interfaces, it enables the use of high-speed M.2 NVMe SSDs, enhancing storage performance and data transfer speeds. The board supports booting the system from the NVMe SSD or using it solely for storage expansion. Crafted with premium electronic components and immersion gold technology, this board ensures reliable operation and durability. Its concave top design allows easy access to the 40-pin GPIO, facilitating flexible integration in projects.

Features :

1. Supports PCIe and M.2 M-key interfaces for high-speed NVMe SSDs.
2. Supports booting the system from the NVMe SSD or using it for storage expansion only.
3. Concave top design provides easy access to the 40-pin GPIO.
4. Crafted with high-quality electronic components and immersion gold technology,

5. Dual LED indicators for operation status.
6. Supports M.2 2280 SSDs, enhancing storage scalability and performance.

Specifications:

• Interface: PCIe and M.2 M-key
• Compatible SSD: 2280, 2242, 2230 (M.2)
• Working Input Current: 3.3V 1.5A
• Dimensions: 56mm × 85mm
• Weight: 18.6g

Package Includes:

1 × Raspberry Pi 5 PCIe to M.2 NVMe SSD Expansion Board
