RC522 RFID 13.56MHZ Reader Writer Module / MFRC-522 Reader with Card & Tag

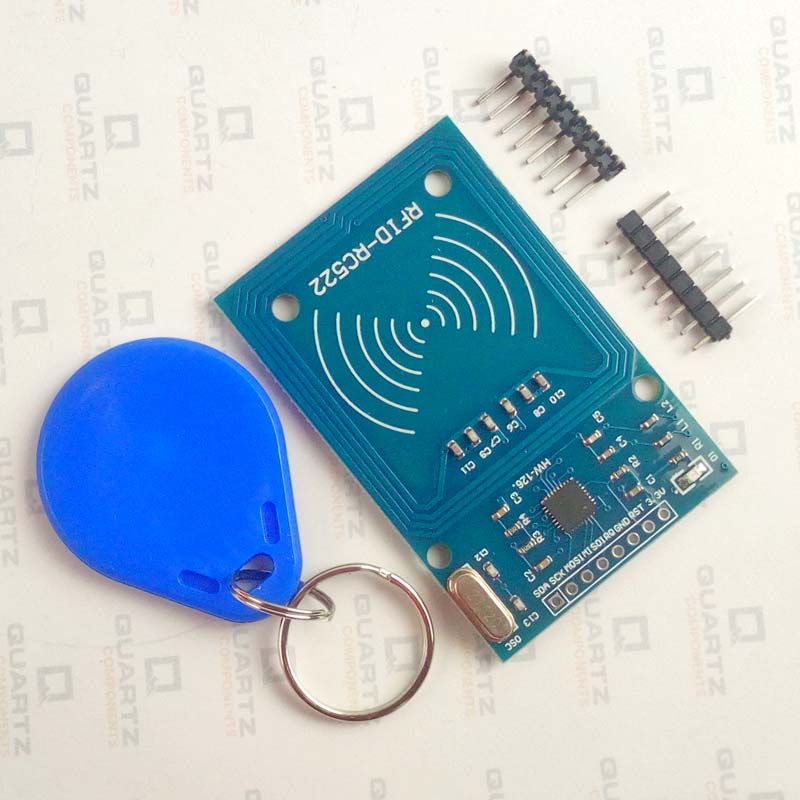

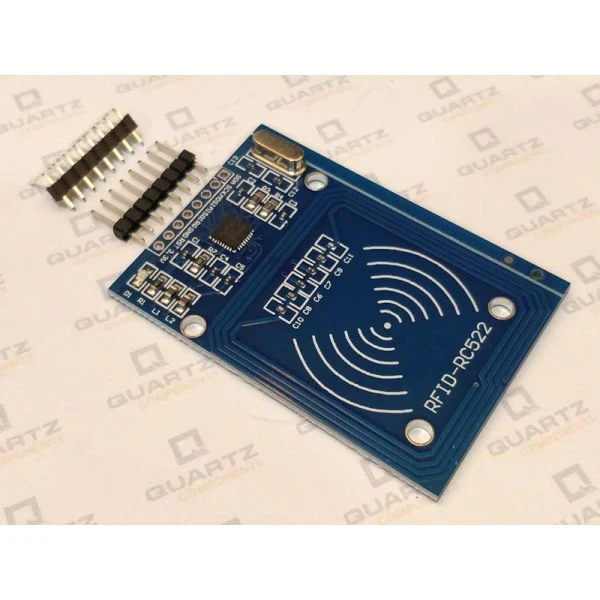

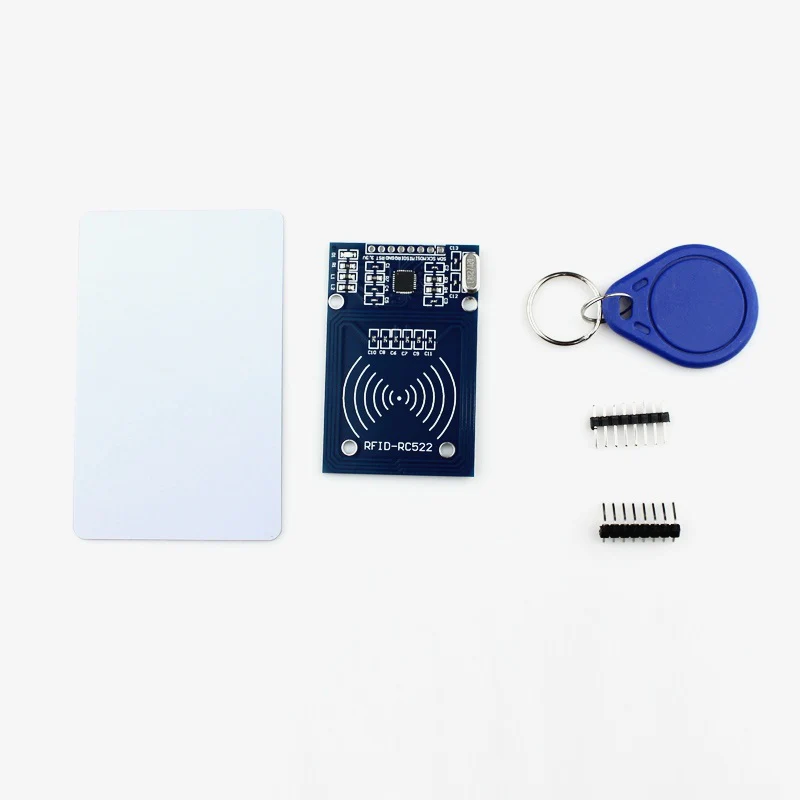

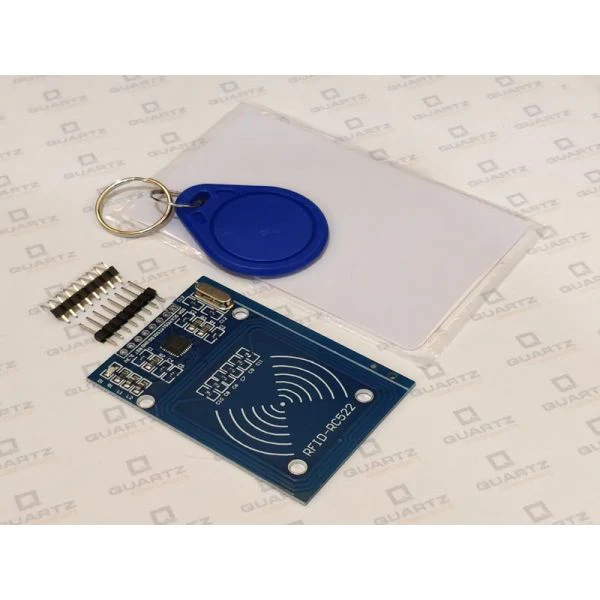

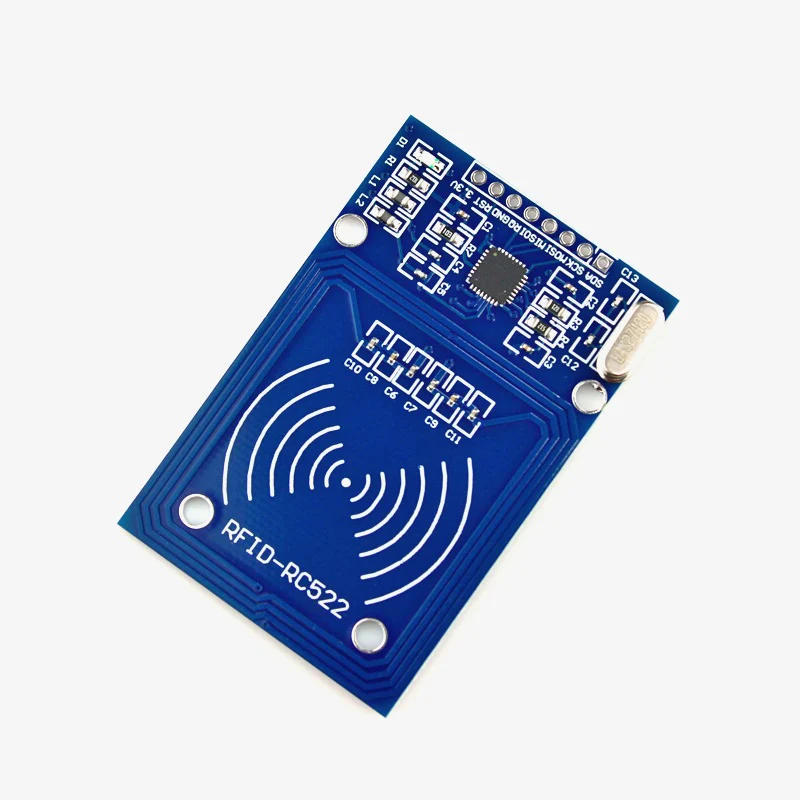

The Package includes a RC522 Reader/Write module with a RFID card and RFID keychain. The RC522 operates on 13.56MHz enabling two way (read and write) contact less communication with a transmission rate up to 424 Kbit/s. It also supports the ISO 14443A/MIFARE standards. It is commonly used in attendance systems and security systems to provide authorization. The specifications of the module are given below.
RC522 Module Specifications:
- Operating Voltage: 3.3V
- Operating Current: 13-26 mA
- Operating Frequency: 13.56MHz
- Communication Interface: SPI protocol
- Reader Distance: less than 5cm
- Data Transfer Rate: 10Mbit/sec(max)
The Package includes a RC522 Reader/Write module with a RFID card and RFID keychain. The RC522 operates on 13.56MHz enabling two way (read and write) contact less communication with a transmission rate up to 424 Kbit/s. It also supports the ISO 14443A/MIFARE standards. It is commonly used in attendance systems and security systems to provide authorization. The specifications of the module are given below.
RC522 Module Specifications:
- Operating Voltage: 3.3V
- Operating Current: 13-26 mA
- Operating Frequency: 13.56MHz
- Communication Interface: SPI protocol
- Reader Distance: less than 5cm
- Data Transfer Rate: 10Mbit/sec(max)
Original: $0.80
-65%$0.80
$0.28Description
The Package includes a RC522 Reader/Write module with a RFID card and RFID keychain. The RC522 operates on 13.56MHz enabling two way (read and write) contact less communication with a transmission rate up to 424 Kbit/s. It also supports the ISO 14443A/MIFARE standards. It is commonly used in attendance systems and security systems to provide authorization. The specifications of the module are given below.
RC522 Module Specifications:
- Operating Voltage: 3.3V
- Operating Current: 13-26 mA
- Operating Frequency: 13.56MHz
- Communication Interface: SPI protocol
- Reader Distance: less than 5cm
- Data Transfer Rate: 10Mbit/sec(max)
