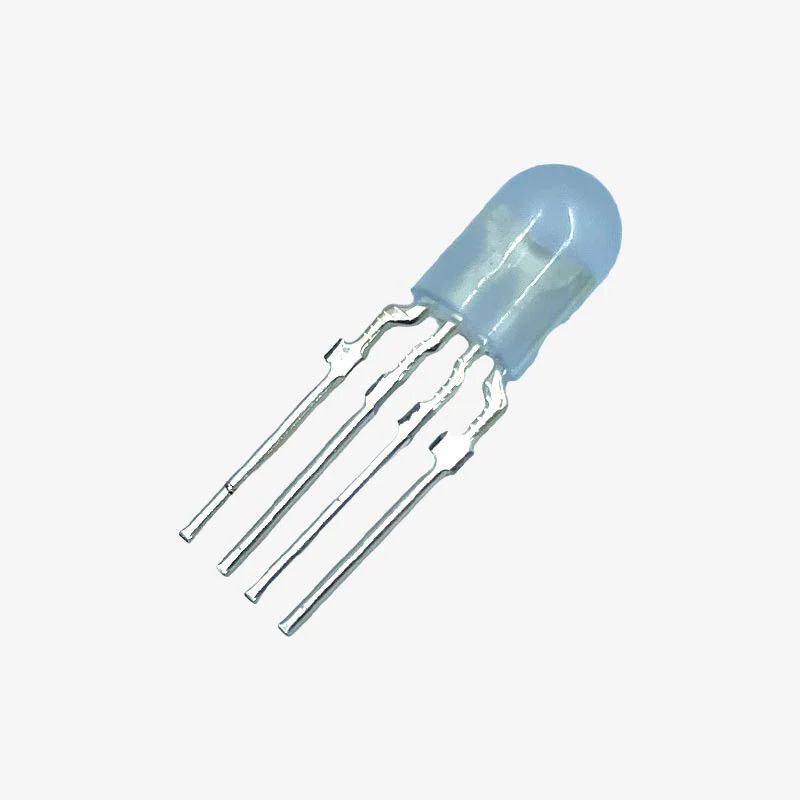

RGB LED - 5mm - Common Anode is a versatile multicolor LED designed for creating a wide range of colors using red, green, and blue light combinations. It features a 4-pin configuration with a common anode and is available in a diffused or water clear package for uniform light output. With high brightness, low power consumption, and wide operating conditions, it is ideal for decorative lighting, indicators, and embedded electronics projects.

Features:

• High Brightness
• Low Current Consumption
• Large Operating Voltage Range
• Wide Operating Conditions
• Color: Red, Green & Blue

Specifications of RGB LED:

• Ideal for Multicolor displays
• Low current consumption
• 5mm diameter
• LED Type : Water Clear/ Diffused
• View Angle: Water Clear 360 degrees; Diffused 250 degrees
• Luminous Flux :4-5LM
• Operating Temperature is -24 - 85 °C
• Wavelength :- RED : 625nm; Green: 520nm; Blue: 467nm
• Forward Current :-  Red: 20 mA; Green: 20 mA; Blue: 20 mA

• Forward Voltage :- Red: 1.8V – 2.2V;  Green: 3.0V – 3.4V;  Blue: 3.0 V – 3.4V

• Luminous intensity :- Red: 800 mcd;  Green: 4000 mcd;  Blue: 900 mcd

• To prolong the lifespan of the LED, the input current should be below 20mA.

Package Includes:

1pc of RGB LED - 5mm.
