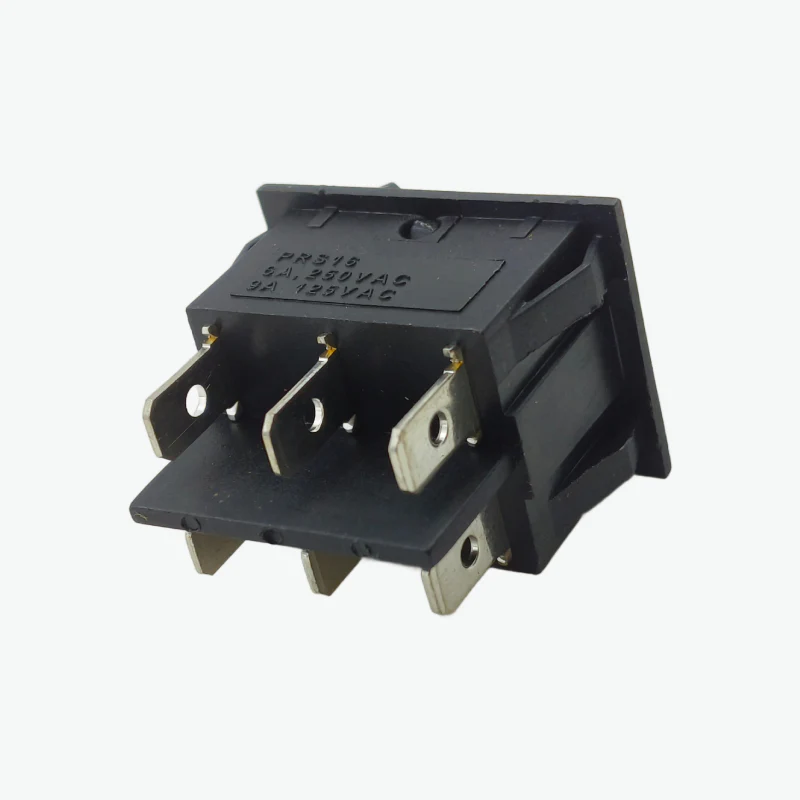

The Miniature Rocker Switch is designed for heavy-duty AC applications in industrial and electronic equipment. Its double-pole double-throw (DPDT) configuration allows control of two separate circuits with two switching positions, providing enhanced flexibility and functionality. With a sturdy 6-pin design and compact rocker body, it’s ideal for reliable performance in panel-mounted setups.

Features:

1. Rated for 6A at 250V AC, suitable for high-current applications
2. DPDT operation allows control of two circuits with two positions
3. 6-pin configuration ensures secure and versatile wiring options
4. Compact miniature rocker design for easy panel mounting
5. Push-on and solder terminals for quick installation
6. Durable body construction ensures long-term reliability

Specifications:

• Model: Miniature Rocker Switch – 6-Pin (DPDT)
• Switch Type: DPDT Rocker
• Number of Pins: 6
• Rated Voltage: 250V AC
• Rated Current: 16A
• Switch Operation: ON/ON or ON/OFF/ON (DPDT)
• Panel Cut-Out: 22mm × 30mm
• Bezel Size: 25mm × 33mm
• Terminals: Push-On and Solder
• Body Material: Plastic and Metal
• Operating Temperature Range: -20°C to +70°C

Package Includes:

1 × 6-Pin Miniature Rocker Switch – 16A 250V AC (DPDT)
