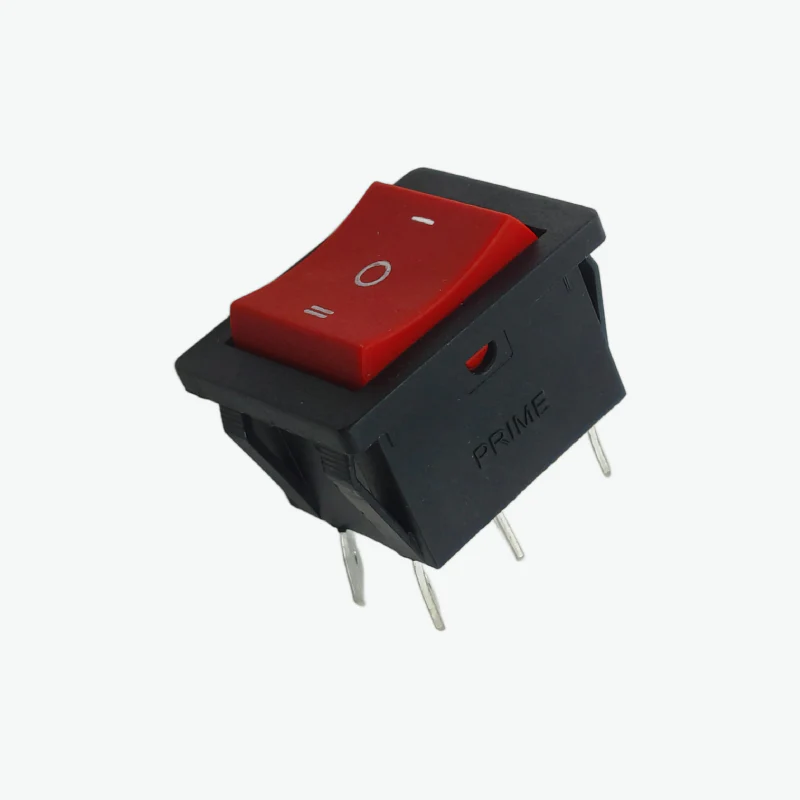

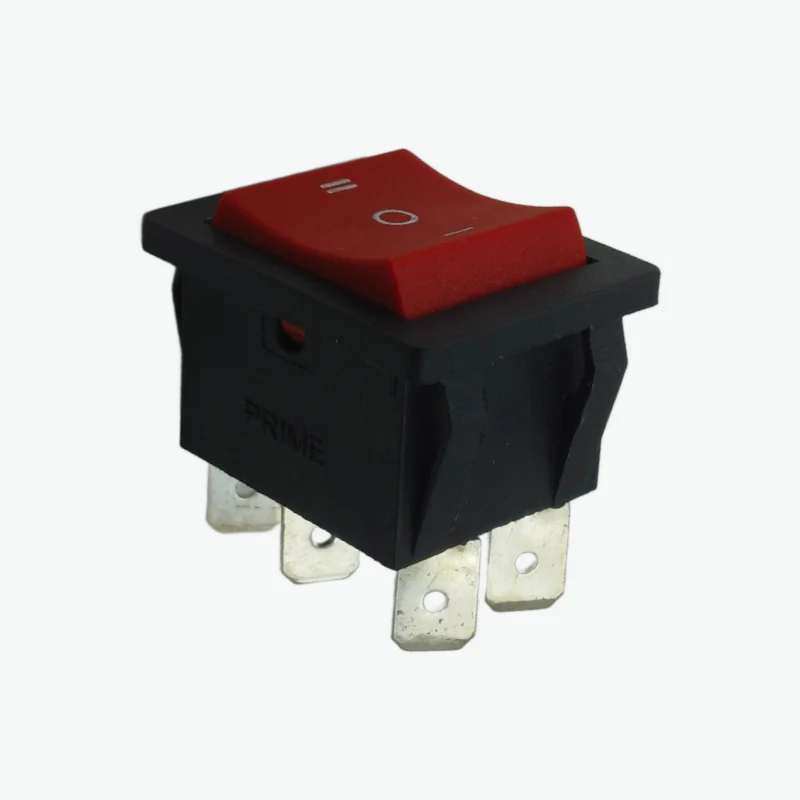

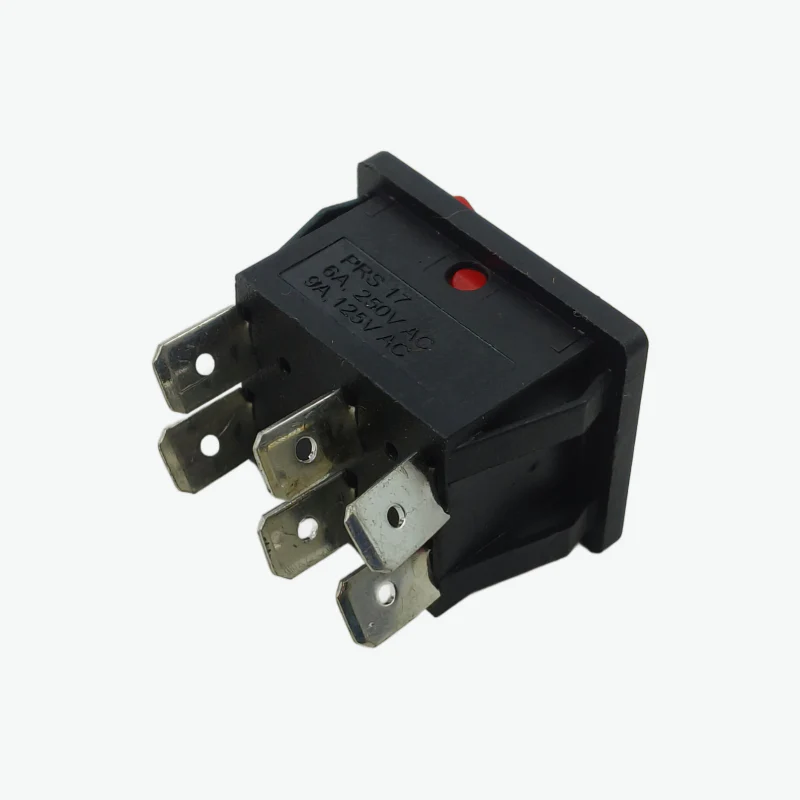

The DPDT Rocker Switch is designed for reliable high-current AC applications in industrial and electronic equipment. Its double-pole double-throw (DPDT) functionality allows control of two separate circuits with two switching positions. With a compact rocker design and six-pin configuration, it’s ideal for panel mounting and versatile wiring setups.

Features:

1. Rated for 6A at 250V AC, suitable for high-current applications
2. DPDT operation allows control of two circuits with two positions
3. 6-pin configuration ensures secure and flexible wiring
4. Compact miniature rocker design for easy panel mounting
5. Push-on and solder terminals for quick installation
6. Durable construction for long-lasting performance

Specifications:

• Model: Miniature DPDT Rocker Switch – 6-Pin
• Switch Type: DPDT Rocker
• Number of Pins: 6
• Rated Voltage: 250V AC
• Rated Current: 6A
• Switch Operation: ON/OFF or Two-Position DPDT
• Panel Cut-Out: 22mm × 30mm
• Bezel Size: 25mm × 33mm
• Terminals: Push-On and Solder
• Body Material: Plastic and Metal
• Operating Temperature Range: -20°C to +70°C

Package Includes:

1 × 6-Pin DPDT Rocker Switch – 6A 250V AC
