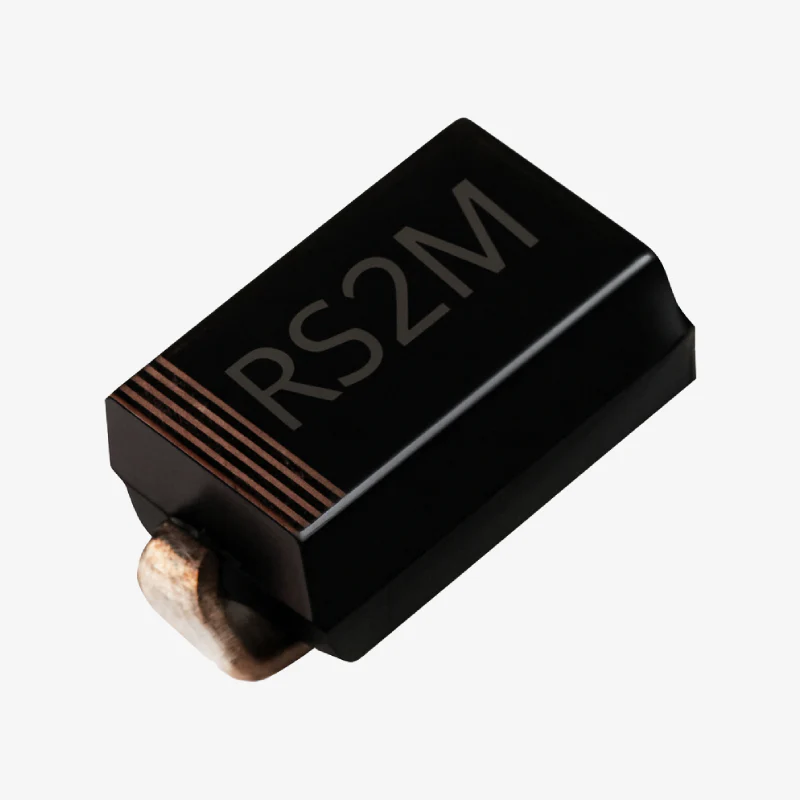

The RS2M Fast Recovery Rectifier Diode - (SMA) SMD Package is designed for efficient AC to DC rectification in compact surface-mount applications. Its low-profile SMA package and glass passivated chip junction ensure reliable performance with fast switching and high surge tolerance. Ideal for power supplies, inverters, and automated assembly circuits.

CLICK HERE FOR DATASHEET

Features:

1. Low-profile SMA package for easy automated placement

2. Glass passivated chip junction for durability

3. Fast switching for high-efficiency rectification

4. High forward surge capability with high-temperature soldering tolerance

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V

• Maximum RMS Voltage (VRMS): 700 V

• Maximum DC Blocking Voltage (VDC): 1000 V

• Maximum Average Forward Rectified Current (IF(AV)): 2.0 A

• Peak Forward Surge Current (IFSM): 50 A

• Maximum Instantaneous Forward Voltage (VF) at 2 A: 1.3 V

• Maximum Reverse Current (IR) at 25°C: 5 µA

• Maximum Reverse Current (IR) at 125°C: 50 µA

• Reverse Recovery Time (trr): 500 ns

• Typical Junction Capacitance (CJ): 11 pF

• Operating Temperature Range (TJ, TSTG): -55°C to +150°C

Package Includes:

10pcs × RS2M Fast Recovery Rectifier Diode - (SMA) SMD Package
