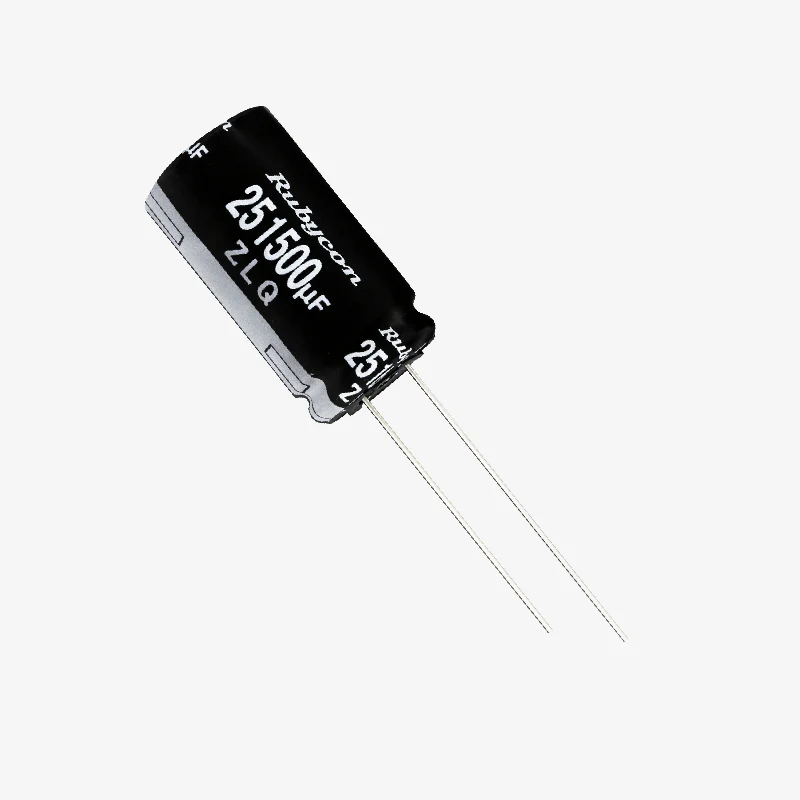

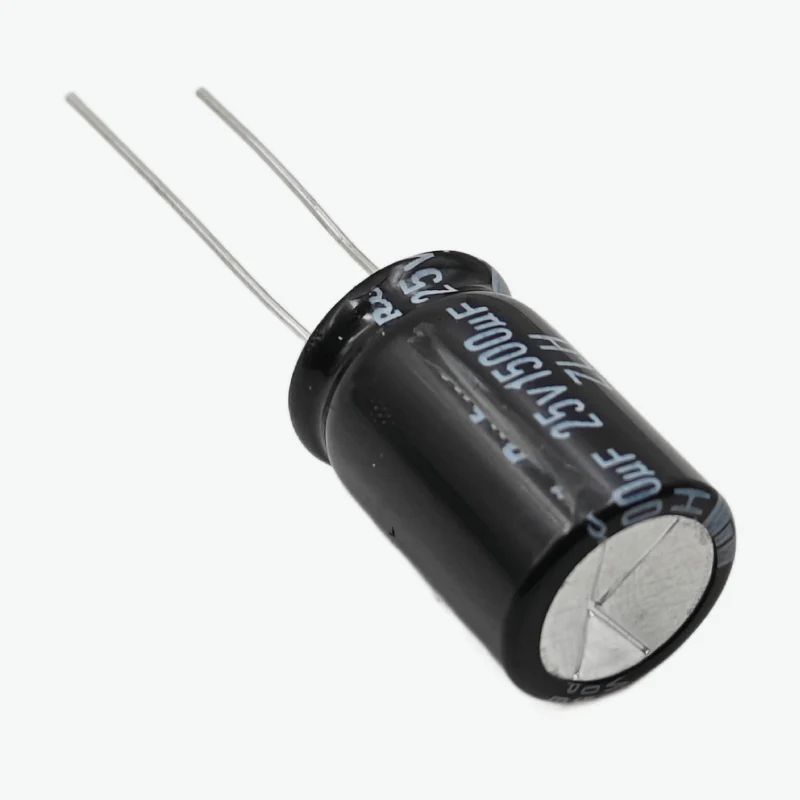

Rubycon 1500 µF 25V Aluminum Electrolytic Capacitor - Through Hole Package is a high-performance polarized aluminum electrolytic capacitor designed for low-impedance and high-ripple-current applications, offering a capacitance of 1500 microfarads with a 25V DC rating, very low ESR of 17 mΩ at 100 kHz, high ripple current capability of 2.48 A at 100 kHz, and a compact radial through-hole can package, making it ideal for power supply smoothing and demanding consumer and industrial electronic circuits.

Features:

1. 1500 µF high capacitance for effective smoothing and bulk energy storage
2. 25V rated voltage for low- to medium-voltage applications
3. Low ESR of 17 mΩ at 100 kHz for improved efficiency
4. High ripple current handling of 2.48 A at 100 kHz
5. Compact 12.5×20 mm aluminum can construction
6. Radial leaded design for through-hole mounting
7. Reliable Rubycon ZLH series performance

Specifications:

• Product Type: Aluminum Electrolytic Capacitor
• Model No.: 25ZLH1500MEFC12.5X20
• Manufacturer: Rubycon
• Series: ZLH
• Capacitance: 1500 µF
• Rated Voltage: 25 V DC
• Tolerance: ±20%
• ESR: 17 mΩ @ 100 kHz
• Ripple Current: 2.48 A @ 100 kHz
• Mounting Type: Through Hole
• Lead Pitch: 5.00 mm
• Case Size: 12.5 × 20 mm
• Polarity: Polarized
• Applications: Power supply filtering, DC smoothing, voltage regulation circuits, industrial electronics, consumer electronics

Package Includes:

1 × 25ZLH1500MEFCG412.5X20-Rubycon-1500uF 25V 17mΩ@100kHz ±20% 2.48A@100kHz Plugin,D12.5xL20mm Aluminum25ZLH1500MEFC12.5X20
