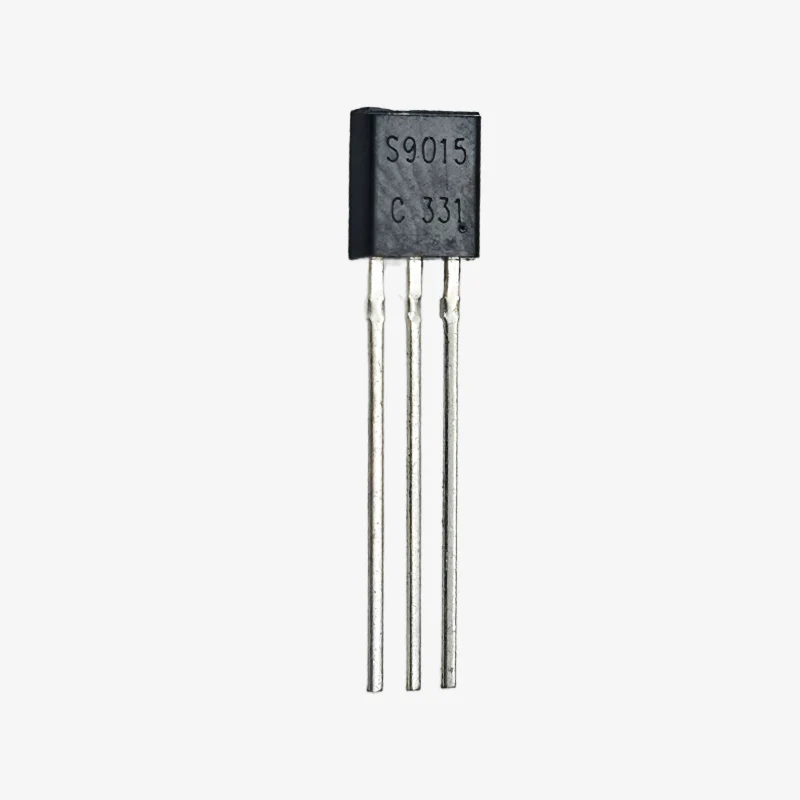

S9015 100mA PNP Transistor - TO-92 DIP Package
The S9015 is a low-power PNP transistor designed for general-purpose amplification and switching applications. With a maximum collector current of 0.1A, it is well-suited for signal amplification, low-current switching, and control circuits. Commonly used in audio devices, small-signal processing, and consumer electronics, the S9015 provides reliable performance in a compact TO-92 through-hole package, ensuring easy integration into breadboards and PCB assemblies.
Features:
- Low-power PNP transistor for signal amplification and switching
- Suitable for audio circuits and low-current control applications
- Stable electrical characteristics with low noise
- Compact TO-92 package for easy soldering and PCB mounting
- Ideal for hobby electronics and small consumer devices
Specifications:
- Type: PNP
- Collector-Emitter Voltage (Vceo): 45V
- Collector-Base Voltage (Vcbo): 50V
- Emitter-Base Voltage (Vebo): 5V
- Collector Current (Ic): 100mA (max)
- DC Current Gain (hFE): 120 – 400 (typical)
- Package: TO-92 through-hole
- Pin Configuration: Emitter, Collector, Base
- Operating Temperature: -55°C to +150°C
Package Includes:
1 × S9015 100mA PNP Transistor - TO-92 DIP Package
