Jiabaida (JBD) LiFePo4 15S 48V 100A BMS is a high-performance Battery Management System built on the ZP16S005 hardware, tailored for 15-cell LiFePo4 battery packs in high-load applications. It features passive balancing, and robust multi-level protection including overcharge, over-discharge, overcurrent, and short-circuit safeguards. Designed to deliver reliable and efficient battery management, this BMS is ideal for electric vehicles, solar energy storage, and high-capacity power tools.

Jiabaida (JBD) LiFePo4 15S 48V 100A BMS Features:

• High 100A continuous discharge capability
• Intelligent passive cell balancing
• Protection against over-voltage, under-voltage, overcurrent, and short circuit
• ZP16S005 hardware ensures stable, accurate operation
• Ideal for high-demand LiFePo4 battery systems

Jiabaida (JBD) LiFePo4 15S 48V 100A BMS Specification:

Specification	Value
Model	ZP16S005
Supported Cells	15S (LiFePo4)
Nominal Voltage (V)	48V
Charge Voltage (V)	54.75V
Charge Current (A)	30A
Continuous Discharge Current (A)	100A
Balance Current (mA)	30 ±5
Overcharge Detect Voltage (V)	3.75 ±0.05
Overcharge Release Voltage (V)	3.55 ±0.05
Over Discharge Detect Voltage (V)	2.20 ±0.1
Over Discharge Release Voltage (V)	2.50 ±0.1
Operating Temperature (°C)	-20 to 70
Dimensions (mm)	160 x 65 x 8



Package Includes:

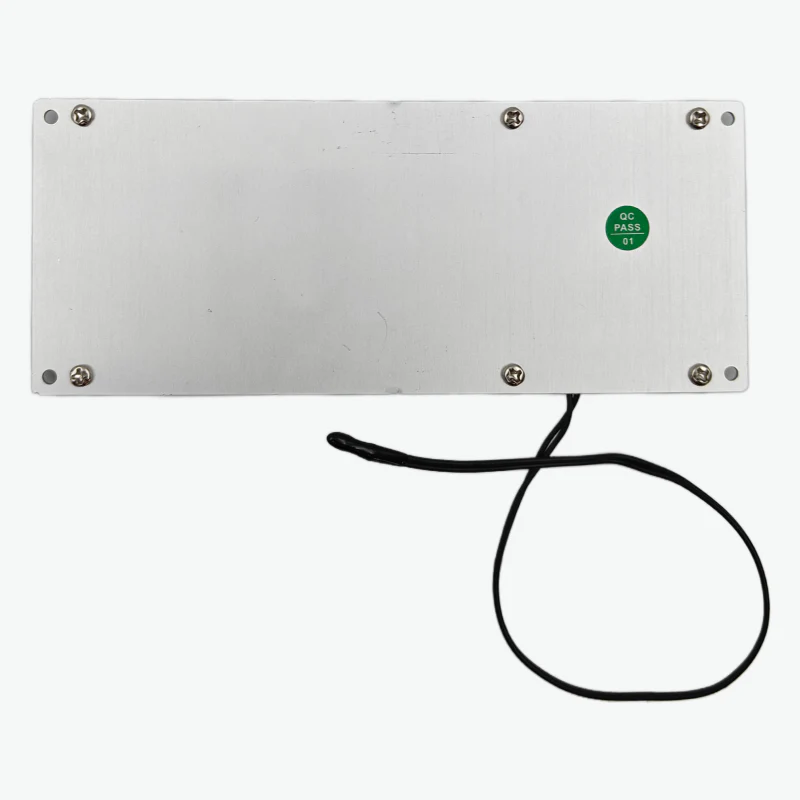

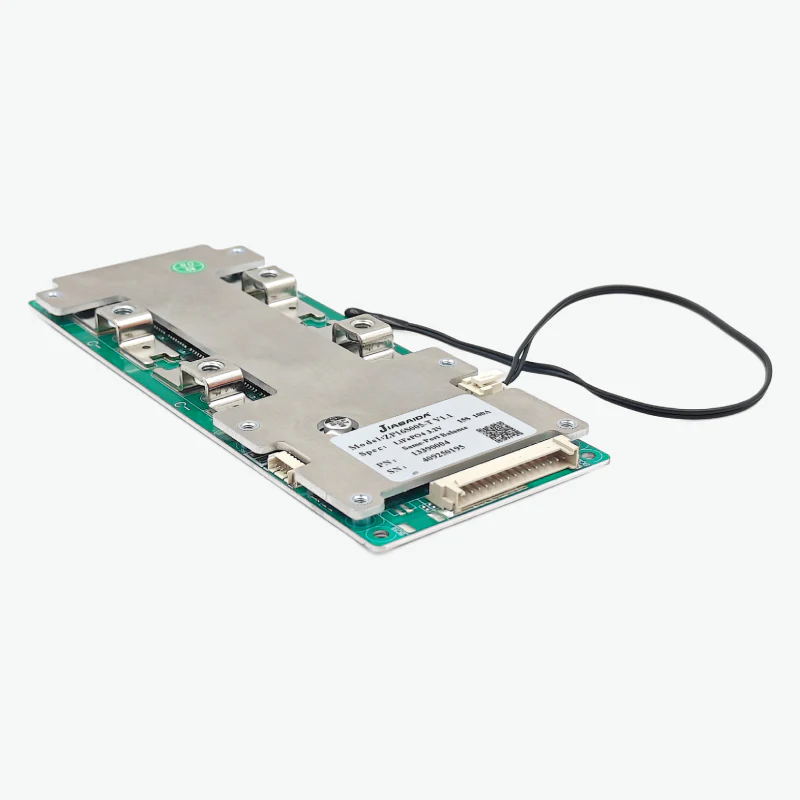

1 x Jiabaida (JBD) LiFePo4 15S 48V 100A Battery Management System - BMS Protection Board
