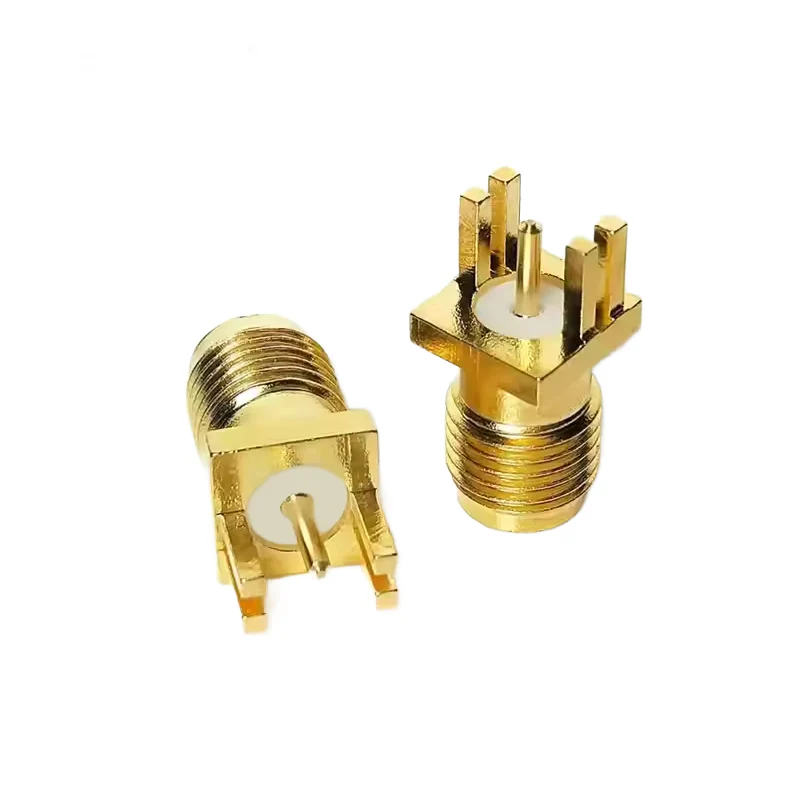

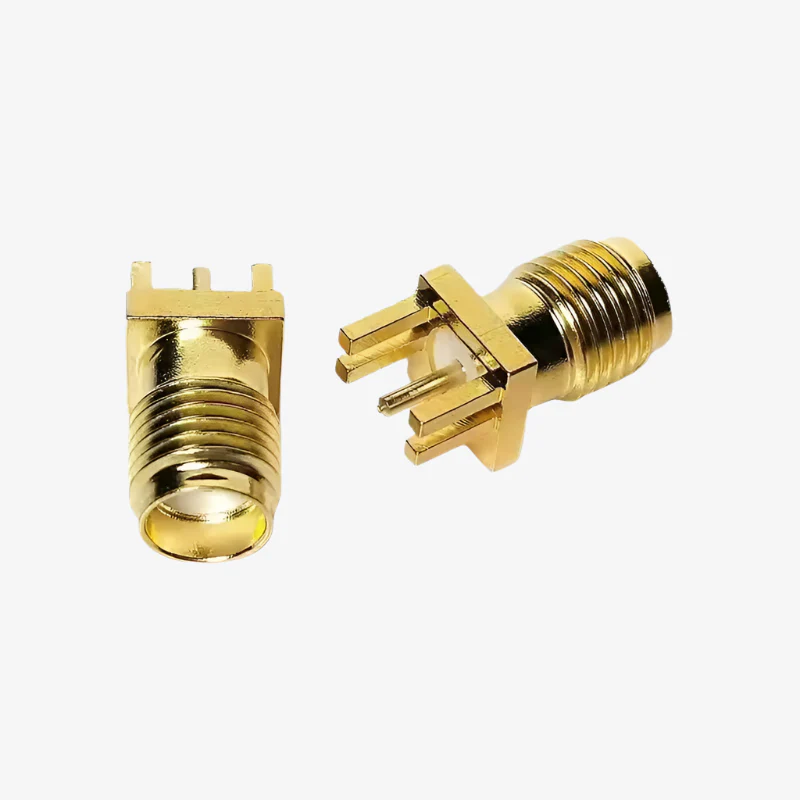

The SMA Female Straight Edge PCB Mount Connector is designed for seamless integration with 1.6mm thick PCBs, offering a reliable and secure RF connection for various high-frequency applications. This connector is ideal for RF projects involving antennas, transmitters, receivers, or test equipment. Its gold-plated contacts ensure low signal loss and corrosion resistance, making it a dependable component in wireless and RF communication setups.

Features of SMA Female Straight Edge PCB Mount Connector:

1. SMA Female connector with straight edge mount
2. Specifically designed for 1.6mm thick PCBs
3. Provides robust RF connection up to GHz frequency range
4. Gold-plated contacts for excellent conductivity and durability
5. Easy to solder and mount on the PCB edge
6. Suitable for antennas, Wi-Fi, GPS, GSM, and RF modules

Specifications of SMA Female Straight Edge PCB Mount Connector:

• Connector Type: SMA Female (Straight)
• Mount Type: Edge mount for 1.6mm PCB
• Frequency Range: DC to 6GHz
• Impedance: 50 ohms
• Contact Material: Brass with gold plating
• Body Material: Brass with nickel plating
• PCB Thickness Compatibility: 1.6mm
• Operating Temperature: -40°C to +85°C

Package Includes:

1 x SMA Female Straight Edge PCB Mount Connector for 1.6mm PCB
