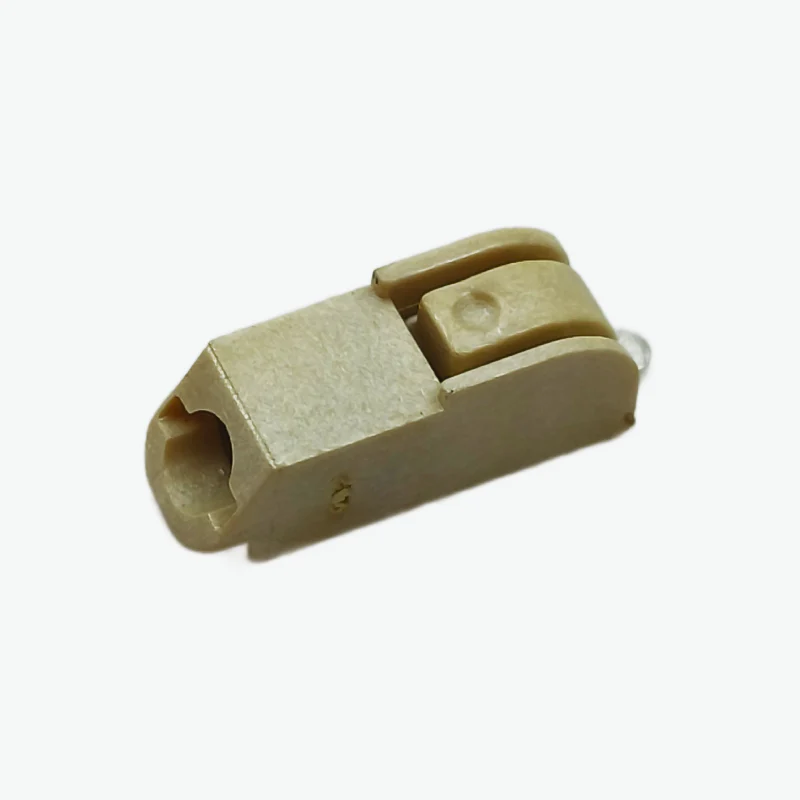

The 1 Terminal SMD PCB Terminal Block features advanced Push-in CAGE CLAMP connection technology for fast and reliable PCB wiring. With a convenient push-button for removing fine-stranded wires and a low profile of just 4.5mm, it’s ideal for compact electronic assemblies requiring durable and secure connections.

Features:

1. Single-terminal surface mount connector with Push-in CAGE CLAMP technology
2. Tool-free insertion of solid and ferruled conductors
3. Push-button operation for easy removal of fine-stranded wires
4. Compact low-profile design (4.5mm tall)
5. Secure and vibration-resistant connections
6. Ideal for automation modules, signal boards, and compact electronics

Specifications:

• Type: SMD PCB Terminal Block (Push-in CAGE CLAMP)
• Number of Terminals: 1
• Pin Spacing (Pitch): 4.00mm
• Rated Current: 6A
• Rated Voltage: 250V AC
• Wire Size: 24–18 AWG
• Dimensions (W × H): 3.9 × 4.5mm
• Mounting Type: Surface Mount (SMD)
• Connection Type: Push-in with Push-button Release
• Housing Material: Flame-retardant Thermoplastic
• Applications: PCB signal modules, automation systems, compact electronic boards

Package Includes:

1 × 1 Terminal SMD PCB Terminal Block (Push-in CAGE CLAMP Type) – 4.00mm Pitch
