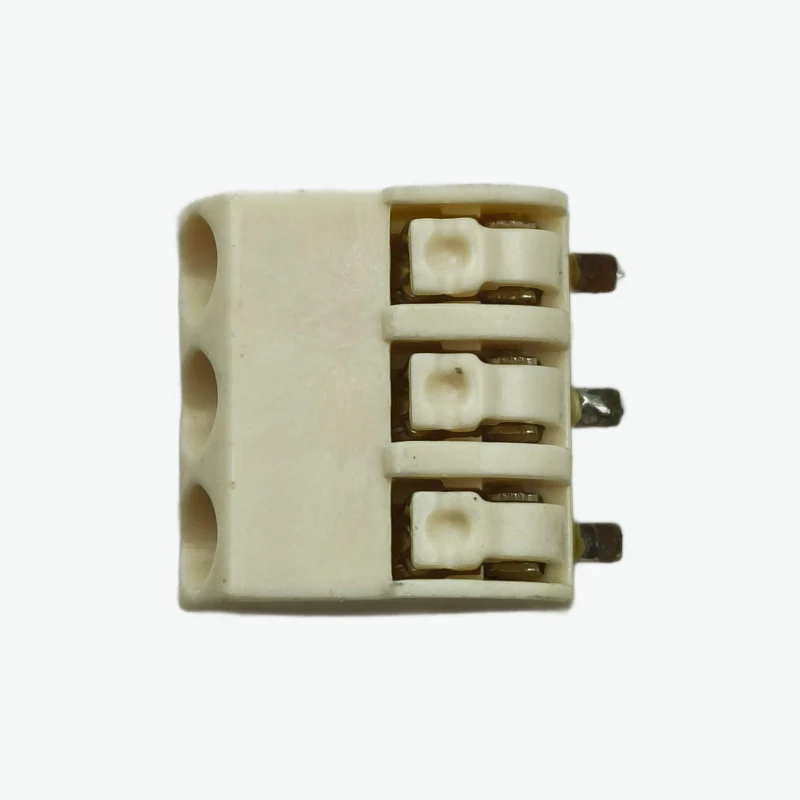

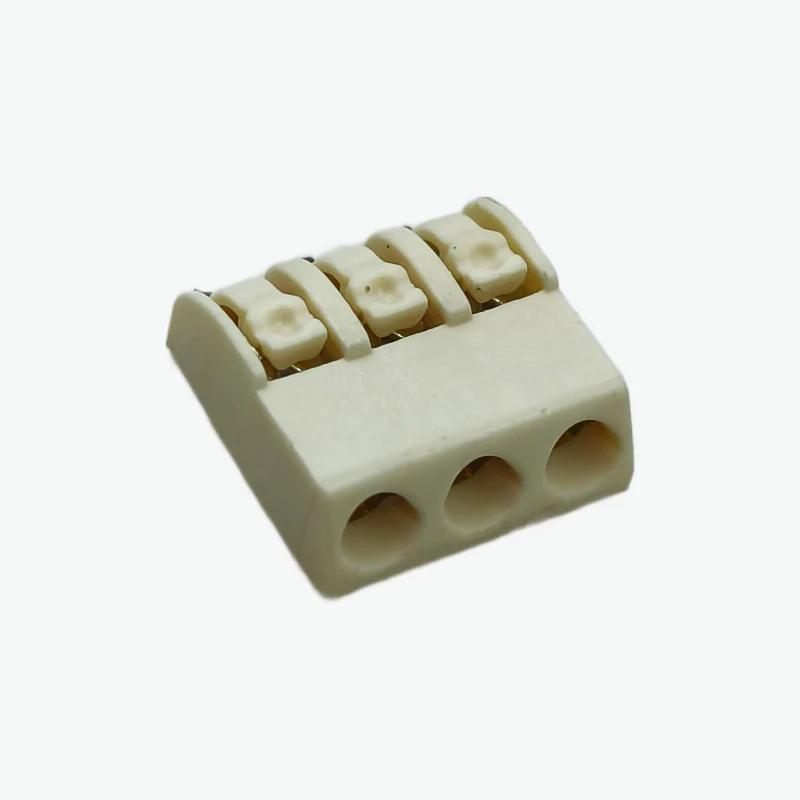

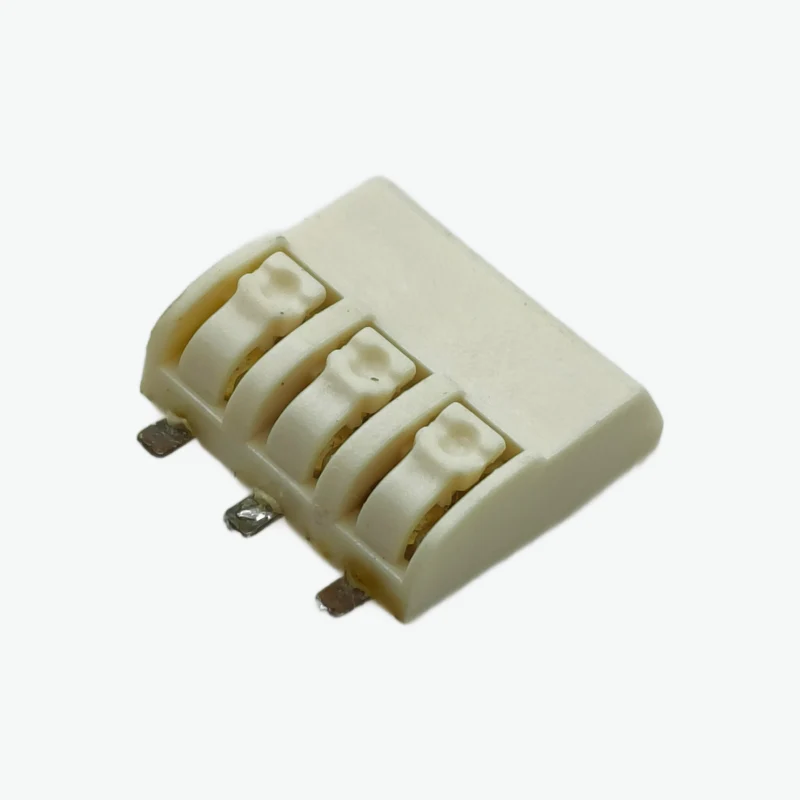

The 3 Terminal SMD PCB Terminal Block offers secure Push-in CAGE CLAMP connections for multi-wire PCB circuits. Its integrated push-buttons allow tool-free removal of conductors, while the 4.5mm low-profile design makes it ideal for compact and high-density electronic boards.

Features:

1. Three-terminal SMD connector with Push-in CAGE CLAMP technology
2. Push-buttons for quick and easy conductor removal
3. 4.00mm pitch for safe spacing and excellent insulation
4. Compact and low-profile design (4.5mm tall)
5. Durable thermoplastic housing for long-term performance
6. Perfect for signal distribution, automation systems, and PCB modules

Specifications:

• Type: SMD PCB Terminal Block (Push-in CAGE CLAMP)
• Number of Terminals: 3
• Pin Spacing (Pitch): 4.00mm
• Rated Current: 6A
• Rated Voltage: 250V AC
• Wire Size: 24–18 AWG
• Dimensions (W × H): 3.9 × 4.5mm per terminal
• Mounting Type: Surface Mount (SMD)
• Connection Type: Push-in with Push-button Release
• Housing Material: Flame-retardant Thermoplastic
• Applications: PCB power and signal boards, automation systems, compact electronic devices

Package Includes:

1 × 3 Terminal SMD PCB Terminal Block (Push-in CAGE CLAMP Type) – 4.00mm Pitch
