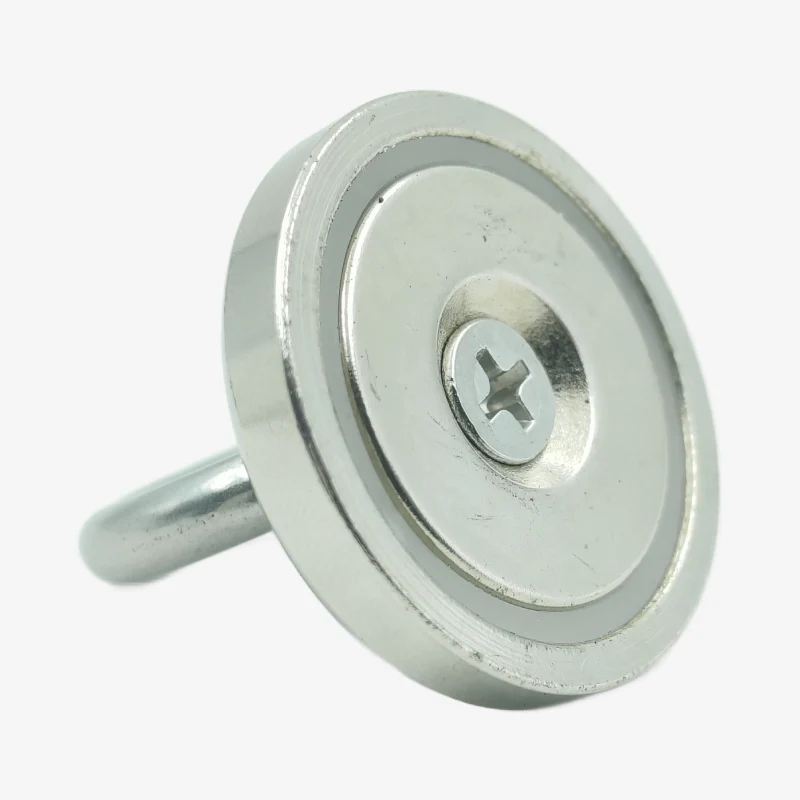

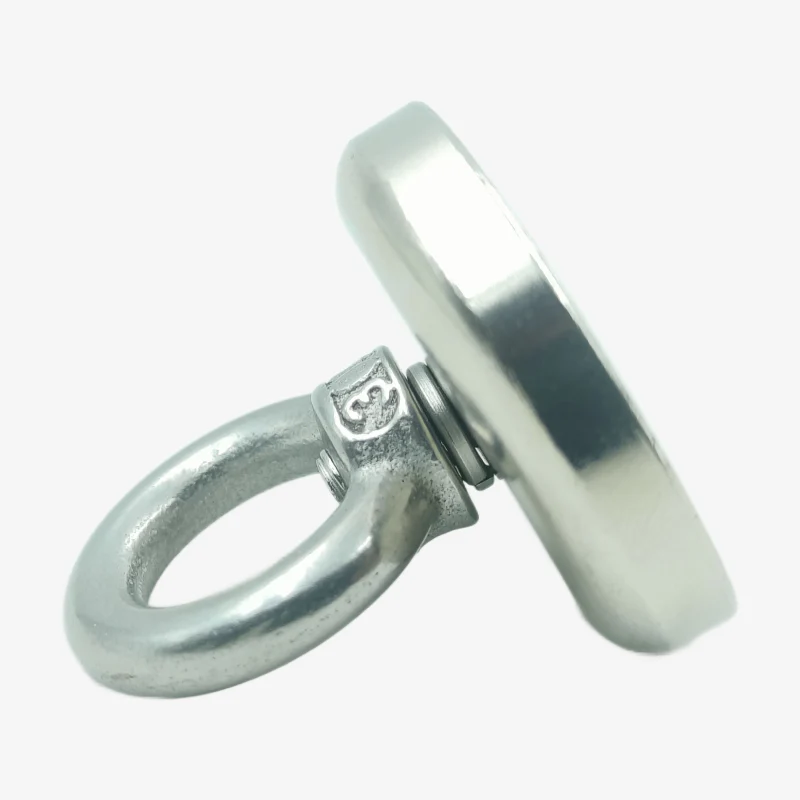

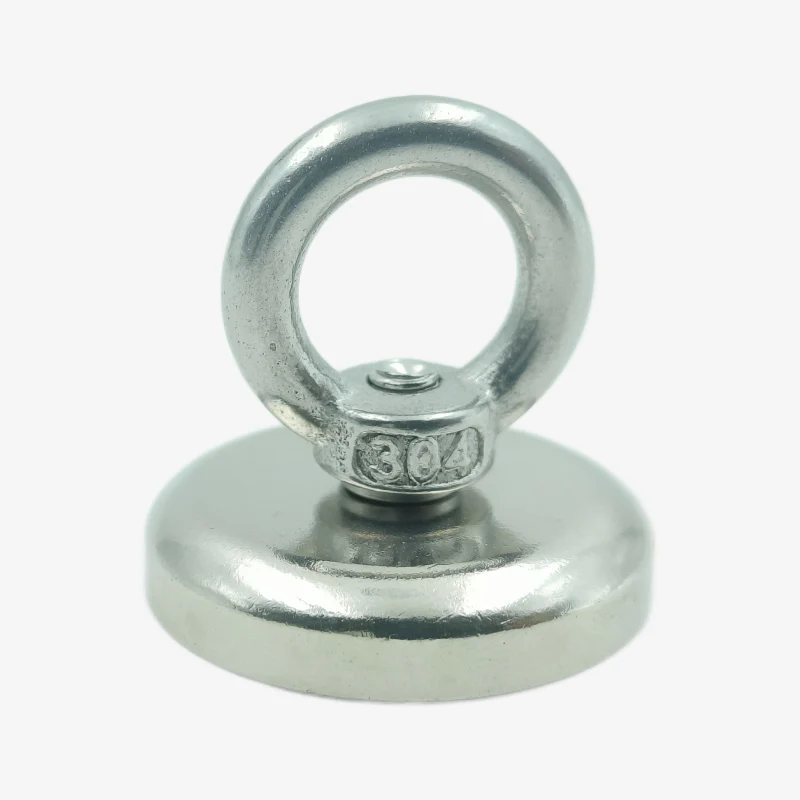

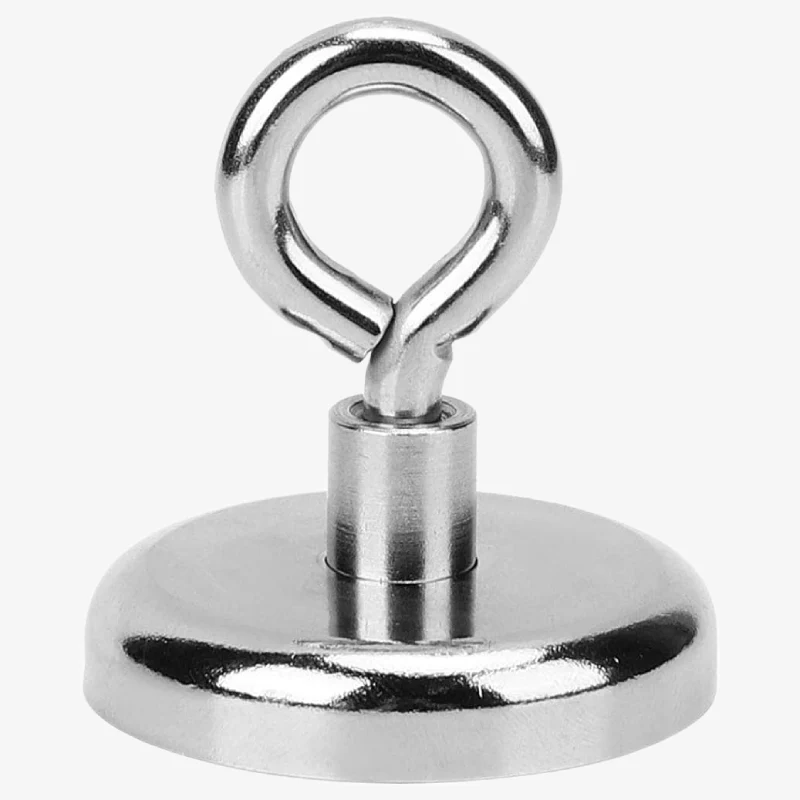

Neodymium (NdFeB) SNJ 32 D-Hook Magnet- High-Strength Rare Earth Magnet
The Neodymium (NdFeB) SNJ 32 D-Hook Magnet is a powerful neodymium rare-earth hook magnet designed for heavy-duty hanging and holding applications. It combines a high-strength NdFeB magnet encased in a steel pot with a robust D-shaped hook, ensuring maximum holding force and durability. This magnet is ideal for industrial, commercial, workshop, warehouse, and home use where strong, removable magnetic hanging solutions are required.
The steel pot concentrates the magnetic flux, significantly increasing the holding power while protecting the magnet from mechanical damage. A nickel-plated finish provides enhanced corrosion resistance and long service life.
Specifications:
| Parameter | Value |
|---|---|
| Magnet Type | Neodymium (NdFeB) Rare Earth |
| Model | SNJ 32 D-Hook |
| Shape | Pot Magnet with D-Hook |
| Pot Diameter | 32 mm |
| Neck Diameter | 10 mm |
| Pot Height | ~8 mm |
| Total Height (with hook) | ~45 mm |
| Thread Size | M6 |
| Grade | N35 (or equivalent) |
| Coating | Nickel (Ni) |
| Magnetization Direction | Axial |
| Holding Force | ~34 kg (under ideal conditions) |
| Operating Temperature | Up to 80°C |
| Material | NdFeB Magnet + Steel Pot |
| Polarity | Axially magnetized |
| Corrosion Resistance | Moderate (nickel-plated surface) |
Package Includes
1 x Neodymium (NdFeB) SNJ 32 D-Hook Magnet- High-Strength Rare Earth Magnet
