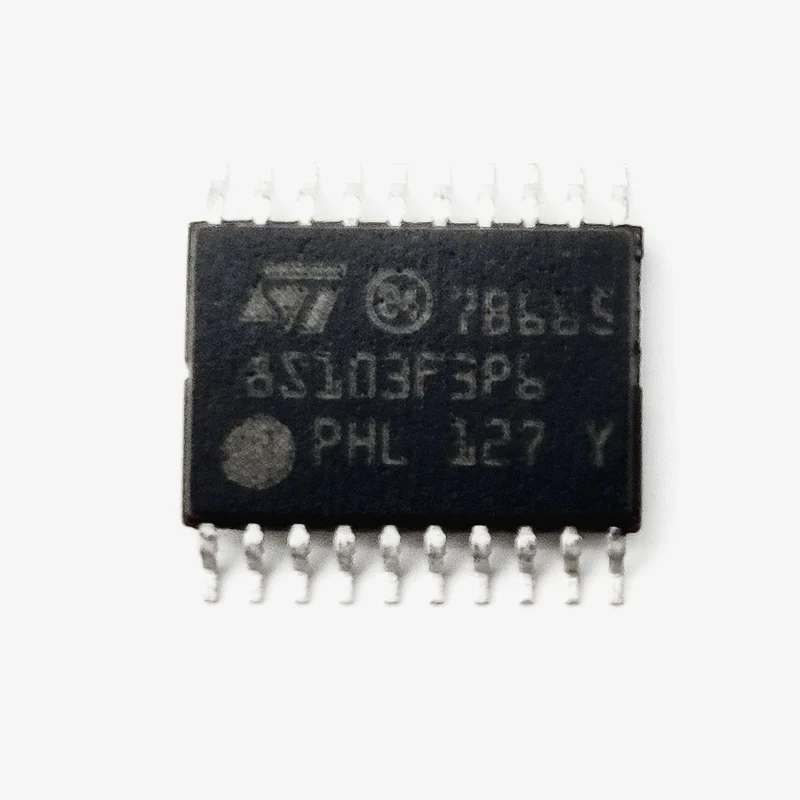

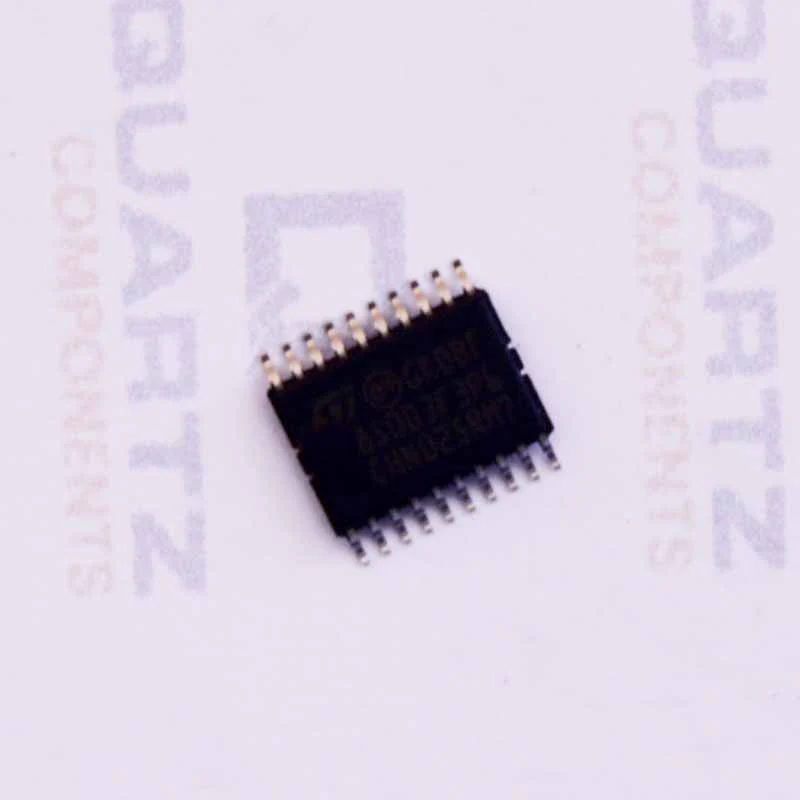

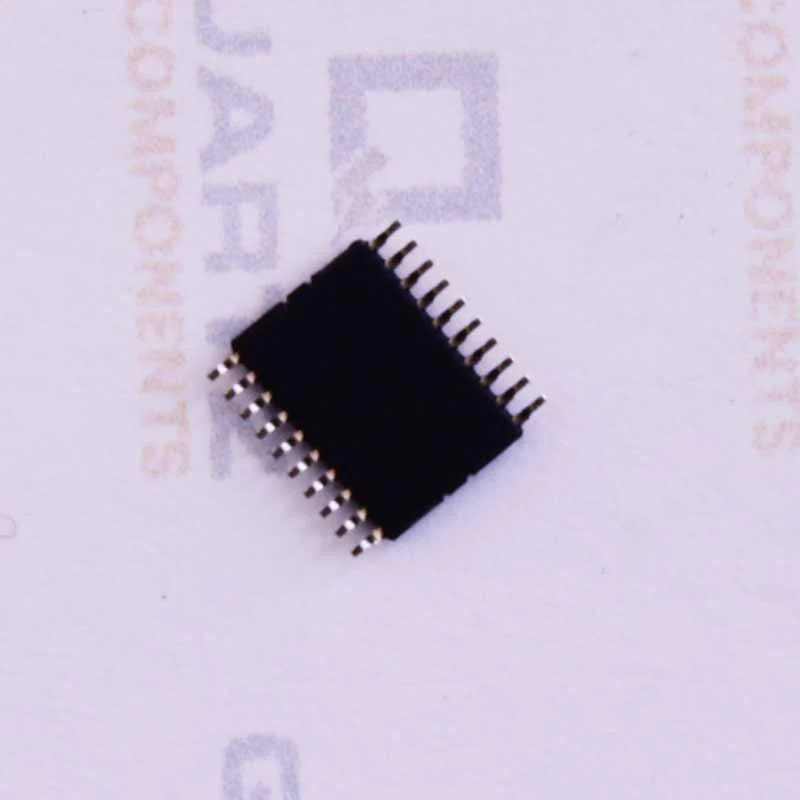

The STM8S103F3PS is a low density 8 bit microcontroller with 20 pins. It has a clock frequency of 16 MHz, 8k bytes of flash program memory, and an EEPROM up to 300,000 write/erase cycles. This microcontroller is a high-level system with built-in oscillators, a watchdog timer, and a brown-out reset. It is robust, has high performance, and a diverse set of development tools, making it a very reliable and simple-to-use microcontroller.

Product Description of STM8S103F3P6



PIN DESCRIPTION





Features of STM8S103F3P6

• Core: STM8 Core with Harvard architecture and 3-Stage pipeline
• Maximum Clock Frequency: 16 MHz
• Program memory: 8 Kbytes Flash; data retention 20 years at 55 °C after 10k cycles
• Data memory: 640 bytes true data EEPROM; endurance 300k cycles
• RAM: 1 Kbytes
• Operating Voltage : 2.95 to 5.5 V
• 96-bit unique key for each device
• Highly robust I/O design, immune against current injection
• Maximum number of GPIOs (I/Os): 16
• interrupt pins: 16
• Peripheral set: Multipurpose timer (TIM1), SPI, I 2C, UART window WDG, independent WDG, ADC, PWM timer (TIM2),8-bit timer (TIM4)
• A/D converter channels: 5
• A wide choice of development tools
• Reduced System Cost

Additional Resources

• STM8S103F3P6 - STM8S 8-bit 8Kb Flash microcontroller 20-Pin TSSOP datasheet

Package Contains

1 x STM8S103F3P6 - STM8S 8-bit 8Kb Flash microcontroller 20-Pin TSSOP
