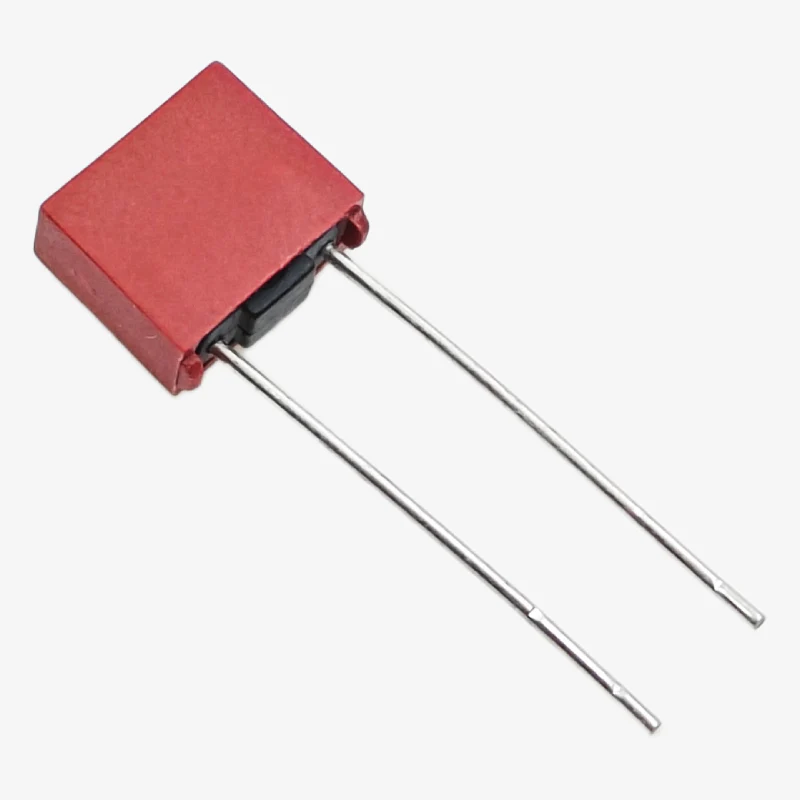

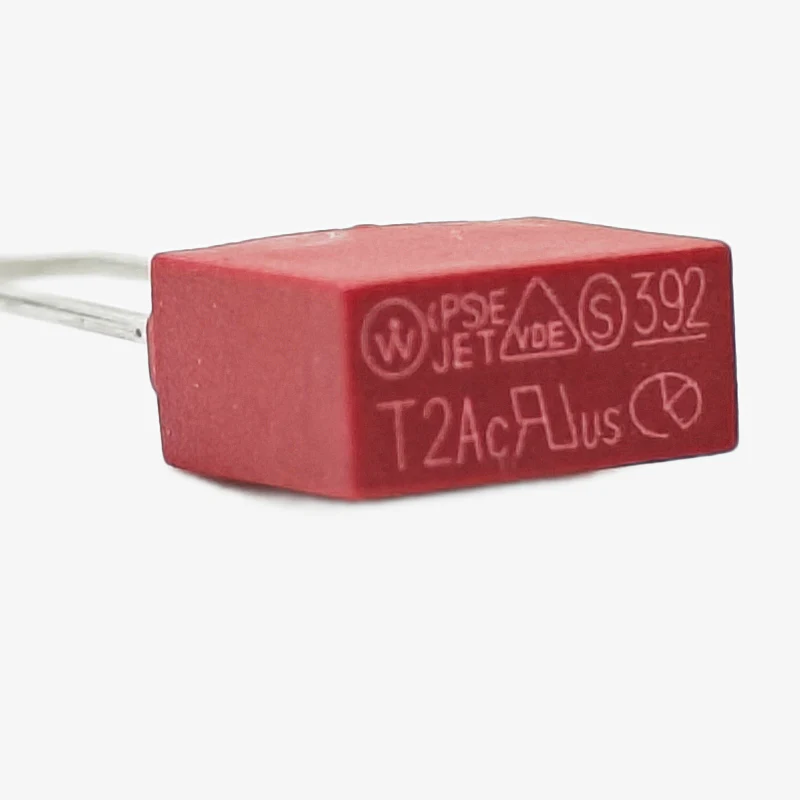

The T2A 250V 2A Slow Blow Box-Type Miniature Fuse is a compact and reliable overcurrent protection device designed for electronic circuits and power supplies. With its time-delay (slow blow) characteristics, it allows short-term current surges while protecting against prolonged overloads and short circuits. The square box-style package makes it ideal for PCB mounting in compact electronic devices, adapters, SMPS circuits, and consumer electronics.

Features:

1. Rated for 2A at 250V AC.
2. Slow blow (time delay) characteristic allows safe surge handling.
3. Box-type miniature square fuse design for compact installations.
4. Suitable for overcurrent and short-circuit protection.
5. Reliable performance in consumer and industrial electronics.
6. Easy PCB mounting with DIP package style.

Specifications:

• Fuse Type: Time Delay / Slow Blow
• Rated Current: 2A
• Rated Voltage: 250V AC
• Package Style: Box-Type, Square (DIP Mount)
• Body Size: ~10mm × 10mm × 5mm (approx.)
• Lead Spacing: ~7.5mm


Package Includes:

1 × T2A 250V 2A Slow Blow Box-Type Miniature Square Fuse (DIP Package)
