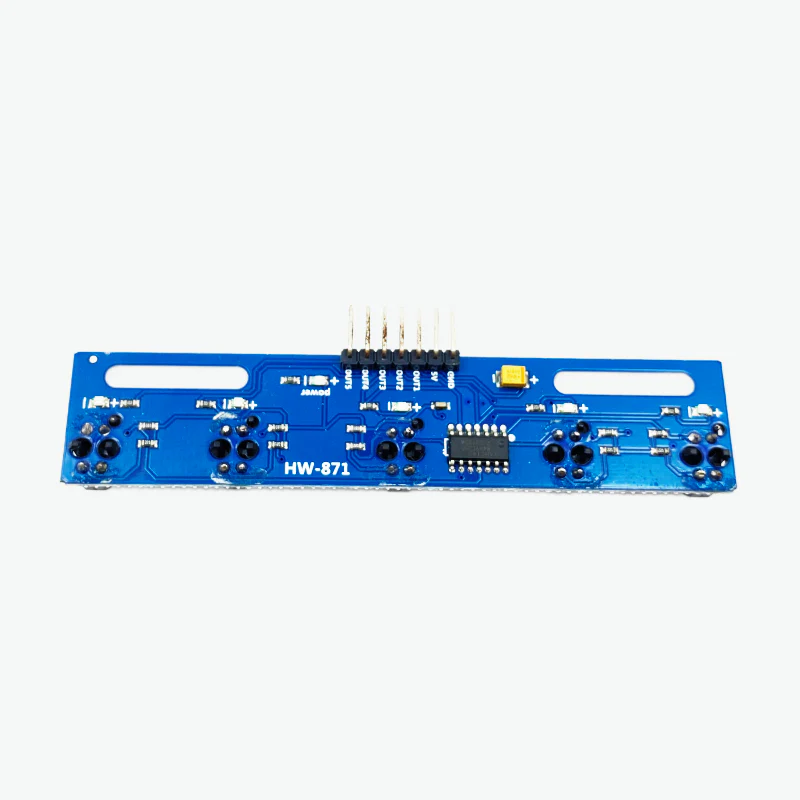

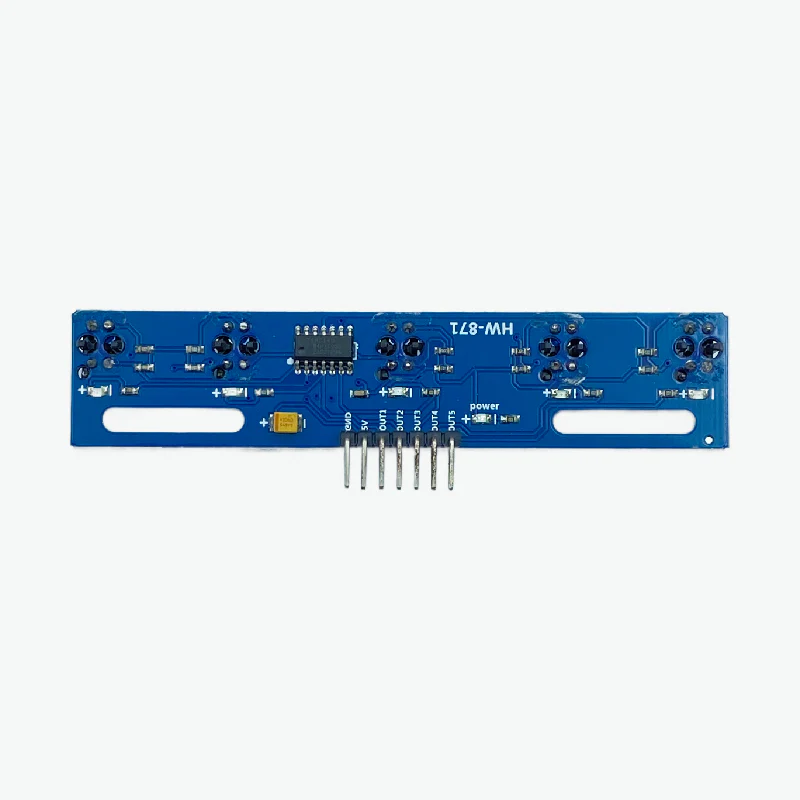

TCRT5000L 5 Channel Tracking Sensor Module Infrared Sensor is a multi-channel reflective infrared sensor module designed for line tracking and surface detection applications in robotics and automation projects. It uses five TCRT5000L IR transmitter and receiver pairs to detect contrast differences between light and dark surfaces, making it ideal for line follower robots and edge detection systems. The module provides digital output signals for each channel, allowing precise and real-time tracking performance in embedded and microcontroller-based systems.

Features:

1. Five channel infrared reflective sensor array
2. Based on TCRT5000L IR transmitter and receiver
3. Digital output for each sensing channel
4. Adjustable sensitivity via onboard potentiometers
5. Indicator LEDs for output status
6. Compact PCB design for easy integration
7. Suitable for robotics and automation projects

Specifications:

• Product Type: Infrared Tracking Sensor Module
• Model: TCRT5000L 5 Channel
• Number of Channels: 5
• Operating Voltage: 3.3V to 5V DC
• Output Type: Digital
• Connector Type: Pin Header
• Mounting Type: PCB Mount
• Package Type: Anti Static Pack
• Applications: Line follower robots, edge detection systems, robotic navigation, path tracking projects, automation experiments

Package Includes:

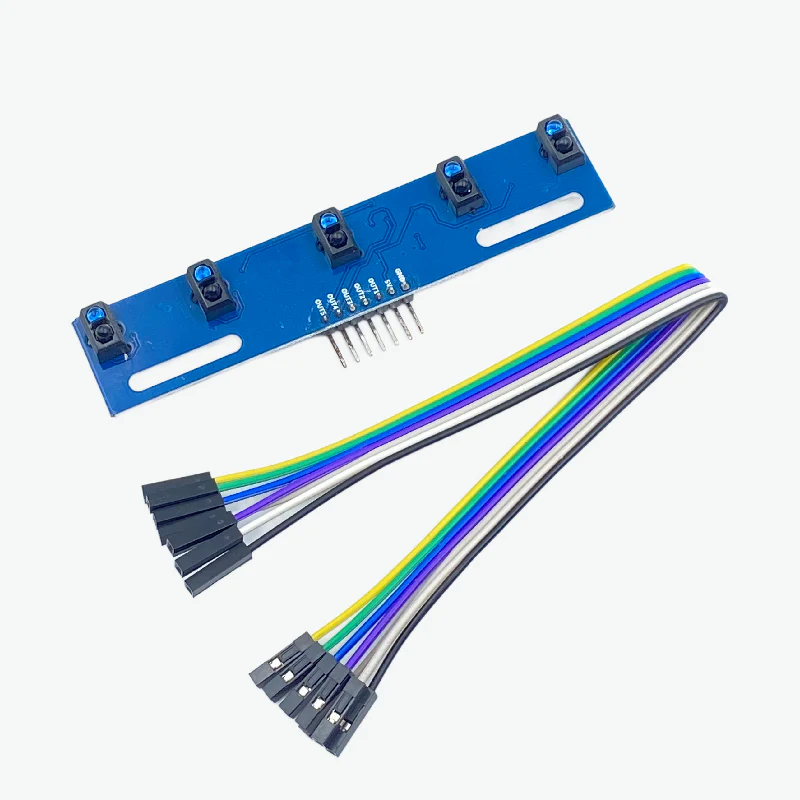

1 × TCRT5000L 5 Channel Tracking Sensor Module Infrared Sensor
