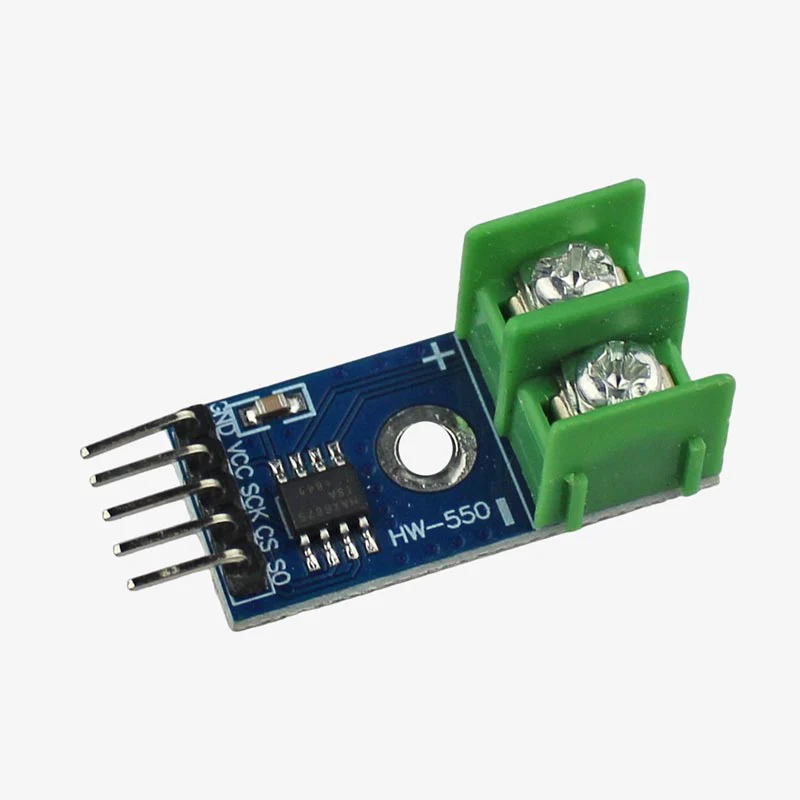

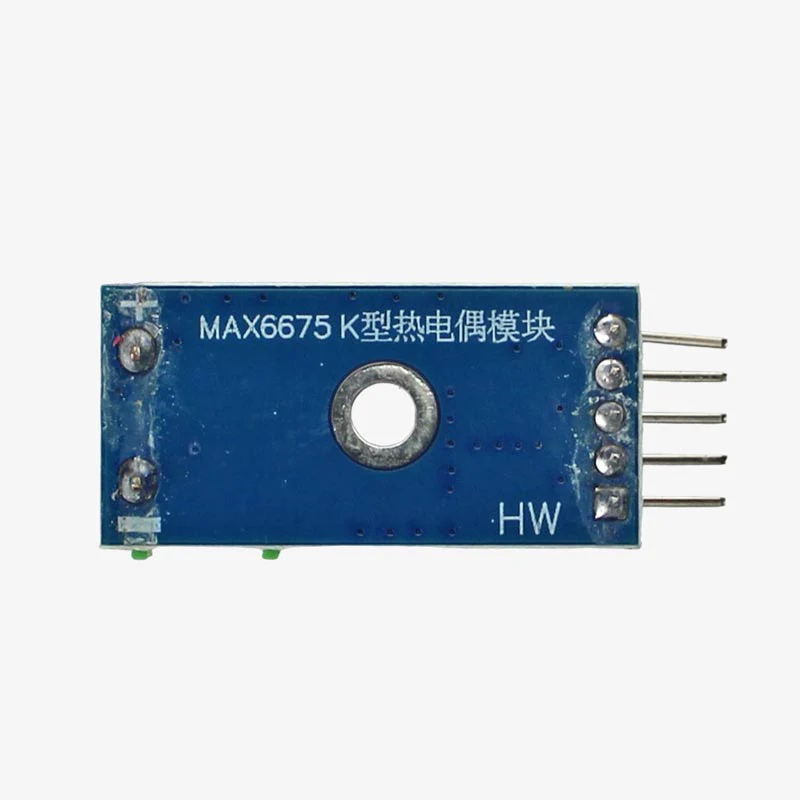

The MAX6675 Thermocouple Sensor Module uses K-Type Thermocouples and converts the data into digital format and provides data to SPI interfaces. The sensor is useful to provide accurate temperature-compensated measurement of the supplied K-Type thermocouple sensor. The data output in a 12-bit resolution, SPI compatible, read-only format. The MAX6675 converter has a resolution of 0.25°C temperature. It allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8 LSBs for temperatures ranging from 0°C to +700°C. The working voltage is 5V and the measurement accuracy is ± 1.5 °C.



MAX6675a pinout:





Specifications

1. Input voltage range: -0.3V-6V DC
2. Output current: 50mA
3. Supported Thermocouple Type: K-Type
4. Resolution: 0.25°C, 12 Bit
5. Interface: SPI
6. Max Temp: +1024°C
7. Lowest Temp : 0°C
8. Open Thermocouple Detection

MAX6675a Dimension and footprint:

MAX6675a Applications:

• Industrial
• HVAC
• Appliances
• Heaters
• High Temperature Monitor

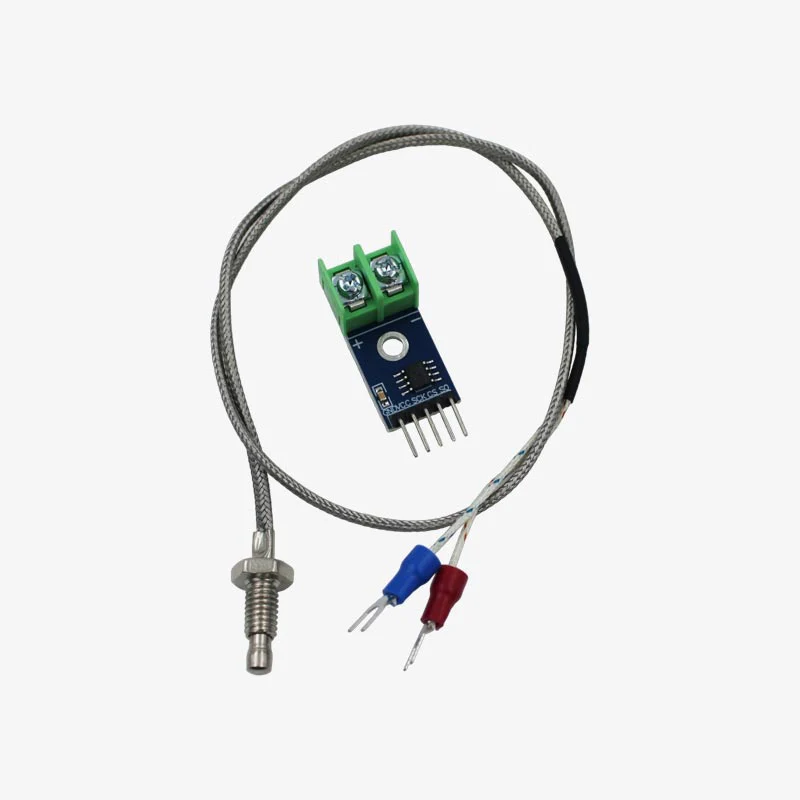

Package Contains

1x MAX6675a Thermal Sensor Relay Module
