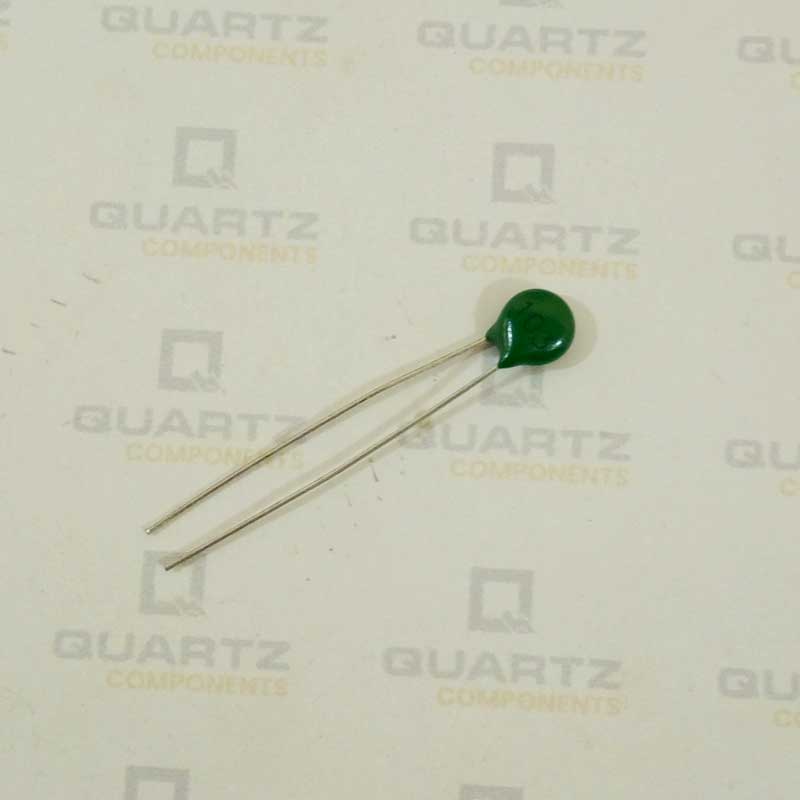

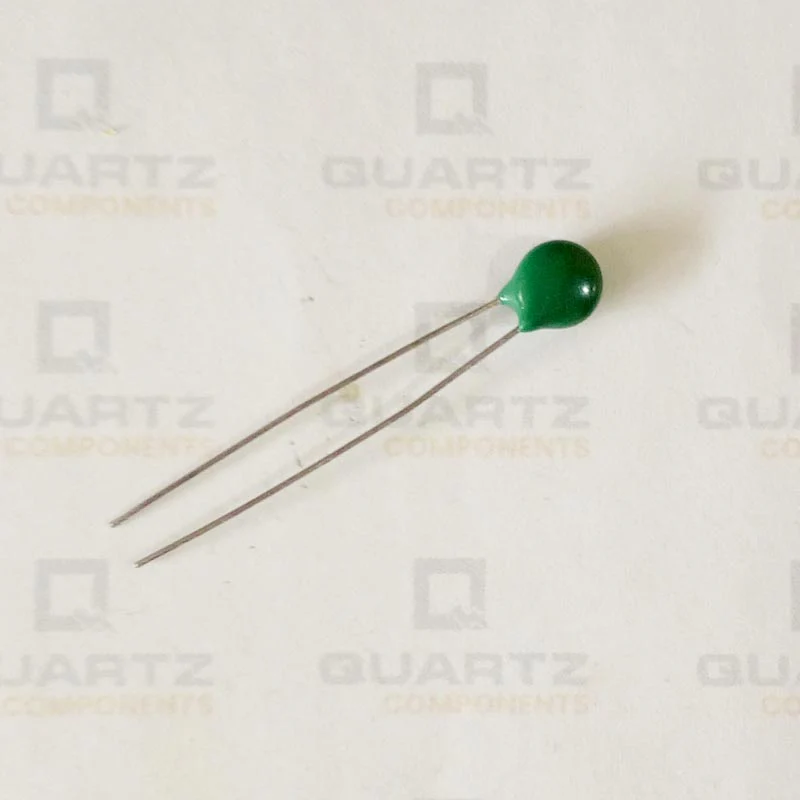

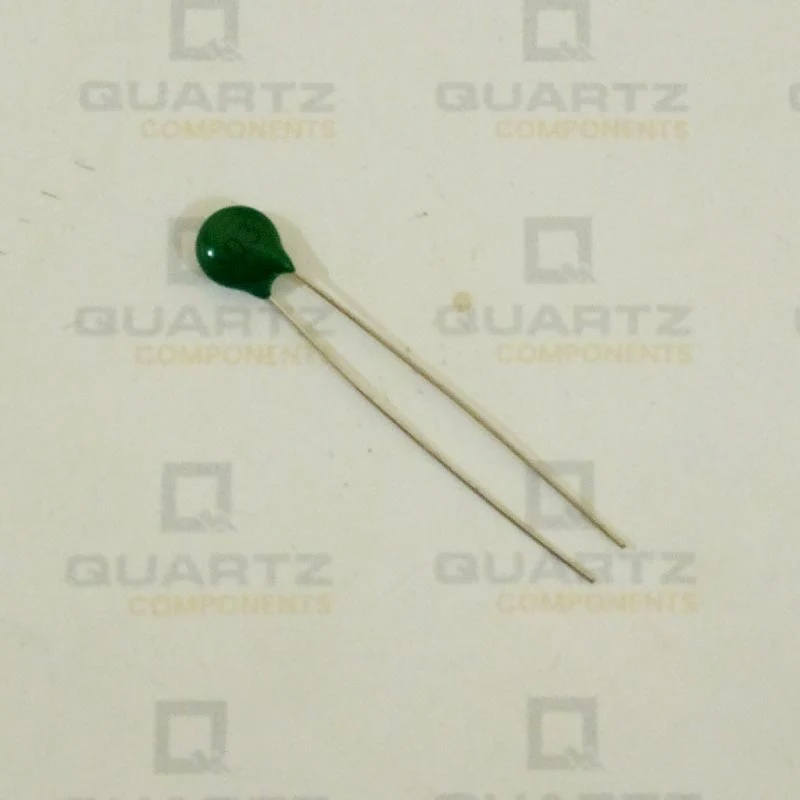

Thermistor is a type of variable resistor whose resistance varies based on the change in temperature around it. This 10K Ohm NTC Thermistor is commonly used as a temperature sensor in heating sensing applications. It has a temperature coefficient of -25°C to 90°C.



Features and Specifications of NTC Thermistor:

• Resistance at 25 degrees C: 10K +- 1%
• B-value (material constant) = 3950+- 1%
• Dissipation factor (loss-rate of energy of a mode of oscillation) δ th = (in air) approx.7.5mW/K
• Thermal cooling time constant <= (in air) 20 seconds
• Come with broad resistance range
• Provided with lacquer-coated thermistor disk

• Copper leads have coating of tin.
• Having lead spacing of 5.0 mm
• Component remarked with resistance and tolerance
• Good stability, durability in environment
• Provide high accuracy in resistance and B-constant
• Product is not containing lead

Additional Resources:

NTC Thermistor Datasheet

Note: Product Images are shown for illustrative purposes only and may differ from actual product.
