TL432ASA-7 Adjustable Precision Shunt Regulator IC is a high-precision 3-terminal adjustable shunt regulator designed for voltage reference and regulation applications. Ideal replacement for Zener diodes with better stability and accuracy.

TL432ASA-7 - DATASHEET

Features:

1. Adjustable Output Voltage from 2.5V to 36V
2. High Accuracy (±1%)
3. Low Output Impedance
4. Excellent Temperature Stability
5. Fast Turn-On Response
6. Can Replace Zener Diodes
7. Suitable for Power Supply and Feedback Circuits
8. Compact SOT-23-3 SMD Package

Specifications:

Parameter	Value
Model	TL432ASA-7
Manufacturer	Diodes Incorporated
Type	Adjustable Shunt Regulator
Reference Voltage	2.495V
Output Voltage Range	2.5V – 36V
Accuracy	±1%
Max Cathode Current	100mA
Package	SOT-23-3
Mounting Type	Surface Mount
Operating Temperature Range	-40°C to +125°C

Package Includes:

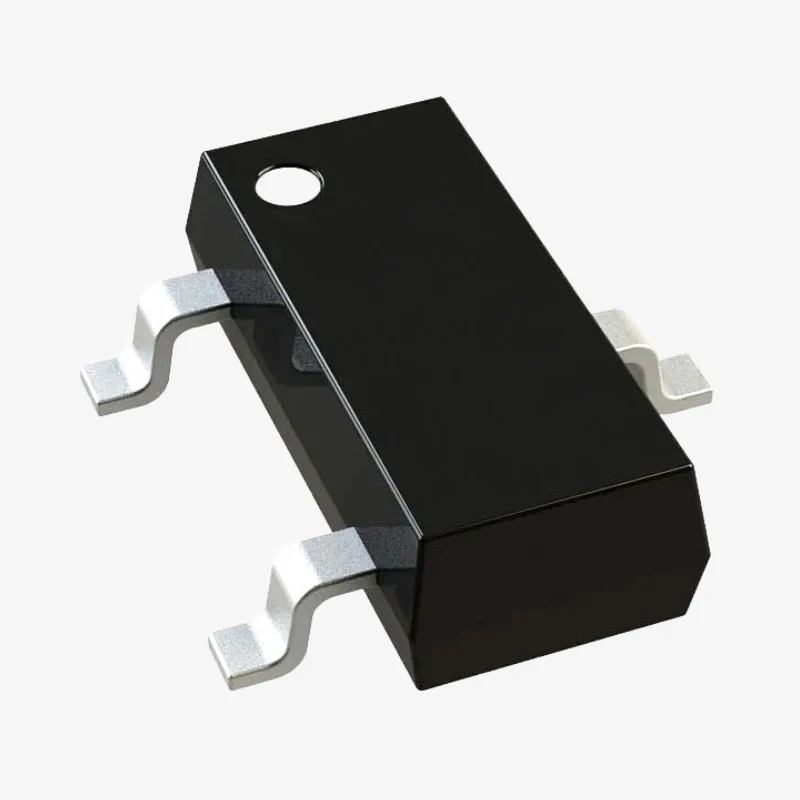

1 x TL432ASA-7 Adjustable Precision Shunt Regulator IC - SOT23-3 SMD Package
