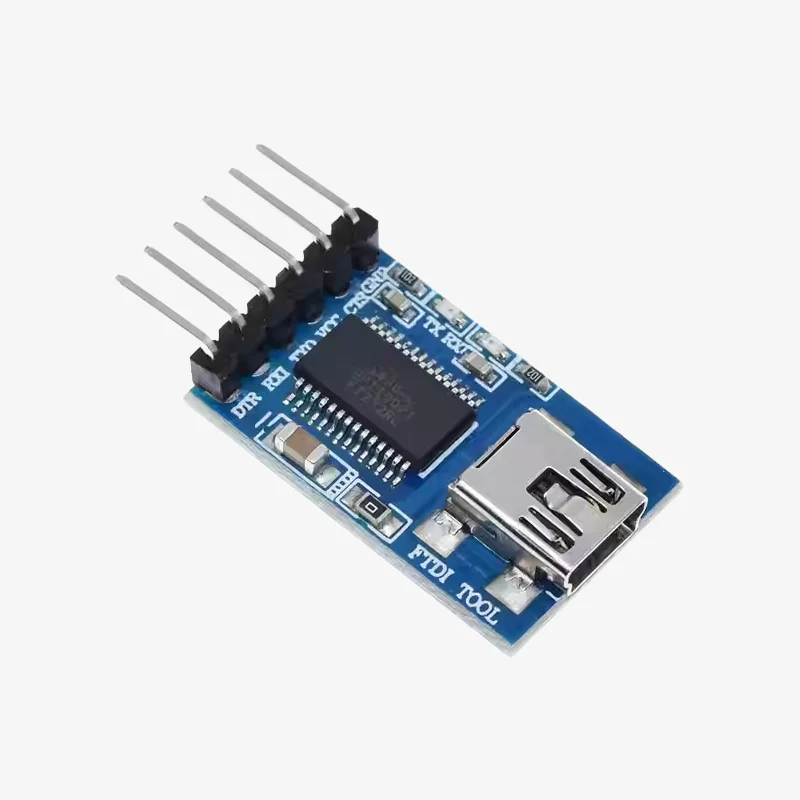

The TTL FTDI Transmitter USB is a compact and reliable USB-to-Serial (UART) adapter based on the FT232RL chipset, supporting both 3.3V and 5V logic levels. It is commonly used for serial communication, firmware flashing, and debugging in embedded systems, including Arduino, ESP8266, ESP32, and flight controllers like MultiWii (MWC). The onboard jumper allows easy switching between 3.3V and 5V, making it highly versatile.

Features of TTL FTDI Transmitter USB – FT232RL MWC Programmer:

1. FT232RL chipset for stable and high-speed serial communication.
2. Dual voltage support (3.3V/5V), selectable via onboard jumper.
3. USB-to-TTL serial adapter for programming and debugging microcontrollers.
4. Built-in TX/RX status LEDs for data transmission indication.
5. Standard 6-pin header (DTR, RX, TX, VCC, CTS, GND) for direct connection to compatible boards.
6. Compatible with Windows, Mac, and Linux operating systems.
7. Supports baud rates up to 115200 bps for fast data transfer.

Specifications of TTL FTDI Transmitter USB – FT232RL MWC Programmer:

• Chipset: FT232RL
• Operating Voltage: 3.3V/5V (Selectable)
• USB Interface: USB Type-A or Micro USB (depending on model)
• Baud Rate: Up to 115200 bps

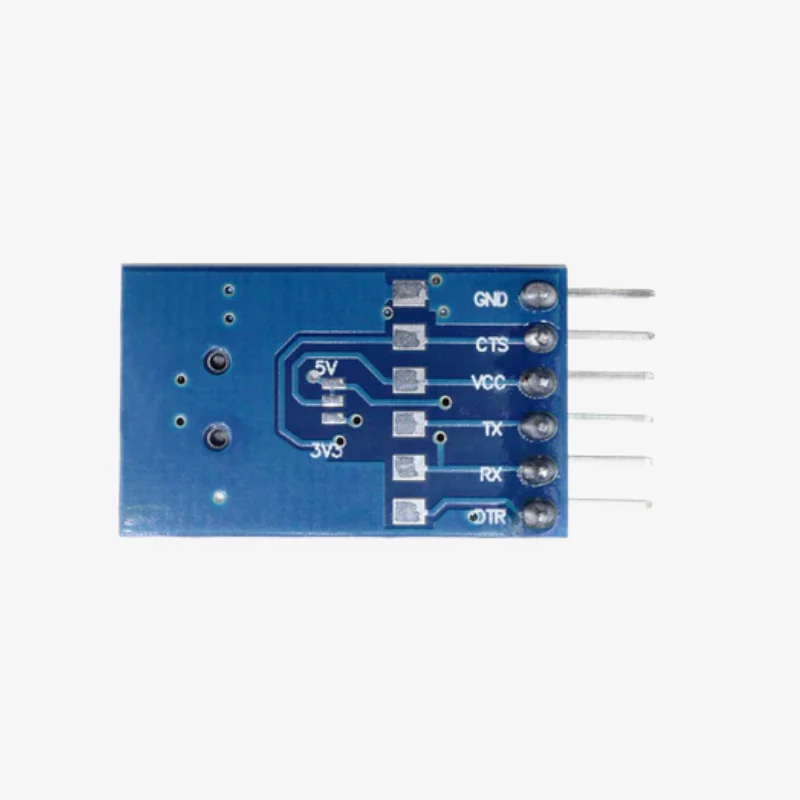

• Pinout: DTR, RX, TX, VCC, CTS, GND
• Compatibility: Arduino, ESP8266, ESP32, MultiWii (MWC), and other microcontrollers
• Driver Support: Windows, MacOS, Linux

Package Includes:

1 × TTL FTDI Transmitter USB FT232RL MWC Programmer
