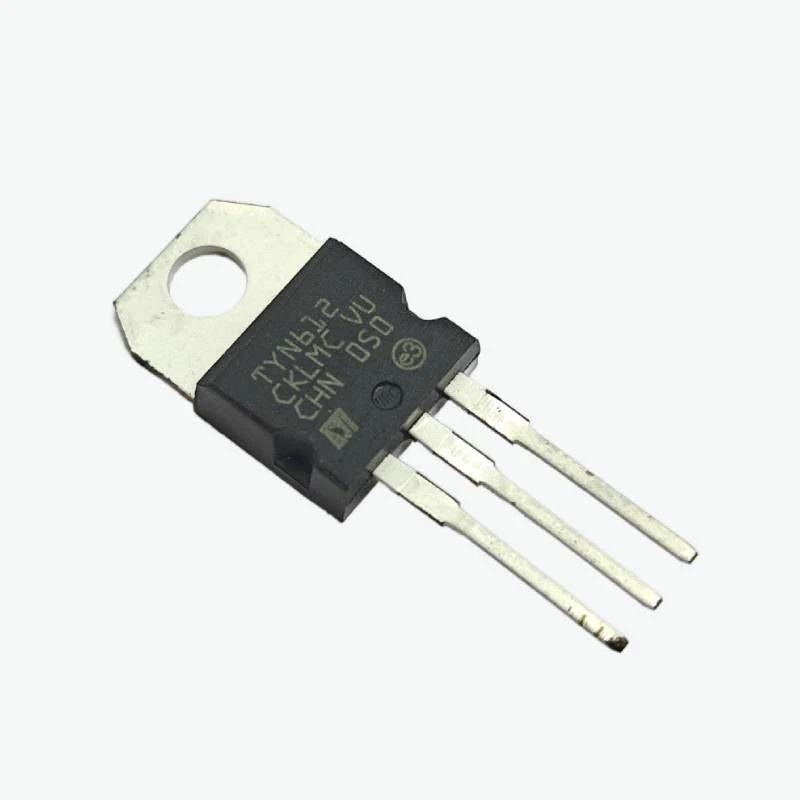

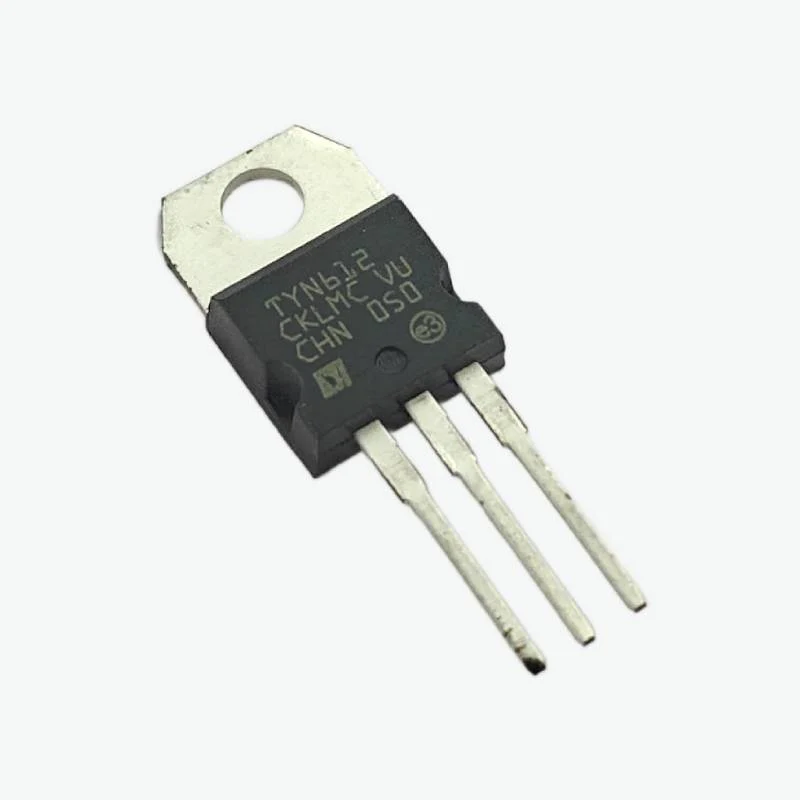

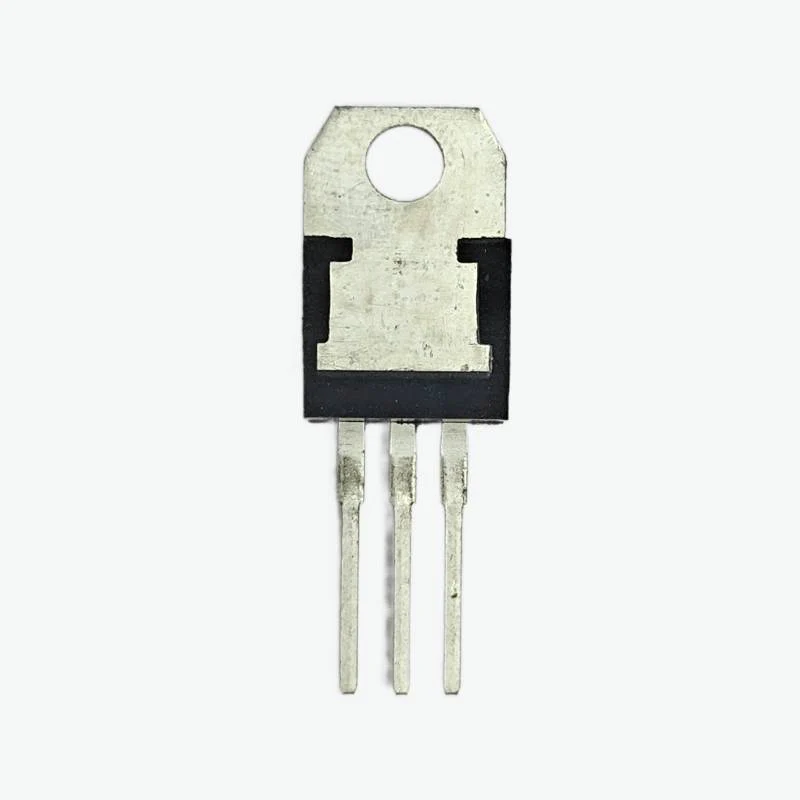

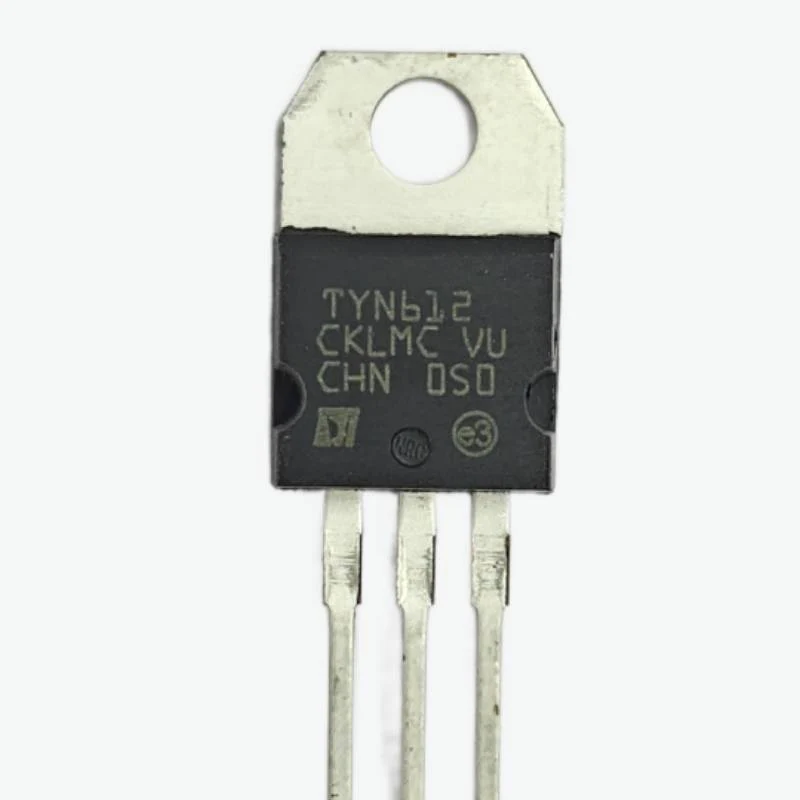

The TYN612 is a high-voltage, high-current Silicon Controlled Rectifier (SCR) designed for use in power switching applications. With a 600V blocking voltage and 12A current capacity, it is ideal for use in motor drivers, battery chargers, AC power control, and lighting dimmers. Its TO-220 package allows for easy heat sinking and through-hole mounting.

Features of TYN612 SCR Thyristor:

• 600V peak off-state voltage
• 12A RMS on-state current
• Sensitive gate triggering
• Designed for phase control and general-purpose switching
• TO-220 package for efficient heat dissipation
• Suitable for AC switching and rectifier circuits
• High surge current capability

Specifications of TYN612 SCR Thyristor:

• Part Number: TYN612
• Type: SCR (Thyristor)
• Peak Off-State Voltage: 600V
• RMS On-State Current: 12A
• Surge Current: 120A
• Holding Current: 30mA (max)
• Gate Trigger Current: 15mA (typical)
• Package Type: TO-220
• Mounting: Through-hole
• Pin Count: 3


Package Includes:

1 × TYN612 – 600V 12A SCR Thyristor – TO-220 Package
