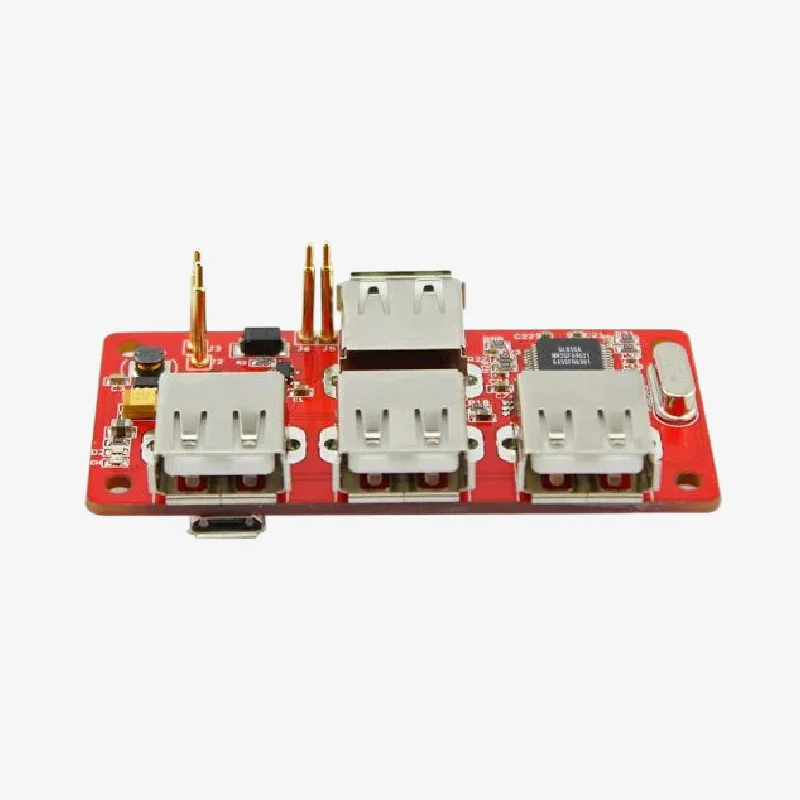

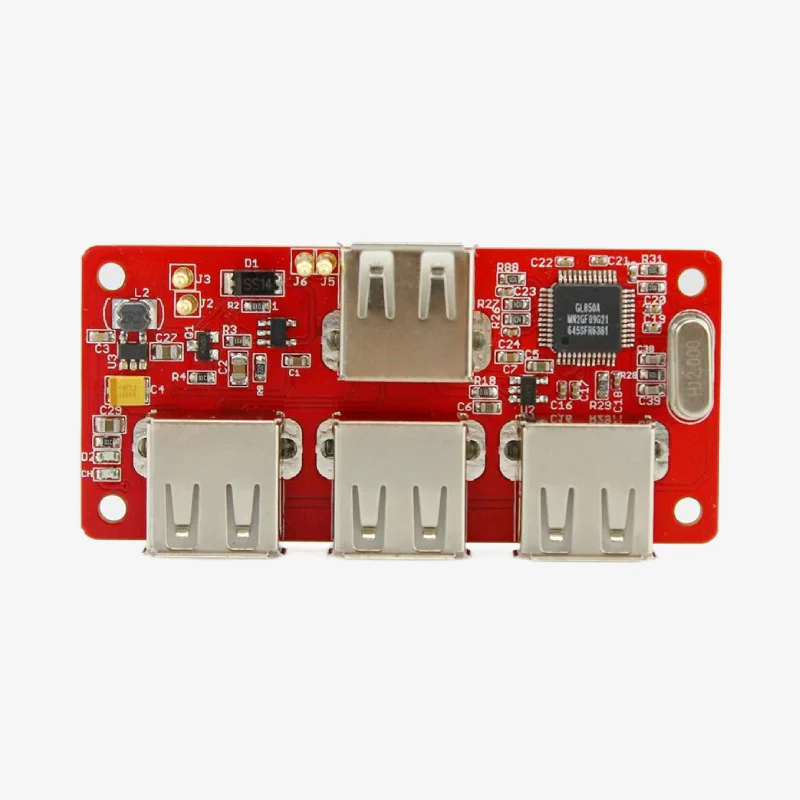

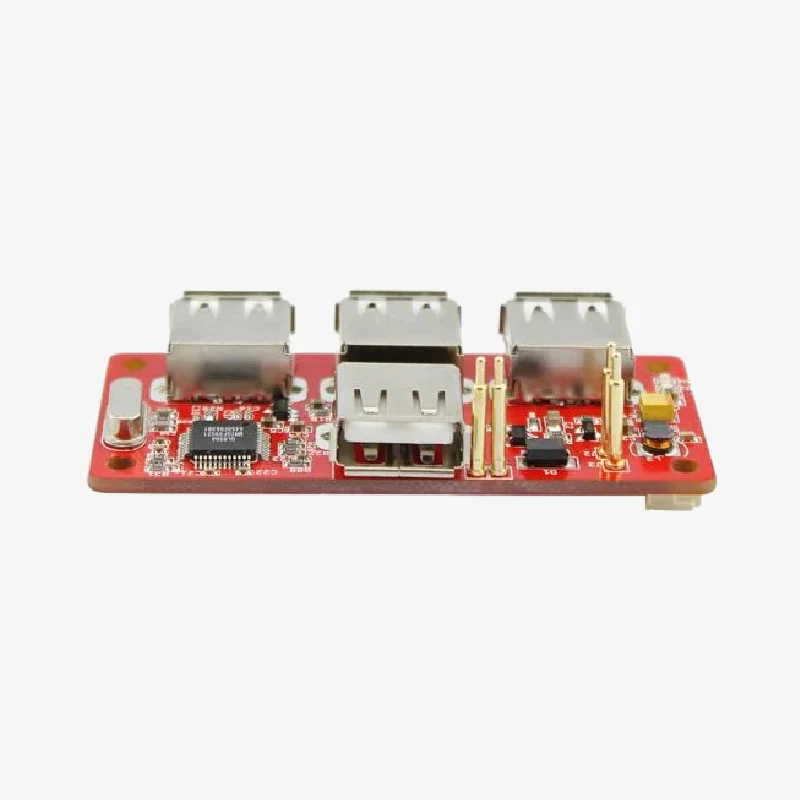

Elecrow USB Hub & Power Manager for Raspberry Pi Zero is a compact expansion board that allows a Raspberry Pi Zero with a single micro port to connect to multiple USB devices without soldering or wiring. The pogo pins on the back connect directly to the Pi Zero testing pads for easy setup, making it a convenient solution for USB expansion and power management in DIY projects.

Features :

1. Has 4 USB extension ports, compatible with USB 2.0/1.1 transmission.
2. Can be bus-powered from Raspberry Pi Zero or self-powered via the hub’s micro USB port.
3. Supports up to 2.3A current when powered via USB.

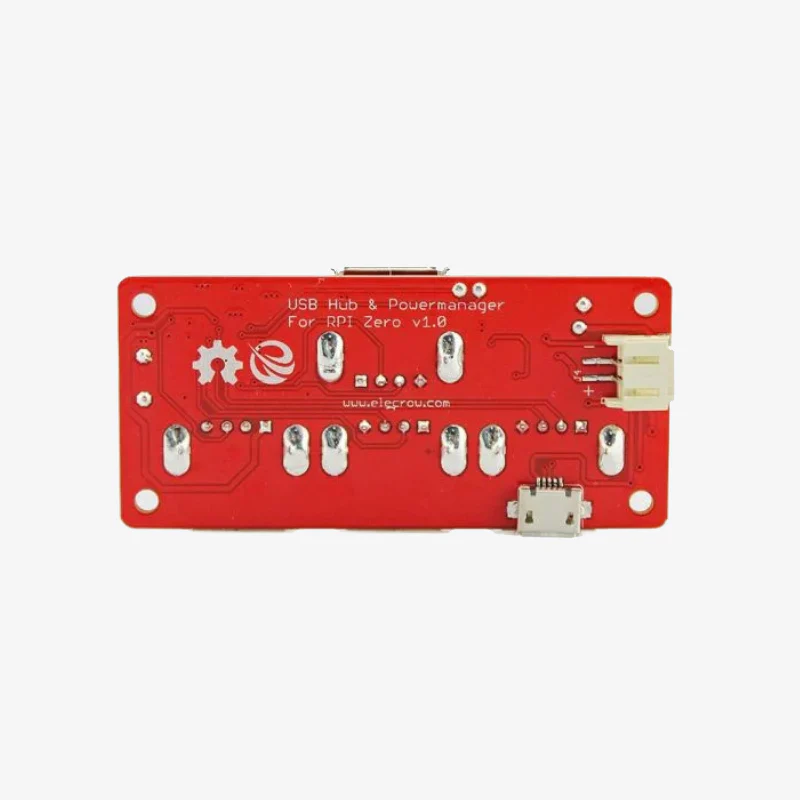

4. Gold-plated, low-resistance spring-loaded pogo pins for reliable connection.
5. No soldering or additional wiring required.

Specifications :

• Power Mode: Bus-Power; Self-Power
• Working Voltage: 5V DC
• Operating Temperature: 0°C ~ 70°C
• Storage Temperature: -20°C ~ 80°C
• Humidity: 0 ~ 80% RH, non-condensing

Package Includes:

1 × USB Hub & Power Manager for Raspberry Pi Zero v1.0
