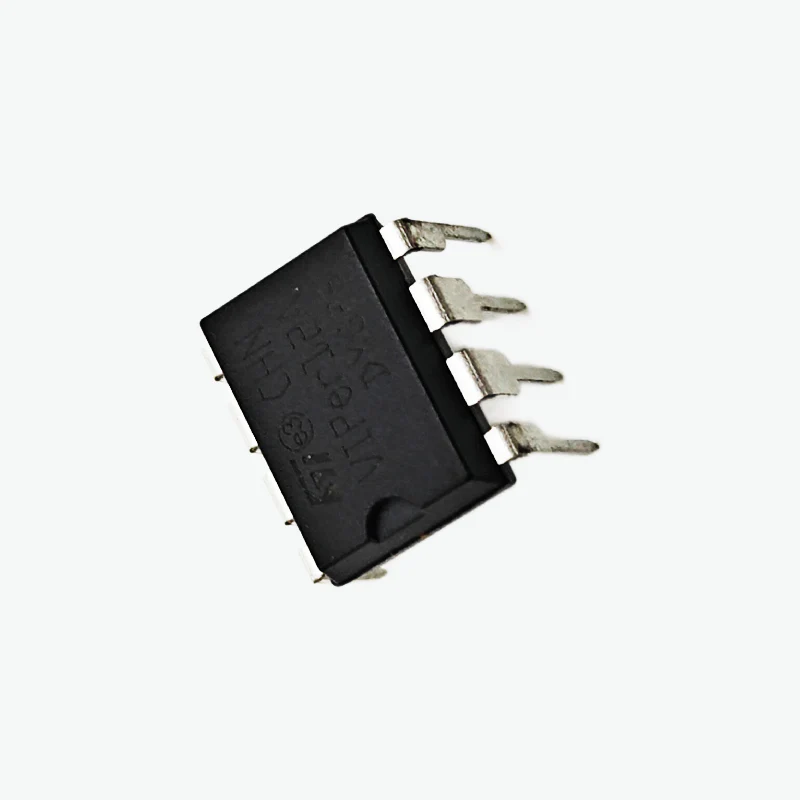

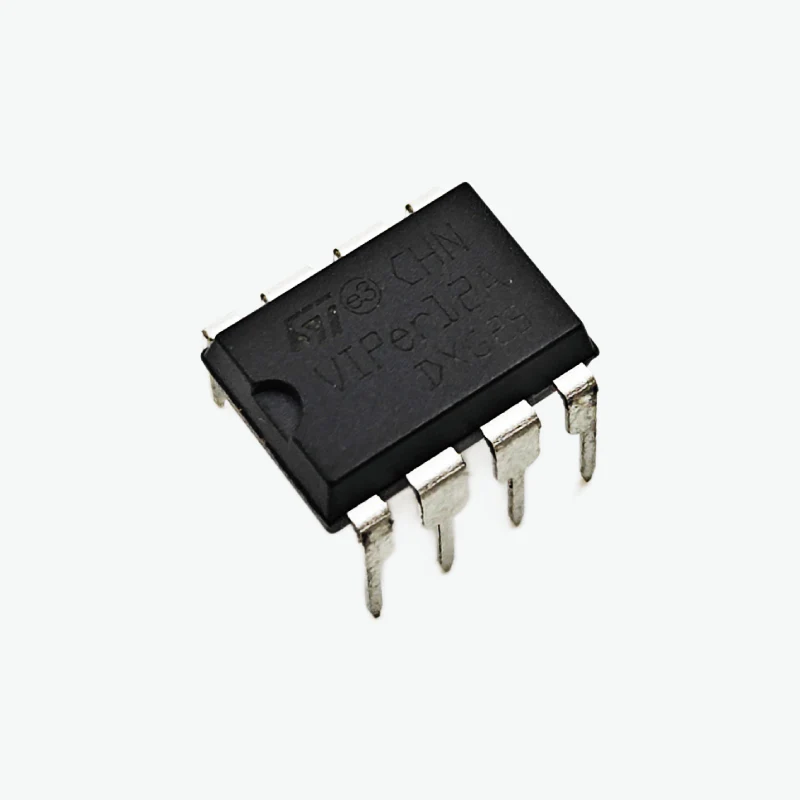

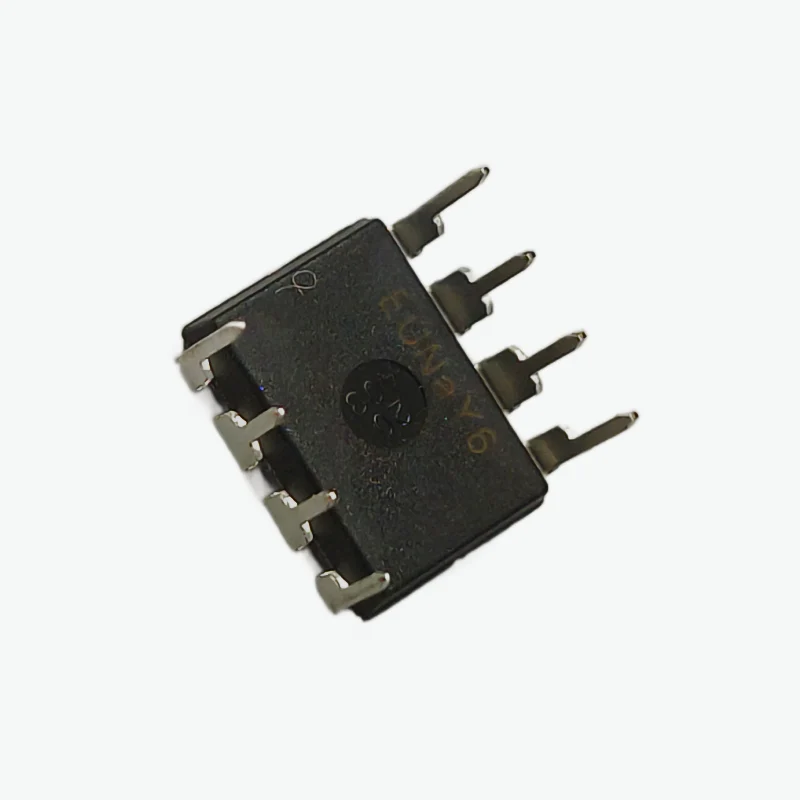

The VIPER12A AC/DC Switcher IC- DIP-8 Package is a high-performance off-line switcher IC from STMicroelectronics designed for compact, energy-efficient power supplies. It integrates a PWM controller and high-voltage power MOSFET in a single DIP-8 package, ideal for AC/DC conversion in low-power applications up to 13W.

Features:

1. Integrated PWM control and MOSFET for reduced external components

2. Wide input voltage range from 195V to 265V AC

3. High efficiency with low standby power consumption

4. Built-in thermal shutdown and current limiting protection

5. Stable performance up to 60kHz switching frequency

Specifications:

• Input Voltage Range: 195V – 265V AC

• Output Power: Up to 13W

• Switching Frequency: 60kHz

• Operating Voltage (VDD): 9V – 38V

• Operating Temperature: -40°C to +150°C

• Package Type: DIP-8

• Dimensions: 9 × 7 × 4 mm (Approx.)

• Weight: 1g

Package Includes:

1 × VIPER12A AC/DC Switcher IC- DIP-8 Package
