The W10 Single Phase Bridge Rectifier Module is a compact and reliable power conversion component designed for efficient AC to DC rectification in electronic power systems. Rated for 1.5A forward current and 1000V reverse voltage, this bridge rectifier is ideal for use in power supplies, battery chargers, adapters, inverters, and industrial control circuits.

CLICK HERE FOR DATASHEET

Features:

1. UL-recognized construction for quality assurance

2. Reliable, low-cost molded plastic design

3. High surge current capacity up to 40A

4. Ideal for PCB mounting applications

5. High-temperature soldering endurance up to 260°C for 10 seconds

Specifications:

• Average Forward Rectified Current (IF(AV)): 1.5A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• DC Blocking Voltage (VDC): 1000V

• RMS Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 40A (8.3ms single half sine wave)

• Instantaneous Forward Voltage (VF): 1.0V

• Reverse Current (IR) at 25°C: 10µA

• Reverse Current (IR) at 125°C: 500µA

• Thermal Resistance Junction to Ambient (RθJA): 36°C/W

• Thermal Resistance Junction to Lead (RθJL): 13°C/W

• Operating Junction Temperature (TJ): -55°C to +125°C

• Storage Temperature Range (TSTG): -55°C to +150°C

Package Includes:

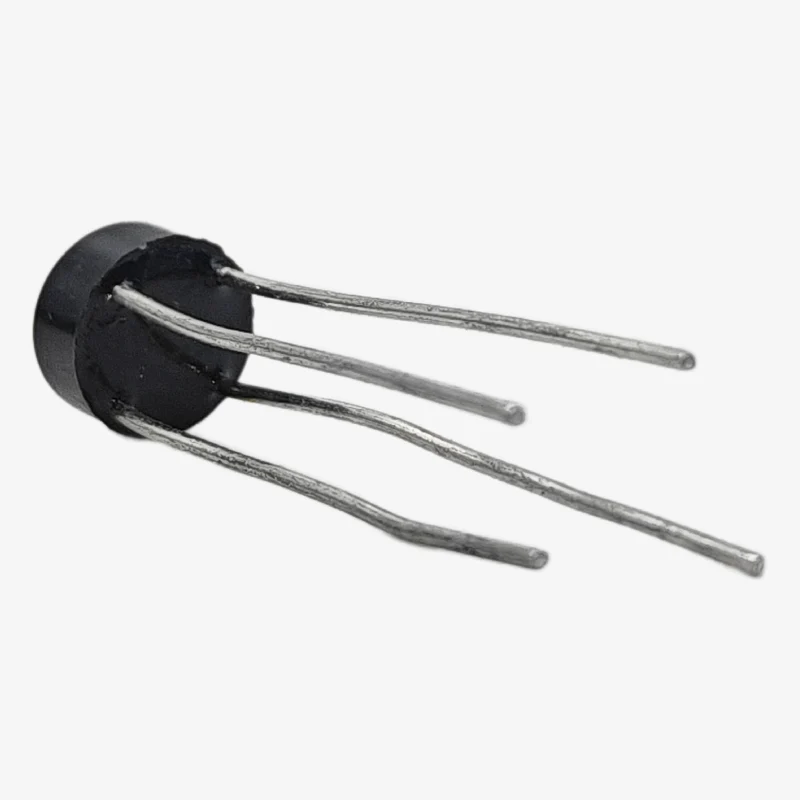

1 × W10 1.5A 1000V Single Phase Bridge Rectifier Module - 4 Pin Lead Round Package
