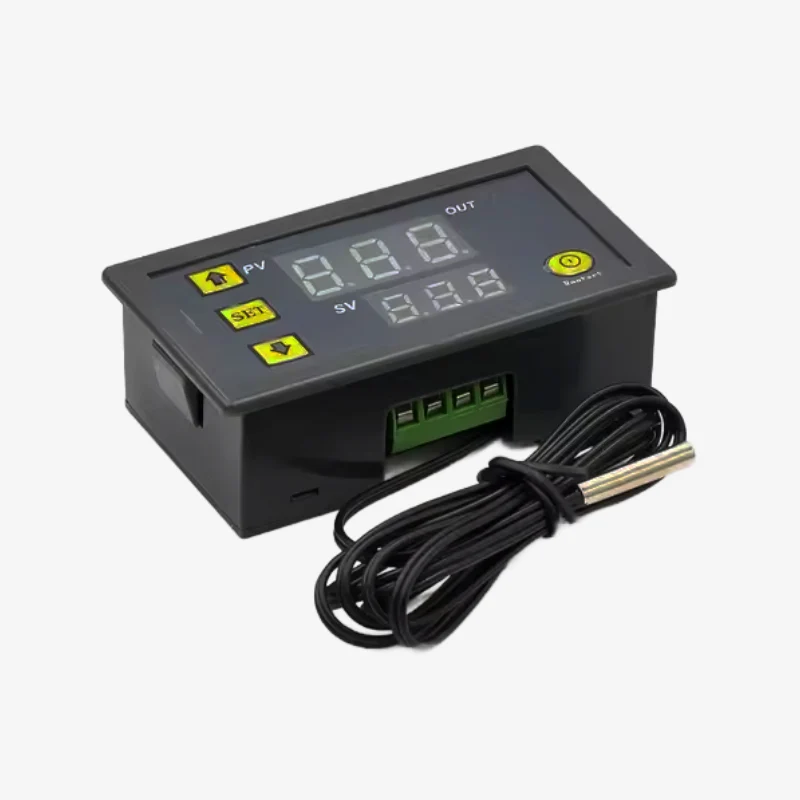

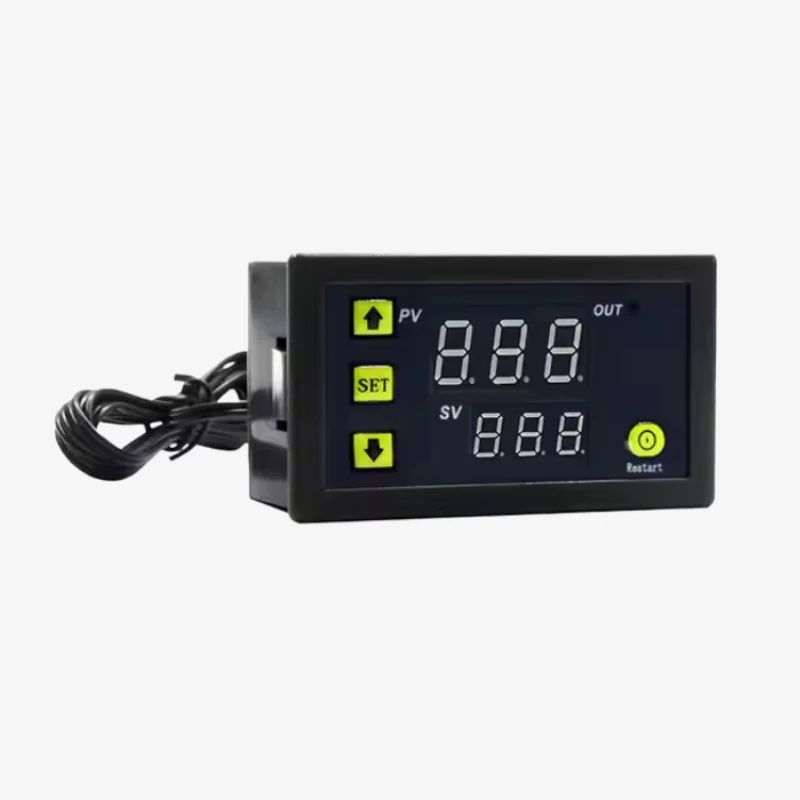

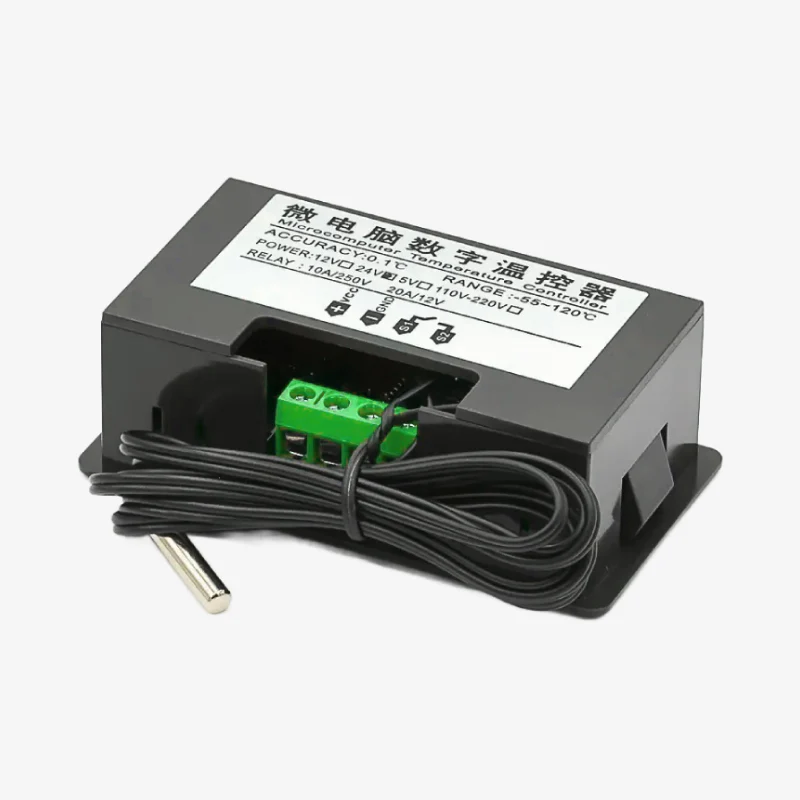

The W3230 24V DC Digital Temperature Controller is a high-performance thermostat switch ideal for regulating temperature in various electronic and industrial applications. It offers accurate temperature control and monitoring, with a range of features designed to suit a wide variety of temperature-sensitive projects.

Features:

• Wide Temperature Range: Operates between -55°C to 120°C, providing a broad temperature range for various applications.
• High-Precision Control: Provides excellent control accuracy of 0.1°C, ensuring precise temperature regulation.
• High Load Capacity: Supports relay contact capacities of 10A at 220V, 20A at 12V, and 20A at 24V, enabling it to handle heavy loads.
• Waterproof Sensor: Equipped with an NTC10K waterproof sensor for reliable performance in harsh environments.
• Digital Display: The red or blue display provides clear visibility of the current temperature with a resolution of 0.1°C.
• Adjustable Control Range: Easily adjustable setpoint with high accuracy, ensuring precise temperature control in applications requiring stability.
• Wide Operating Conditions: Can operate efficiently in a temperature range of -10°C to 60°C and humidity levels from 20% to 85%.

Specifications:

• Model No.: W3230
• Voltage Rating: 24V DC
• Contact Capacity: 10A 220V / 20A 12V / 20A 24V Output Relay
• Temperature Control Range: -55°C to 120°C
• Control Accuracy: ±0.1°C
• Resolution Ratio: 0.1°C (-9.9 to 99.9°C)
• Measuring Accuracy: ±0.1°C
• Waterproof Level: NTC10K Waterproof sensor
• Operating Temperature: -10°C to 60°C
• Operating Humidity: 20% to 85%
• Display Color: Red/Blue
• Dimensions: 71mm x 39mm x 26mm

Package Includes:

• 1 x W3230 24V DC Digital Temperature Controller
• 1 x NTC10K Waterproof Temperature Sensor
