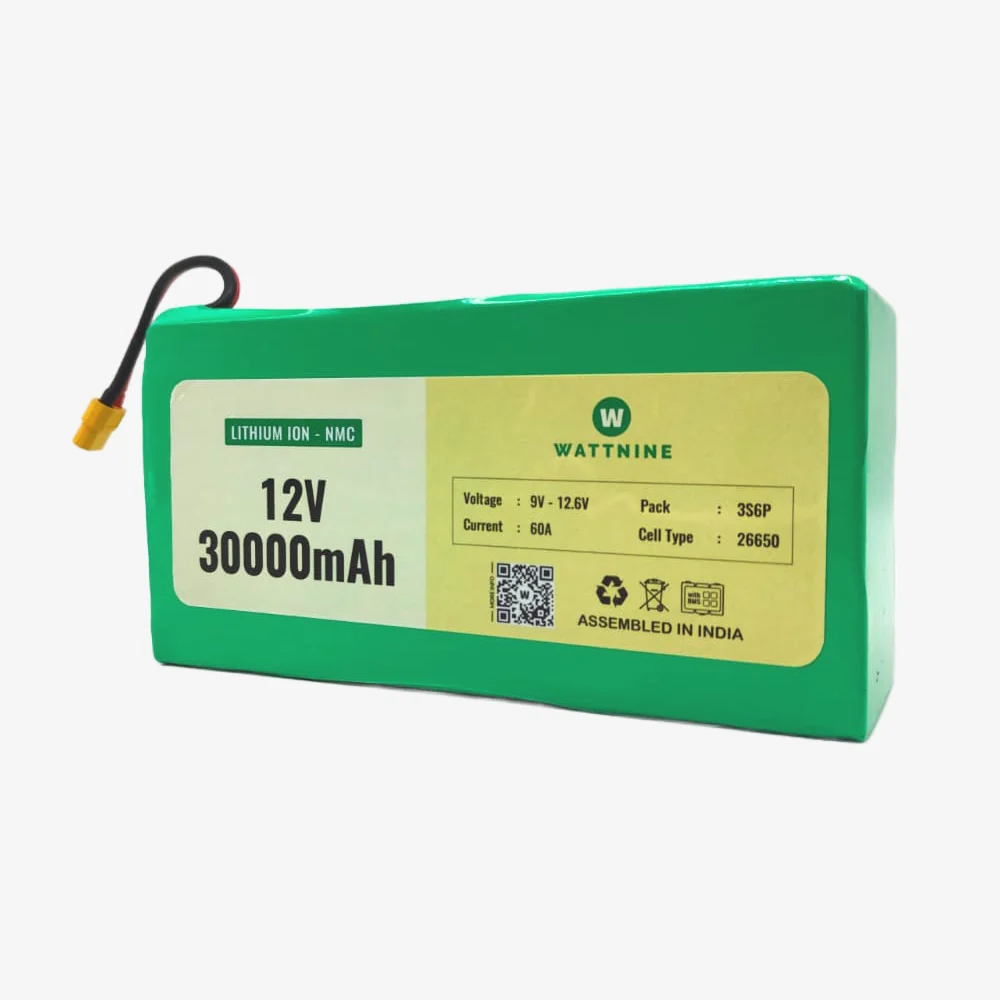

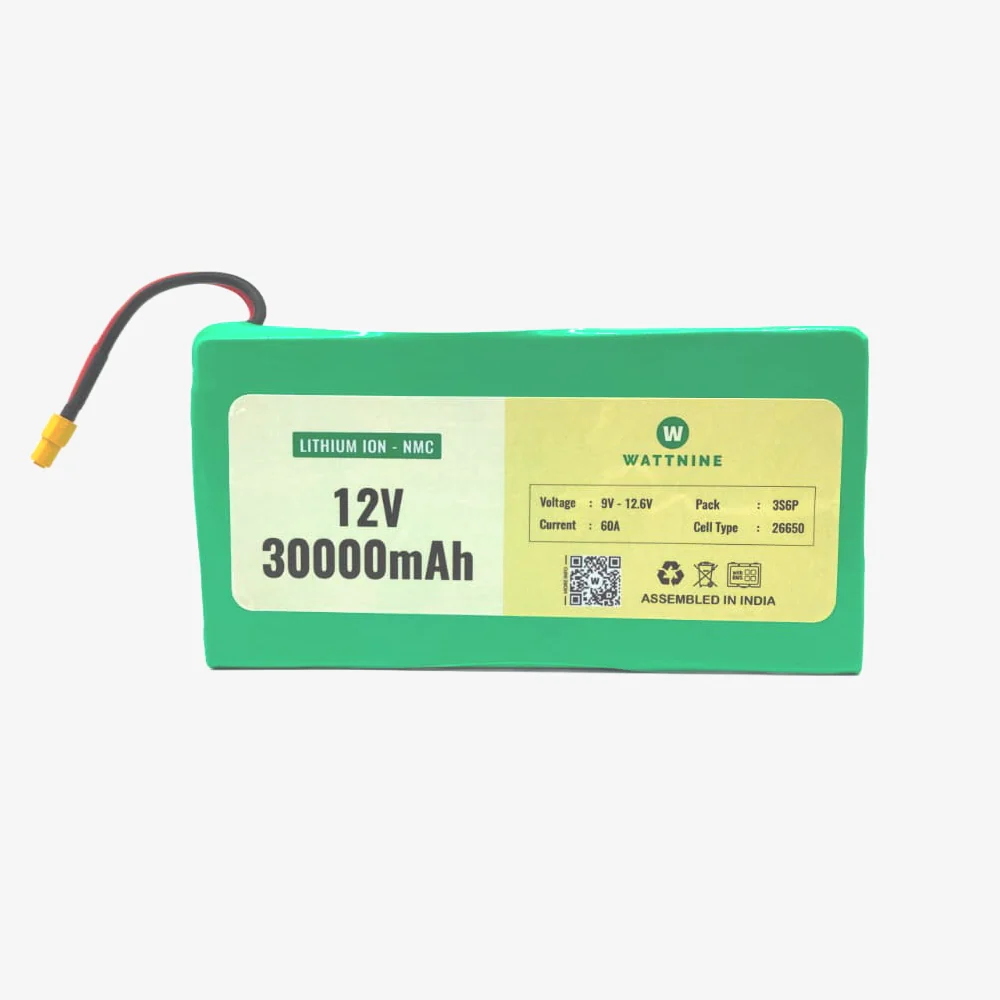

WATTNINE® 12V 30Ah Lithium Ion (NMC) Battery Pack with Warranty
The 12V 30AH rechargeable lithium-ion battery from WATTNINE is designed to provide high energy Density.
Features
- High energy density
- Equipped with Smart Battery Management System
- Long Cycle life
- Excellent Safety & Performance
Battery Specification:
|
Nominal Characteristics |
|
|
Nominal Voltage /V |
11.1V |
|
Nominal capacity /Ah (25°C, 0.5C) |
30AH |
|
Power |
360W |
|
Operating Voltage Range |
9V-12.6V |
|
|
|
|
Pack Characteristics |
|
|
Design |
3S6P |
|
Cell type / Chemistry |
26650/NMC |
|
|
|
|
Mechanical Characteristics |
|
|
Weight |
2KG |
|
Dimension (L*W*H) |
175x90x72 mm |
|

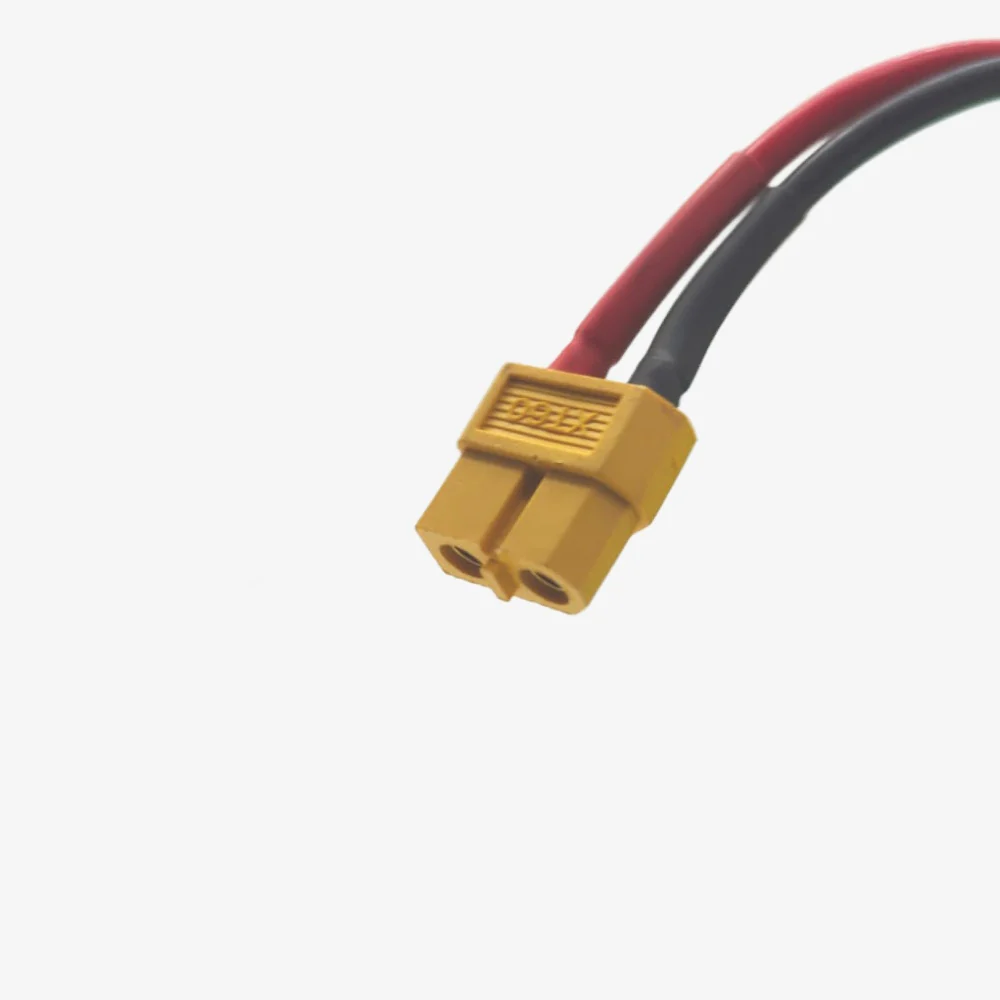

Charging Connector |
XT60 Female |
|
Discharging Connector |
XT60 Female |
|
|
|
|
Charging Characteristics |
|
|
Charge voltage |
12.6V |
|
Max. Continues Charge current |
15A |
|
Charging Duration |
120 Min |
|
|
|
|
Discharging Characteristics |
|
|
Max. Voltage |
12.6V |
|
Min. Voltage |
9V |
|
Nominal Continues Discharge current |
15A |
|
Max. Continues Discharge current |
30A |
BMS – Battery Management System:
|
Protection |
|
Range |
Units |
||
|
Over Charge |
Trigger voltage |
4.25 |
V |
||
|
Release voltage |
4.05 |
V |
|||
|
Delay Time |
80 |
Ms |
|||
|
|
|
|
|
|
|
|
Over Discharge |
Trigger voltage |
2.40 |
V |
||
|
Release voltage |
3.0 |
V |
|||
|
Delay Time |
40 |
ms |
|||
|
Over current |
Trigger Current |
41 |
A |
||
|
Delay Time |
150 |
ms |
|||
|
Balancing Function |
Yes |
||||
|
Short circuit |
Delay Time |
500 |
µs |
||
|
Manual reset |
Connect Power Source to Reset |
||||
|
Thermal protection |
High Temperature |
85 |
°C |
||
|
Low Temperature |
-40 |
°C |
|||
|
Continue output power |
|
504 |
W |
||
Warranty Terms:
This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
