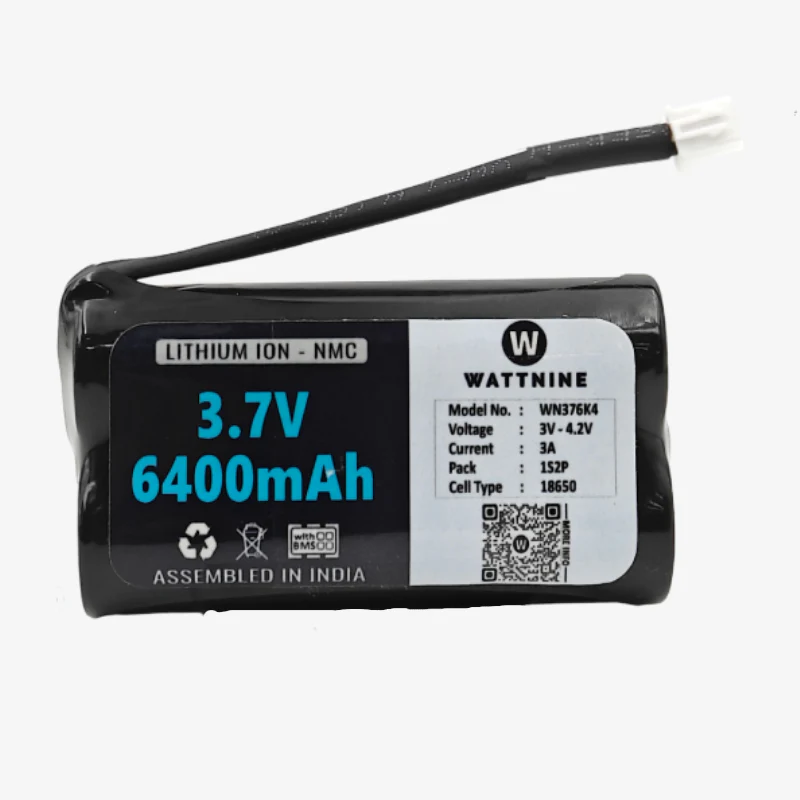

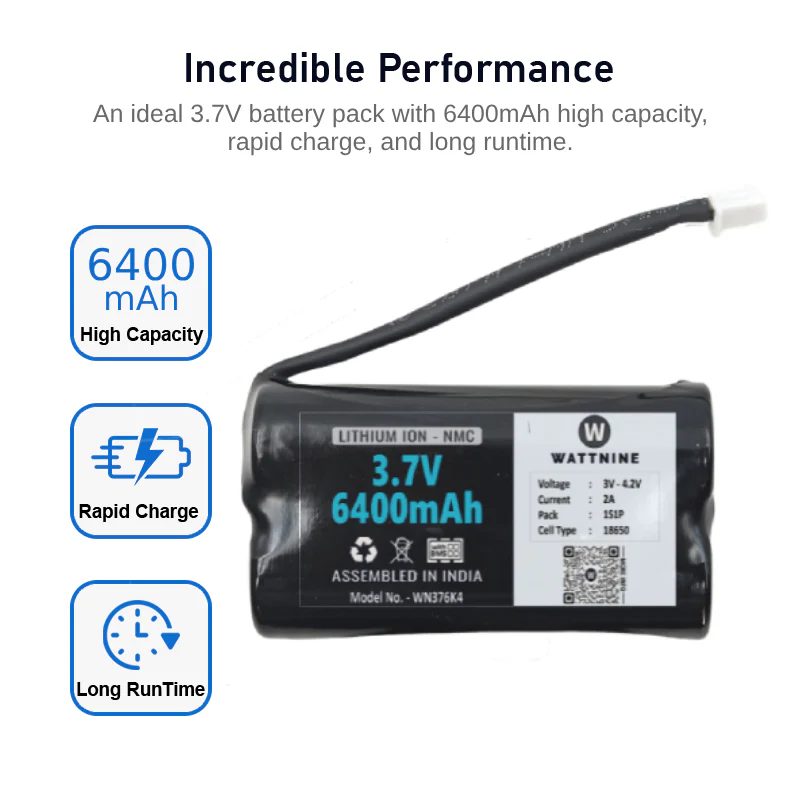

This Li-ion Rechargeable Battery Pack has a nominal voltage of 3.7V and is a 1S2P battery pack. This battery pack contains two high-capacity cells connected in a 1-series 2-parallel configuration, giving it a total capacity of 6400mAh (6.4Ah). The battery pack has a built-in Battery Management System (BMS) that protects it from overcharging, over-discharging, and short circuits.

Recommended Charger - Charging Time

4.2V 2A Lithium Battery Charger - 3.5Hr

Datasheet / Specification

Specifications of 3.7mAh 6400mAh Battery Pack :

1. Charging Voltage - 4.2V
2. Charging Current - 2A
3. Nominal Pack Voltage - 3.7V
4. Capacity - 6400mAh (6.4Ah)
5. Continuous Discharge Current - 3A
6. Peak Discharge Current - 6A

Protection (Included BMS) :

• Short Circuit Protection
• Overvoltage Cut-off - 4.25V
• Undervoltage Cut-off - 2.8V

Certifications & Warranty:

• BIS Approved: Yes
• BIS Registration Number: R-84005630
• Warranty: 1 Years

Applications:

• Small-Scale UPS Battery
• GPS Tracking - Vehicle Tracking - Asset Tracking
• WiFi Modem or Router Backup Battery
• CCTV Camera Backup
• PSP
• Industrial Machines
• Emergency Lights
• Solar Lights
• Robotics and RC Cars
• Music Players and Audio Systems

Warranty Terms:

This battery pack comes with a 1-year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
