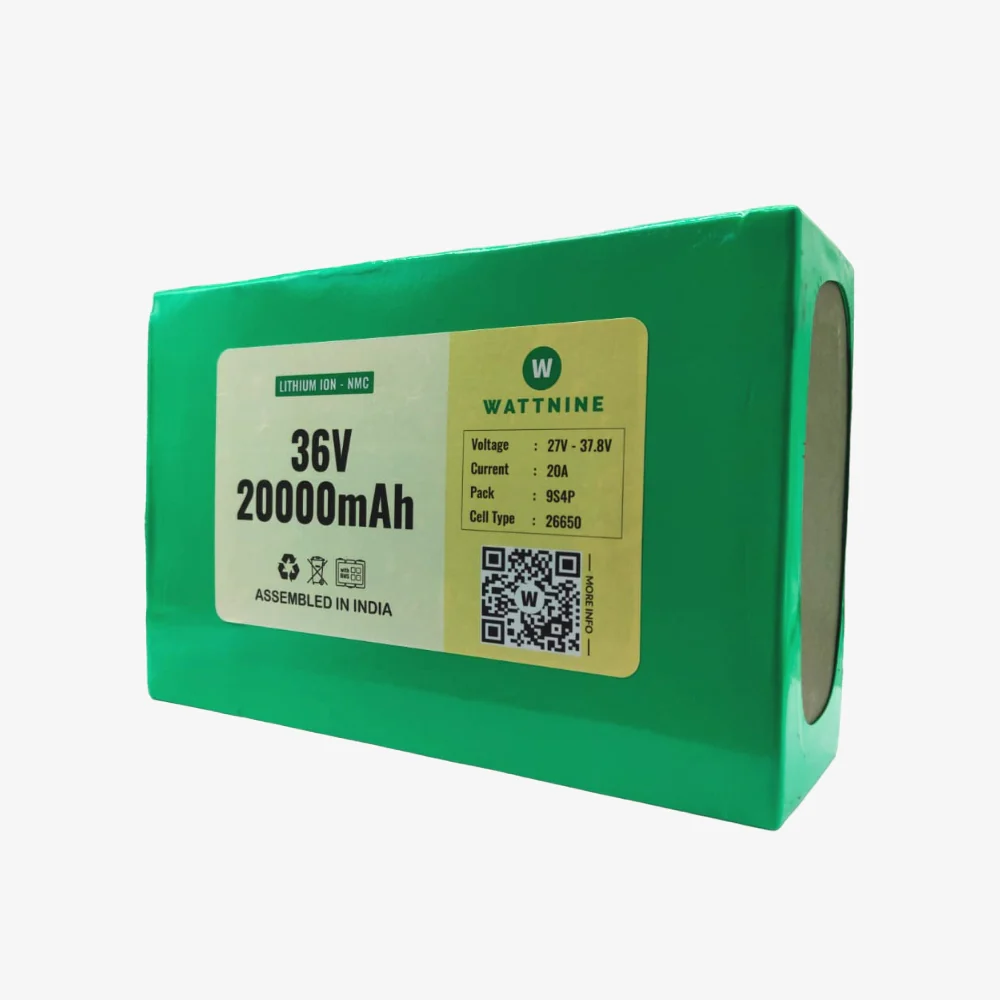

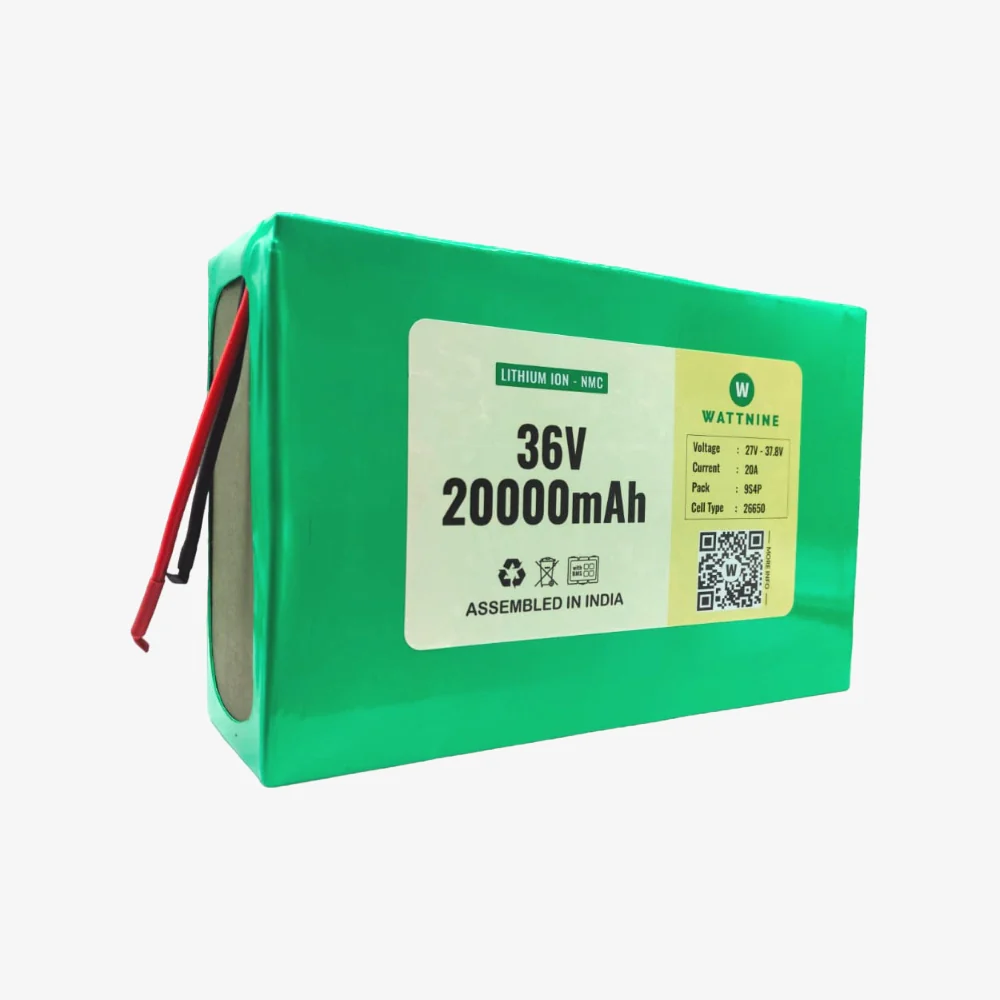

WATTNINE® 36V 20Ah Rechargeable Lithium Ion Battery Pack with 1 year Warranty
The 36V 20AH rechargeable lithium-ion battery from Wattnine is designed to provide high energy Density. Built-in BMS with Voltage, Temperature, Charge, Current and Short Circuit Protection Light weight and High Power Density—Half the weight of acid battery with twice the power density
Features
- High energy density
- Equipped with Smart Battery Management System
- Long Cycle life
- Excellent Safety & Performance
Battery Specification:
|
Nominal Characteristics |
|
|
Nominal Voltage /V |
36V |
|
Nominal capacity /Ah (25°C, 0.5C) |
20AH |
|
Power |
720W |
|
Operating Voltage Range |
30V-42V |
|
|
|
|
Pack Characteristics |
|
|
Design |
10S4P |
|
Cell type / Chemistry |
26650/NMC 3C |
|
|
|
|
Mechanical Characteristics |
|
|
Weight |
4.45KG |
|
Dimension (L*W*H) |
235*150*76 mm |
|
Charging Connector |
Customized |
|
Discharging Connector |
Customized |
|
|
|
|
Charging Characteristics |
|
|
Charge voltage |
42V |
|
Max. Continues Charge current |
10A |
|
Charging Duration |
120 Min |
|
|
|
|
Discharging Characteristics |
|
|
Max. Voltage |
42V |
|
Min. Voltage |
30V |
|
Nominal Continues Discharge current |
10A |
|
Max. Continues Discharge current |
20A |
BMS – Battery Management System:
|
Protection |
|
Range |
Units |
||
|
Over Charge |
Trigger voltage |
4.25 |
V |
||
|
Release voltage |
4.15 |
V |
|||
|
Delay Time |
1000 |
Ms |
|||
|
|
|
|
|
|
|
|
Over Discharge |
Trigger voltage |
2.70 |
V |
||
|
Release voltage |
3.0 |
V |
|||
|
Delay Time |
1000 |
ms |
|||
|
Over current |
Trigger Current |
21 |
A |
||
|
Delay Time |
200 |
ms |
|||
|
Balancing Function |
Yes |
||||
|
Short circuit |
Delay Time |
200-500 |
µs |
||
|
Manual reset |
Off Load |
||||
|
Thermal protection |
High Temperature |
70 |
°C |
||
|
Low Temperature |
-20 |
°C |
|||
Warranty Terms:
This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
