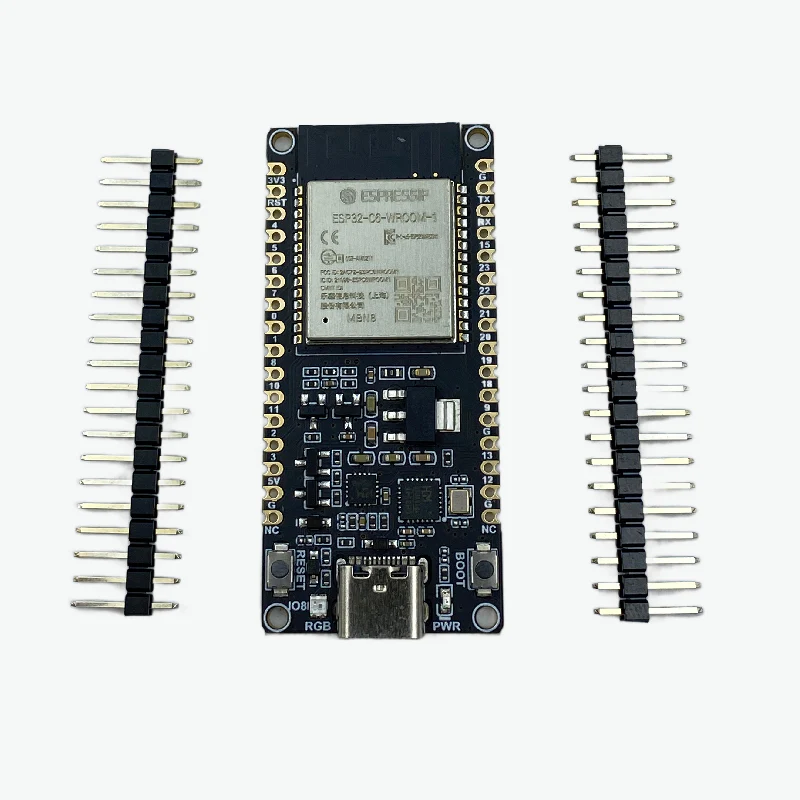

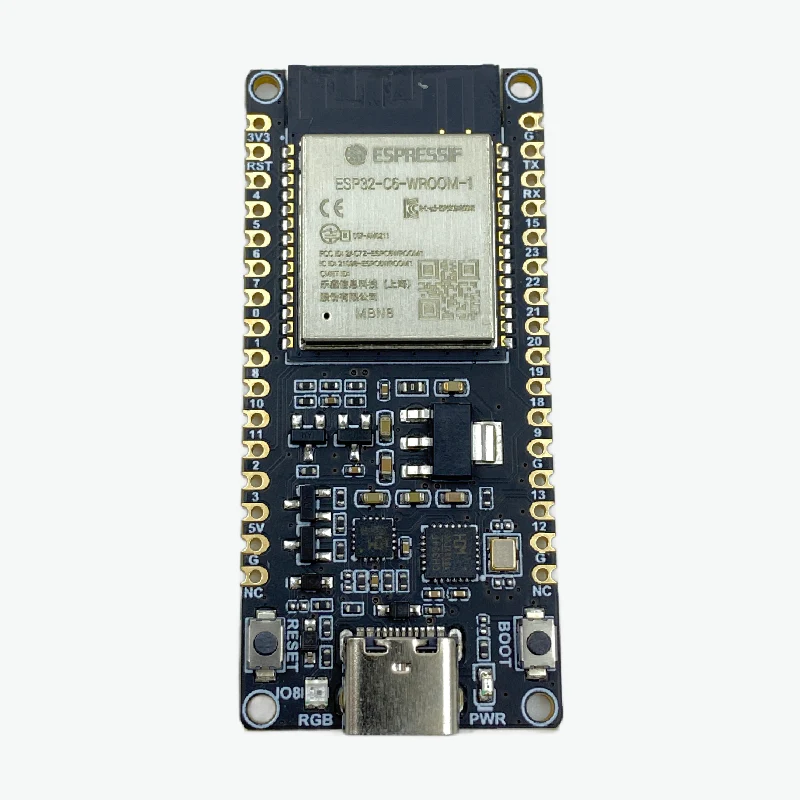

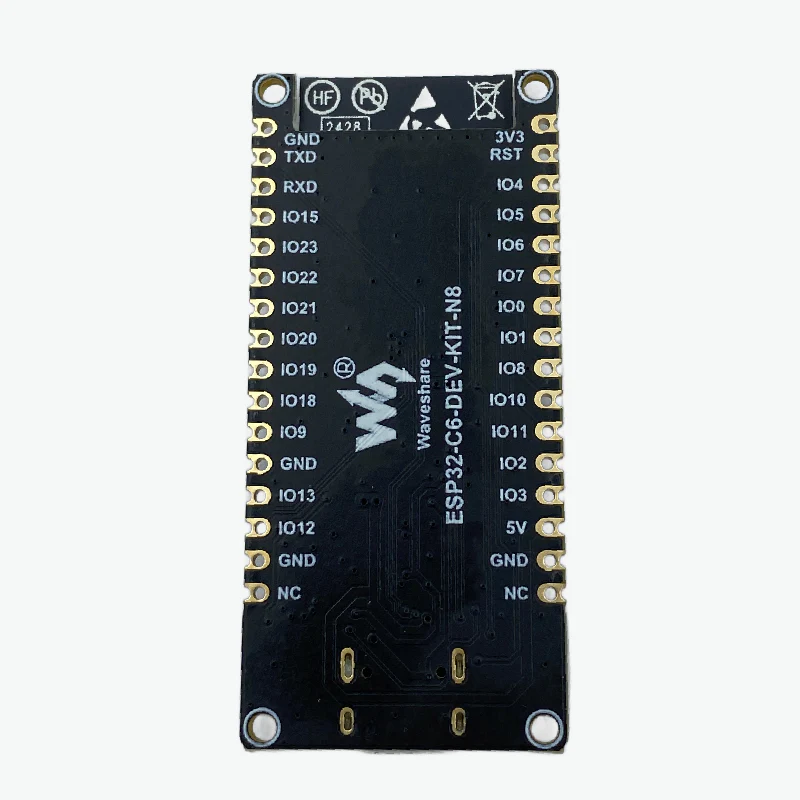

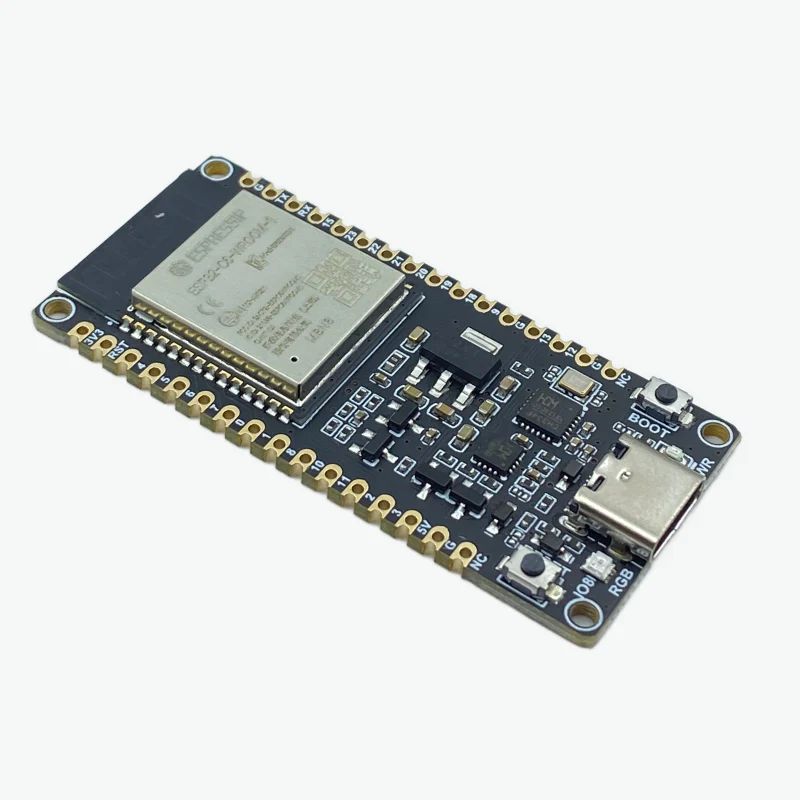

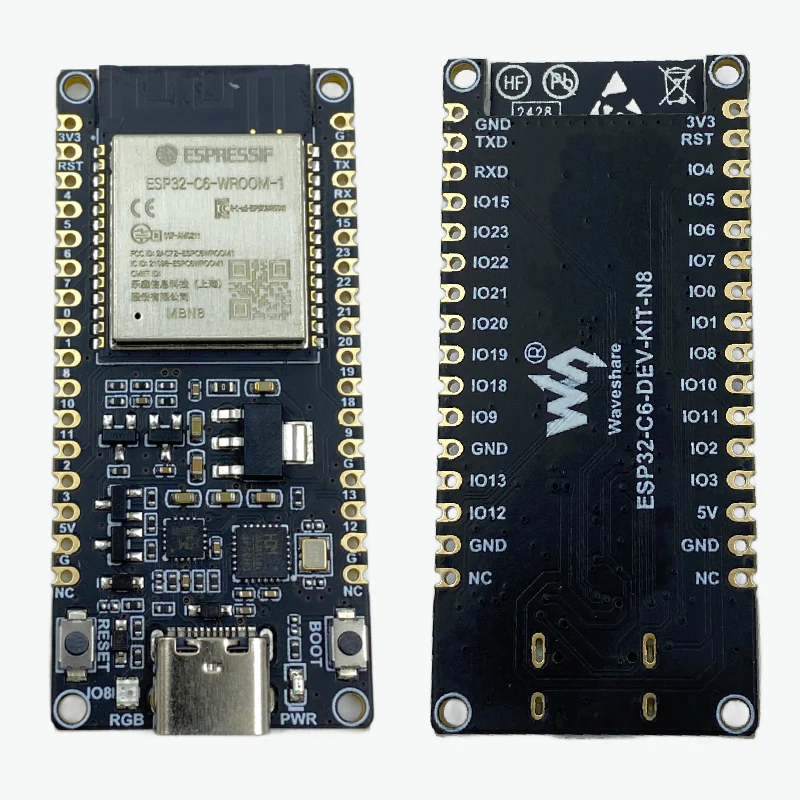

Waveshare ESP32-C6-WROOM-1-N8 Microcontroller WiFi 6 Development Board with Header Pins This is an entry-level yet powerful RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 & Thread). It is compact in size and designed for high-performance IoT applications with low power consumption. Built on the ESP32-C6-WROOM-1-NX series module, it features a 32-bit RISC-V single-core processor running up to 160MHz with 8MB Flash memory. The board includes multiple peripheral interfaces and onboard USB support, making it ideal for smart home, industrial automation, healthcare, and consumer electronics projects.

Waveshare ESP32-C6-WROOM-1-N8 DATASHEET

Features:

1. Based on ESP32-C6-WROOM-1-NX Series Module
2. RISC-V 32-bit Single-Core Processor up to 160MHz
3. Built-in 8MB Flash Memory
4. Supports WiFi 6, Bluetooth 5, Zigbee 3.0 & Thread
5. Onboard CH343 USB to UART Chip
6. Onboard CH334 USB HUB Chip
7. USB Type-C Interface for Power and Programming
8. Supports USB and UART Development Simultaneously
9. Rich Interfaces: SPI, UART, I2C, I2S, PWM, SDIO
10. Compatible with ESP32-C6-DevKitC-1 Pinout
11. Castellated Module Design for Direct Soldering
12. Compact and High-Performance Design

Specifications:

• Chipset: ESP32-C6
• Processor: 32-bit RISC-V Single-Core
• Clock Speed: Up to 160MHz
• Flash Memory: 8MB
• Wireless Connectivity: WiFi 6, Bluetooth 5, IEEE 802.15.4
• USB Interface: USB Type-C
• USB Chips: CH343, CH334
• Communication Interfaces: SPI, UART, I2C, I2S, PWM, SDIO
• Operating Voltage: 3.3V
• Operating Temperature: As per manufacturer specification

Package Includes:

1 x Waveshare ESP32-C6-WROOM-1-N8 Microcontroller WiFi 6 Development Board with Header Pins
