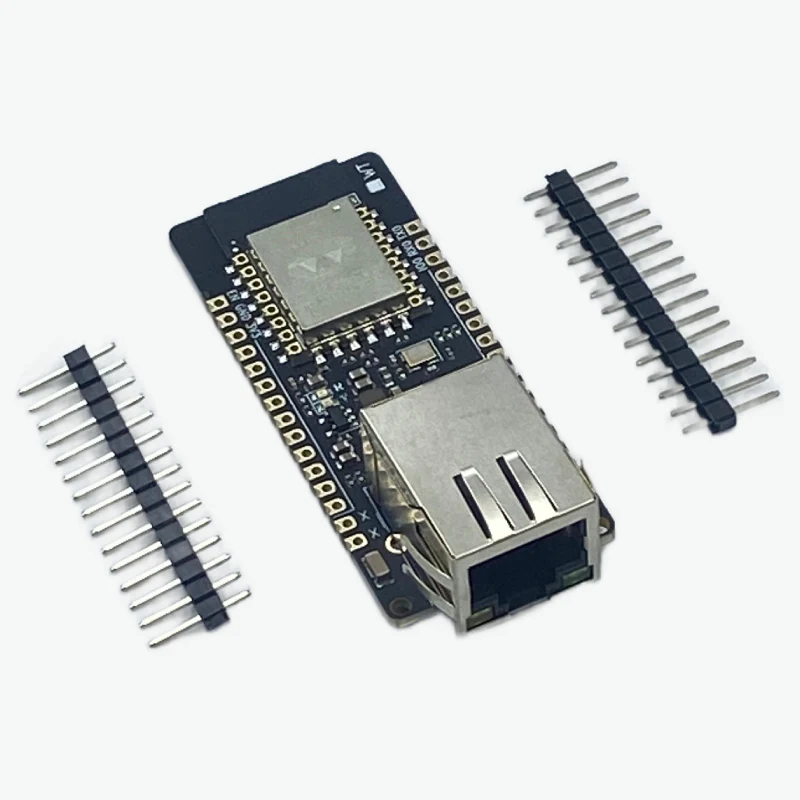

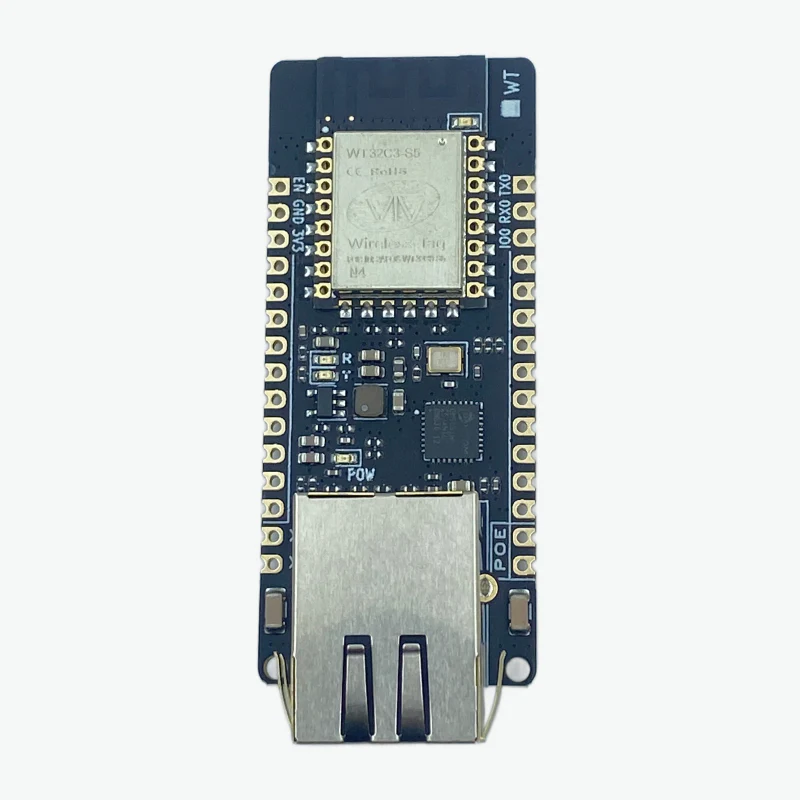

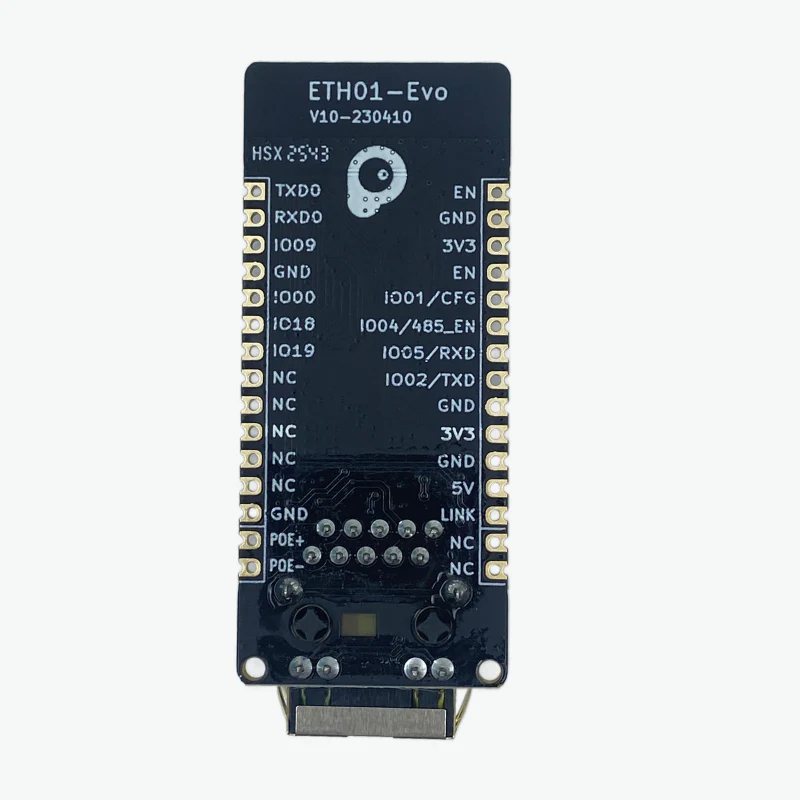

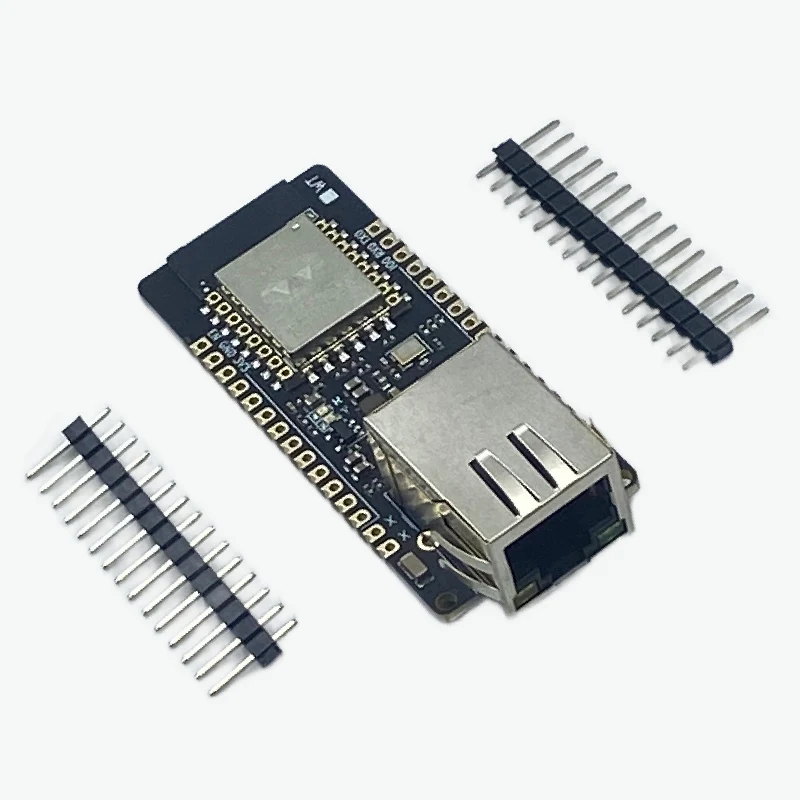

This Wireless-Tag WT32-ETH01 EVO is a compact ESP32-based Ethernet development board with built-in LAN8720 PHY for reliable wired and wireless connectivity. Ideal for IoT, industrial automation, and network-enabled embedded systems.

Features:

1. Based on ESP32 Microcontroller
2. Integrated LAN8720 Ethernet PHY
3. Supports WiFi and Ethernet Connectivity
4. Dual-Core Processor for High Performance
5. Supports SPI, UART, I2C, PWM Interfaces
6. Compact and Development-Friendly Design
7. Low Power Consumption
8. Easy Integration for IoT Projects

Specifications:

Parameter	Value
Module	WT32-ETH01 EVO
Microcontroller	ESP32
Ethernet PHY	LAN8720
WiFi	802.11 b/g/n
Operating Voltage	5V
Flash Memory	4MB
SRAM	520KB
Interface	SPI, UART, I2C, PWM
Ethernet Interface	RJ45
Processor	Dual-Core Xtensa LX6
Clock Speed	Up to 240MHz
Operating Temperature Range	-40°C to +85°C

Package Includes:

1 x WT32-ETH01 EVO Wireless-Tag Development Board
